Huawei iSitePower-M Quick Guide

17

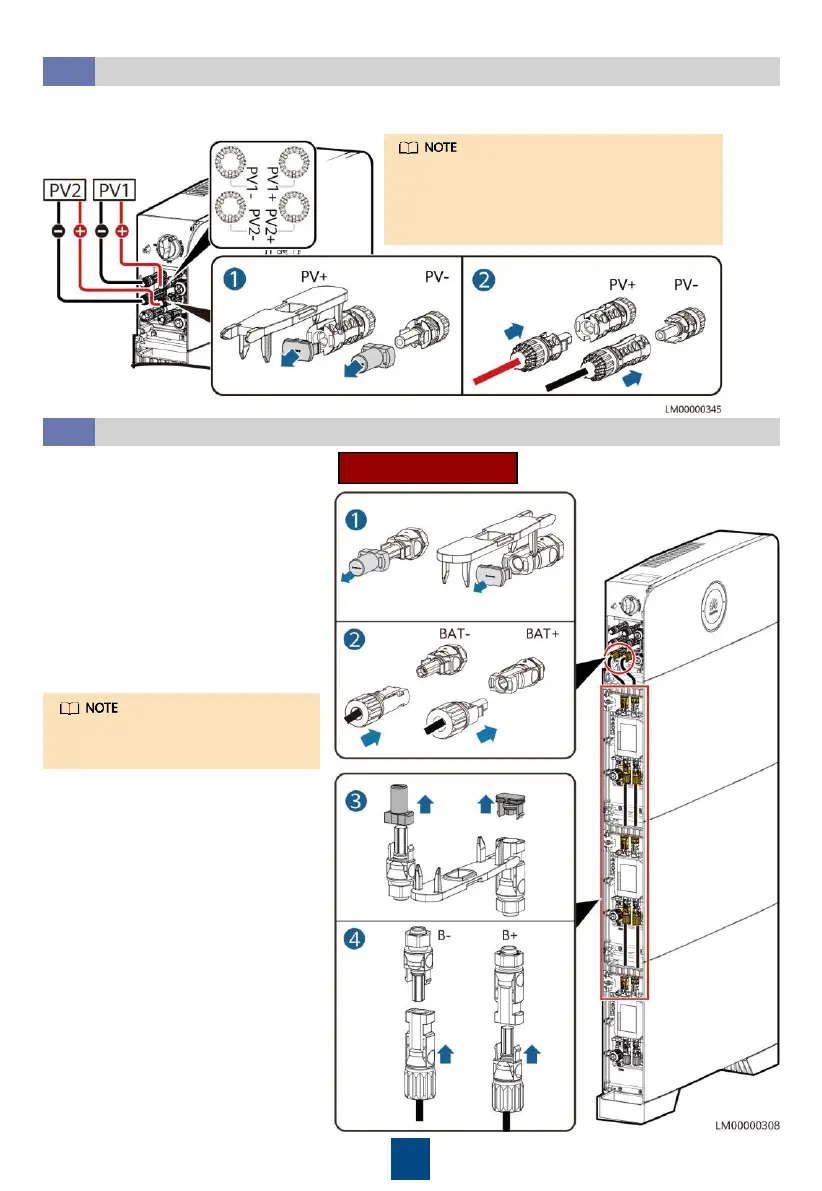

Installing PV Input Power Cables
6.4
•
Take the disassembly wrench out of
the decorative cover.
•
Prepare cable terminals by referring to
the appendix.
1. Use a wrench to remove the waterproof gland from the PV input terminal on the power module.
2. Install the PV input power cables.
Installing Battery Module Power Cables
6.5
Standard Scenario
1. Use a wrench to remove the
waterproof glands from the
cascading terminals of the
battery modules.
2. Install power cables for the
battery modules.
3. Use a wrench to remove the
waterproof gland from the
power module.
4. Install power cables between
the battery module and power
module.
Take the disassembly wrench out
of the decorative cover.

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
