Huawei OptiX OSN 8800 User Manual

OptiX OSN 8800/6800/3800
Hardware Description
4 OptiX OSN 8800 Subrack
Issue 01 (2016-03-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
26

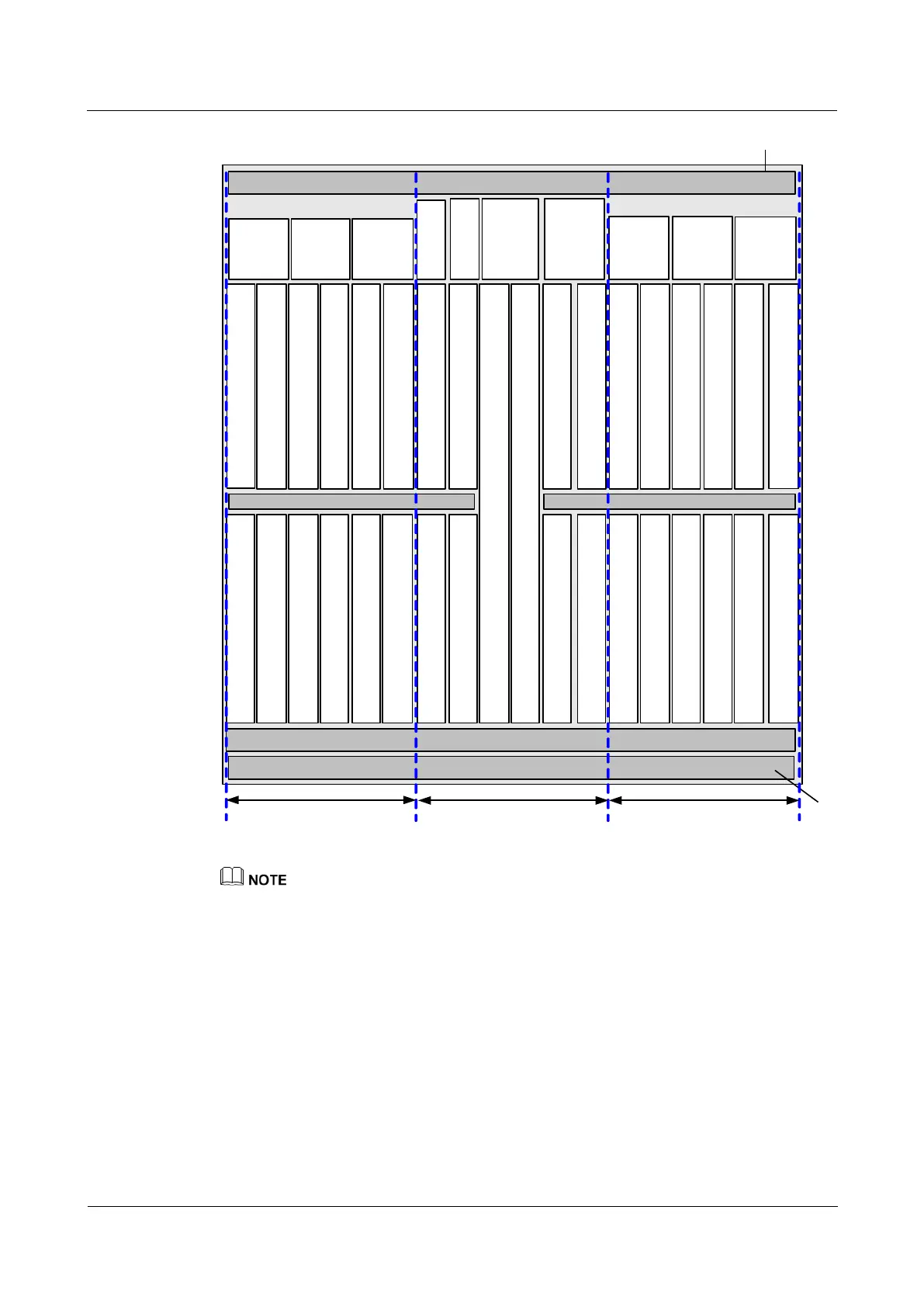

IU35 IU36 IU37 IU38 IU39 IU40 IU41 IU42
IU43
IU44
IU45
IU53 IU54 IU55 IU56 IU57 IU58 IU59 IU60 IU61
IU82IU81IU80
IU83
IU86
IU84 IU85
IU50
FAN7
FAN8
FAN10 FAN11
IU92
IU93
IU46 IU47 IU48 IU49 IU50 IU51
IU62 IU63 IU64 IU65 IU66 IU67 IU68
IU52
IU87 IU89IU88
FAN9
FAN12
Back
Partition 4
Partition 5 Partition 6

If any one of the six fans in the two fan tray assemblies fails, the system can remain operational for a
short term in environments where temperatures range between 0°C to 40°C (32°F to 104°F). To
ensure long-term operation of the system, replace the fan tray assembly in a timely manner.
Short-term operation means that the continuous operating time does not exceed 96 hours and the
accumulated time per year does not exceed 15 days.

Replace the fan tray assembly in either of the following two situations:

Two or more fans fail in one of the two fan tray assemblies.

One or more fans fail in each of the two fan tray assemblies.

In a system that is operating normally, the two fans in the same section (such as FAN1 and FAN4)
run at the same speed.
The fan tray assembly consists of fans and fan control board. Figure 4-9 shows the functional
blocks of the fan tray assembly.
