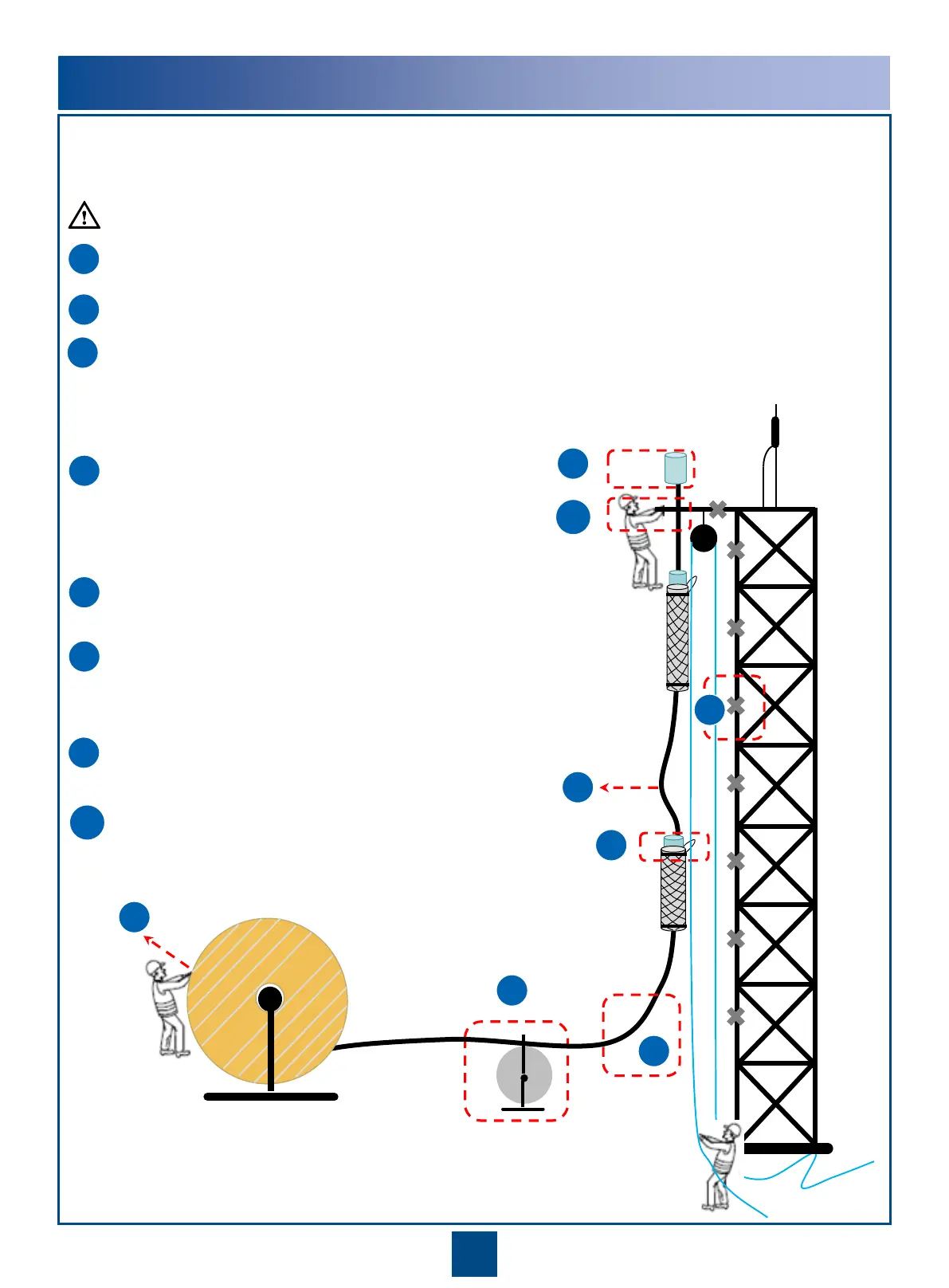

Hoisting an Elliptical Waveguide
Control the rotating speed of the drum when hoisting the elliptical
waveguide.
5
4
When pulling the elliptical waveguide, prevent the friction of the
waveguide against the ground by using a pulley to support the
waveguide or by spreading a plastic cushion on the ground.
6
After hoisting the elliptical waveguide to the installation position,
use a string to fasten the waveguide.
When hoisting the elliptical waveguide, do not stretch it tightly and
keep it loose.
7
•When hoisting the elliptical waveguide, wrap its connector with
cloth or fur.
•When hoisting the elliptical waveguide, avoid damage to the
elliptical waveguide connector from striking any other objects.
1
2
•Use strings to tie the two ends of each hoisting grip.
•Wrap the force-bearing parts of hoist grips with cloth or fur for
protection.
•Do not remove hoisting grips before clamps are installed.
Bend the E plane of the elliptical waveguide.
3
CAUTION
8
5
4
6
7
2
3
8
1
Install elliptic waveguide clamps in advance. After laying out the
elliptical waveguide, fasten it using the clamps.
