Huawei OptiXRTN 980L - Antenna Alignment: Single-Polarized; Aligning Single-Polarized Antennas

52
Level adjustment screw
Elevation adjustment
screw
•In the non-SD scenario, during antenna alignment, the RSSI cable must connect to a multimeter through the connector with the
label of Main.
•In the SD scenario, during alignment of the main antennas, the RSSI cable must connect to a multimeter through the connector
with the label of Main. During the alignment of SD antennas, the RSSI cable must connect to a multimeter through the
connector with the label of SD.
Cap the RSSI port after the test.
Aligning Antennas
1
Aligning Single-Polarized Antennas

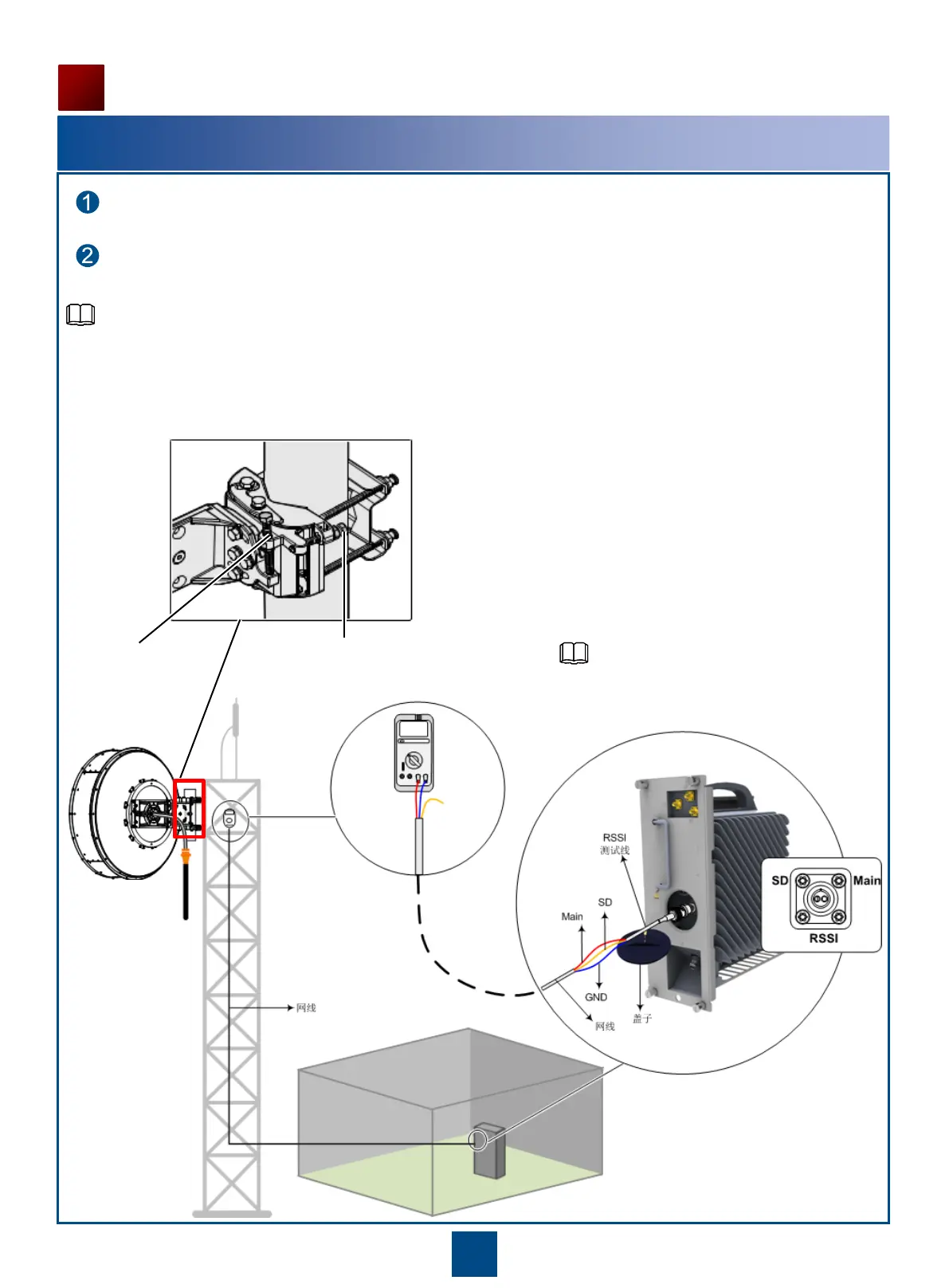

Determine the azimuth of the antenna according to the installation position and height of the antenna. Adjust the
elevation of the antenna to the horizontal position.
Connect a multimeter to the RSSI port on the RFU/ODU at the local end and measure the voltage value V
BNC
.
NOTE
NOTE
