Huawei OptiXRTN 980L - Elliptical Waveguide Grounding; Ground Points Identification

Cabinet
Dehydrator
Flexible
waveguide
Cable tray
Wall through
plate
Antenna
4

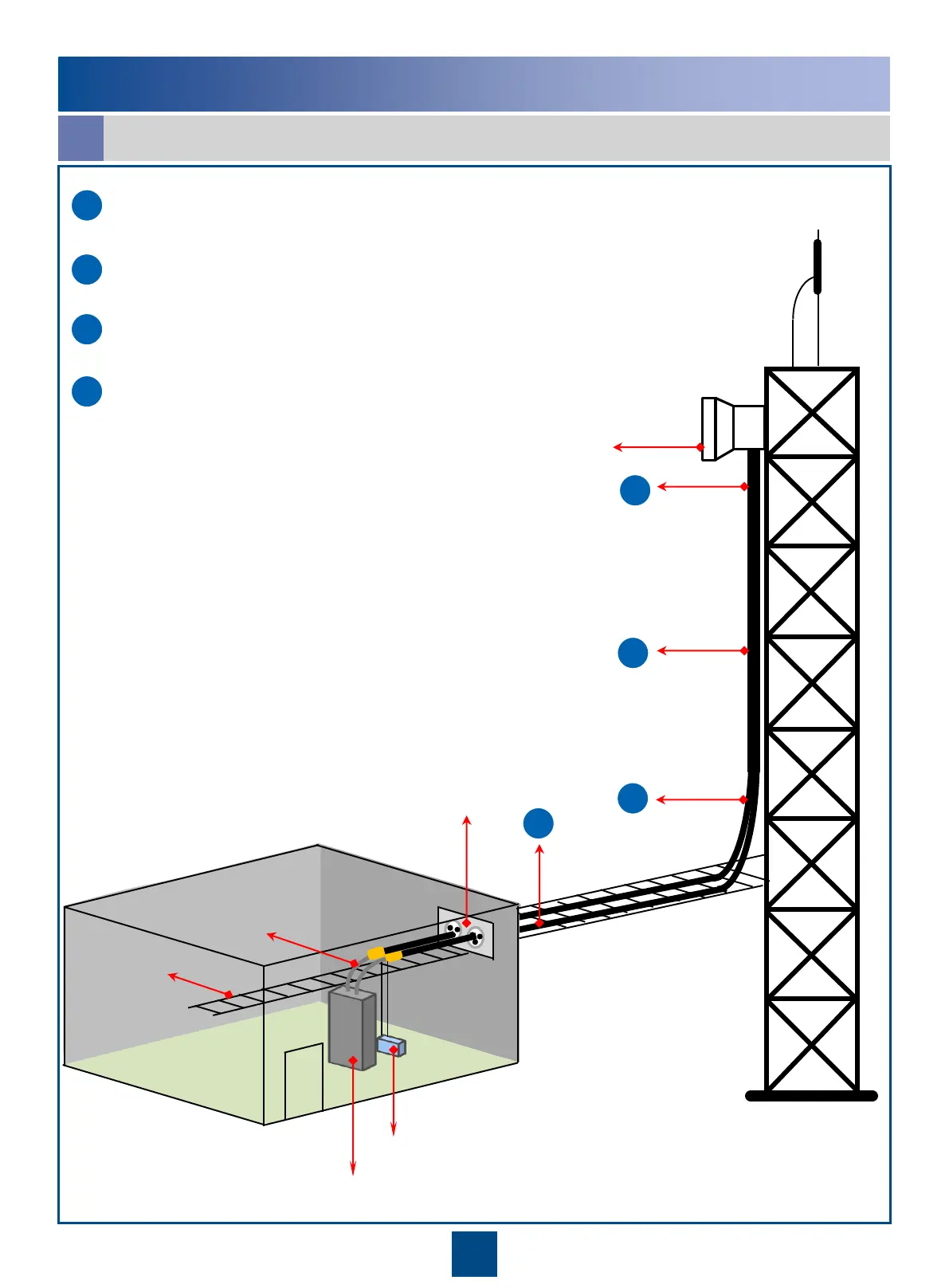

Grounding an Elliptical Waveguide
1
2
3
About 1 m ( 3.28 ft ) away from the antenna-side connector
1
Ground Points for an Elliptical Waveguide
a
2
About 1 m ( 3.28 ft ) before the elliptical waveguide leaves the tower and runs toward the outdoor cable tray
0.5 m to 1 m ( 1.64 ft to 3.28 ft ) before the elliptical waveguide is routed indoors
3
4
Middle of the elliptical waveguide section in the vertical direction if this section is longer
than 60 m ( 197 ft )
4
