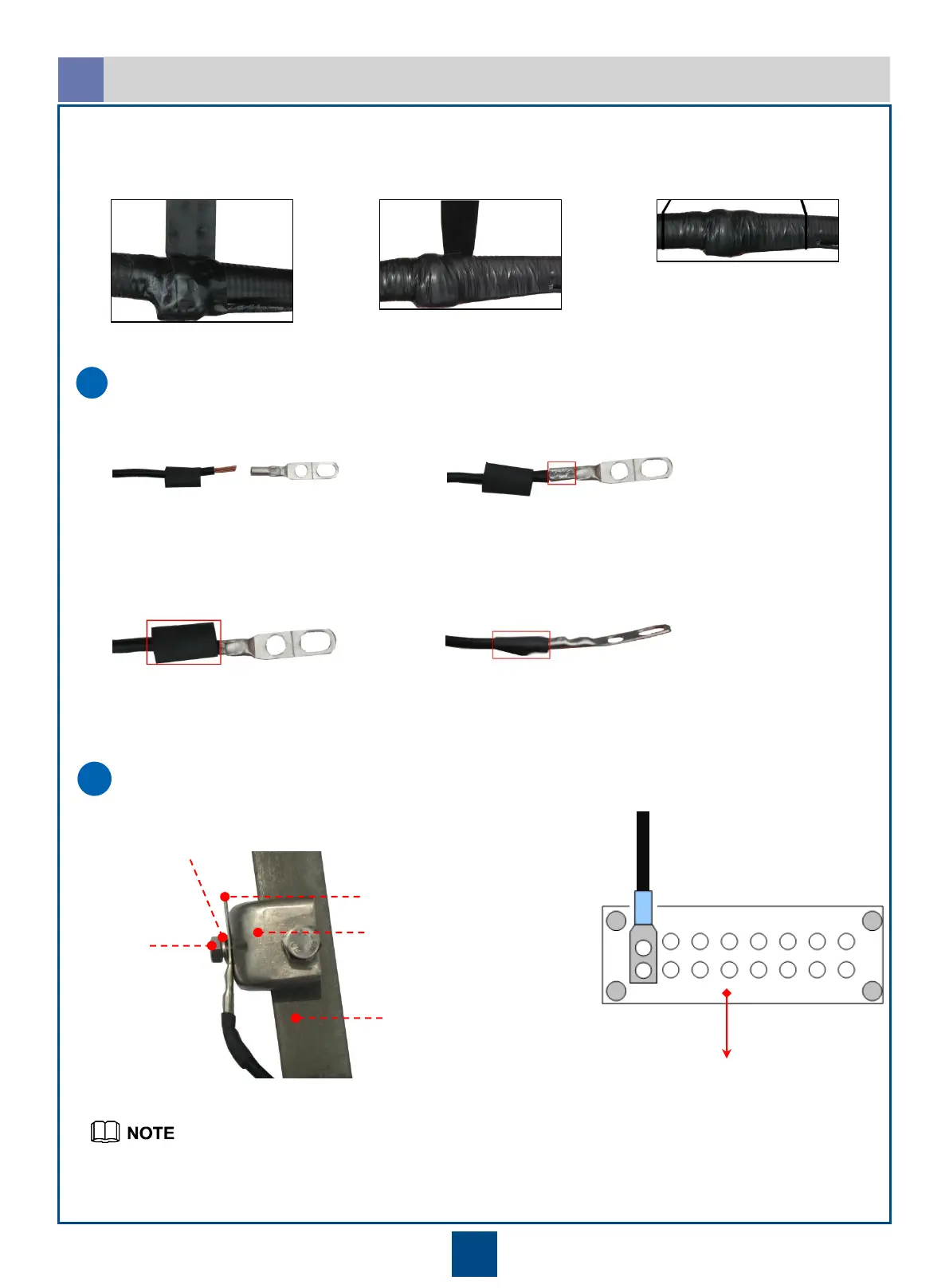

Huawei OptiXRTN 980L - Elliptical Waveguide Grounding: Clip Installation (Part 2); Installing Ground Clips (2;2)

b. Wrap three layers of waterproof tape. c. Wrap three layers of PVC tape. d. Use the outdoor bundling strap to
bind the PVC tape tight at both ends.
Assemble a connector connected to the ground bar.
5
a. Insert the ground copper wires
into the OT terminal.
b. Use pliers to compress the copper wires tightly.
c. Install a heat shrink tubing onto
the joint between the OT terminal
and ground cable.
d. Heat around the heat shrink tubing so that it wraps the
OT terminal and ground cable tightly.
6
Connect the ground cable to the ground point.
•After connect the ground cable to the ground point, apply anti-rust lubricant to the ground point.
•The U-shaped clip used for grounding is the same as the fixture U-shaped clip.
Nut
Washer
OT terminal
Ground point
U-shaped clip
46
Installing Ground Clips (2/2)
b
Ground bar
