Huawei Quidway S5600 Series Installation Manual

Installation Manual
Quidway S5600 Series Ethernet Switches Chapter 1
Product Overview
Huawei Technologies Proprietary
1-15
1000Base-TX
Pin
Signal Function
6 MX_1- Data transmit/receive
7 MX_3+ Data transmit/receive
8 MX_3- Data transmit/receive
II. 2-port 10 Gbps XFP module
(1) Module power LED (2) Port status LEDs (3) 10 Gbps XFP optical ports

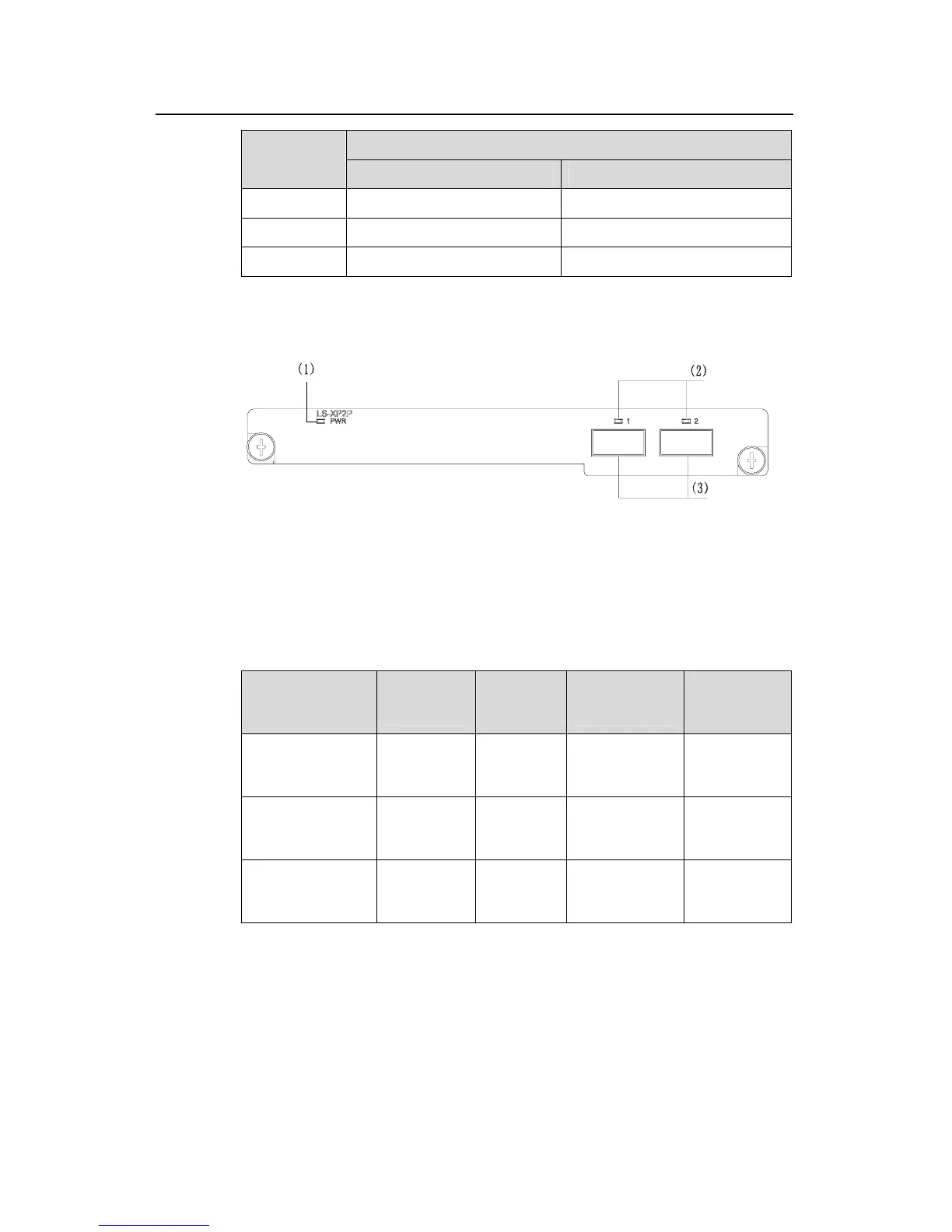

Figure 1-6 2-port 10 Gbps XFP module
This module provides two 10 Gbps XFP optical ports. The following table lists the
available XFP modules that you can select according to your needs.
Table 1-9 XFP optical port module
XFP module
Central
wavelength
Connector
Fiber
specification
Maximum
transmission
distance
10GBase-SR-XFP 850nm LC
9/125 µm
multi-mode
fiber
300m (984.2
ft)
10GBase-LR-XFP 1310 nm LC
9/125 µm
single-mode
fiber
10 km (6.2 mi)
10GBase-ER-XFP 1550 nm LC
9/125 µm
single-mode
fiber
40 km (24.9
mi)
