 Note:
The switch does not support the 10GBase-ER-XFP module with -5.2 V power supply.
The type of 10 Gbps XFP module may be different from those listed above. For the
accurate information about the module type, please consult market personnel or
technical support personnel of Huawei.
III. 1-port 10 Gbps XENPAK module
(1) Module power LED (2) Port status LED
(3) 10 Gbps XENPAK optical/electrical port

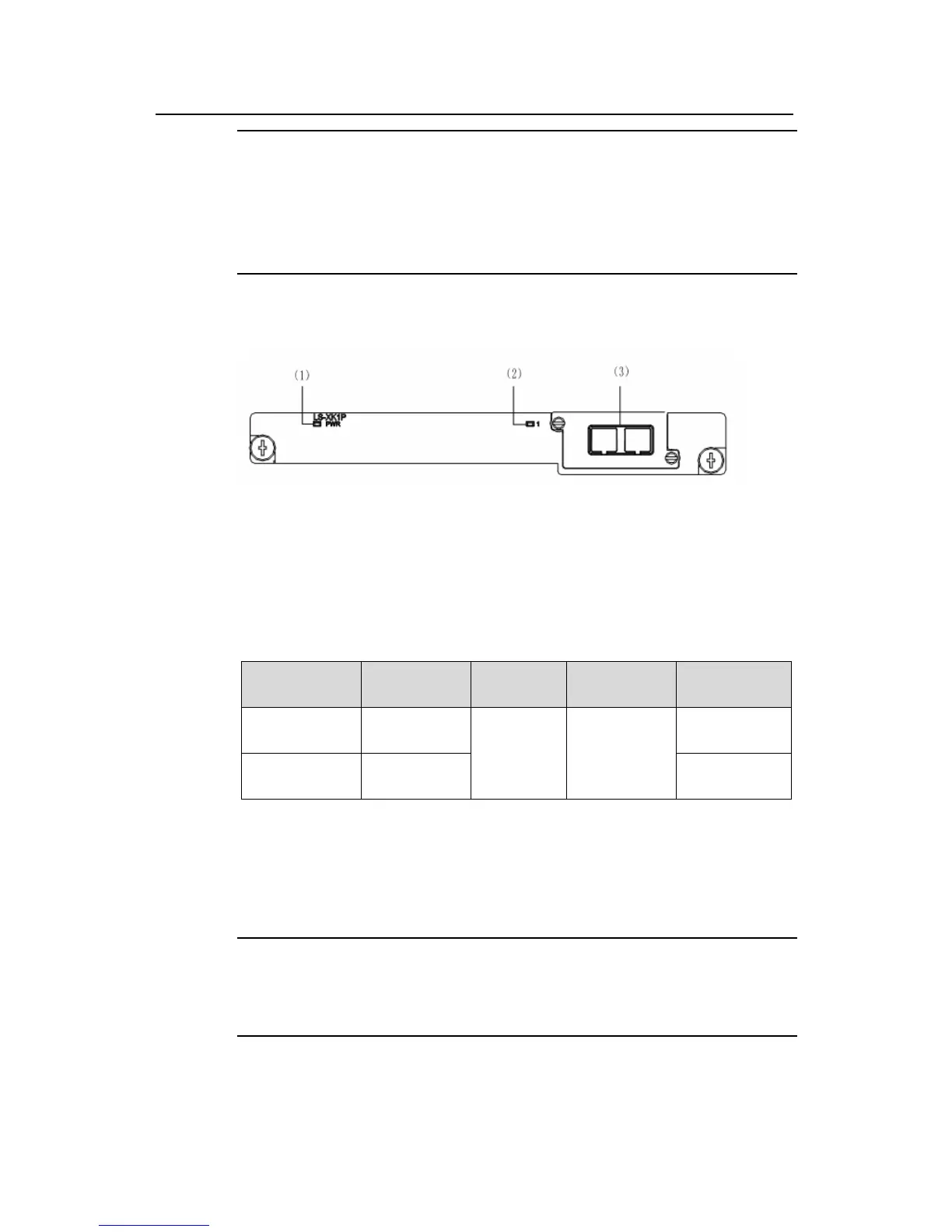

Figure 1-7 1-port 10 Gbps XENPAK module
z This module can provide one 10 Gbps XENPAK optical port. The following table
lists the available XENPAK modules.
Table 1-10 XK1 optical port module
Port type
Central
wavelength
Connector
Fiber
specification
Transmission
distance
10GBASE-LR-
XENPAK
1310 nm 10 km (6.2 mi)
10GBASE-ER-
XENPAK
1550 nm
SC
Single-mode
fiber
40 km (24.9 mi)
z This module can also provide a 10 Gbps electrical port. For the electrical port, you
must select the CX4 connector and the InfiniBand cable with the transmission
distance of 15 m (49.2 ft).
 Note:
Use the CX4 modules or the XENPAK optic port modules that Huawei-3Com
Technology provides or recommends.
