II. 2-port 10 Gbps XFP module
(1) Module power LED (2) Port status LEDs (3) 10 Gbps XFP optical ports

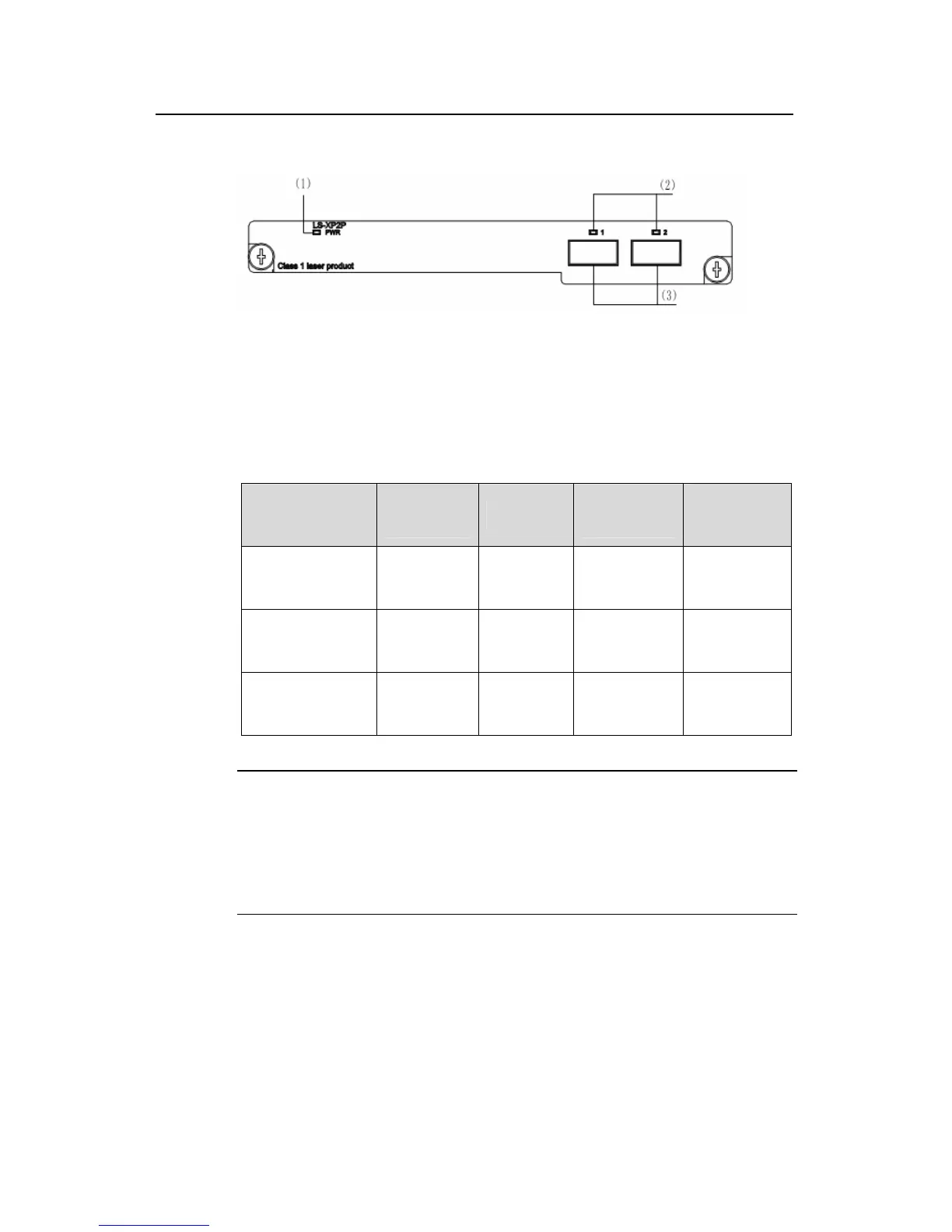

Figure 1-12 2-port 10 Gbps XFP module
This module provide two 10 Gbps XFP optical port. The following table lists the
available XFP optical modules that you can select according to your needs:
Table 1-13 XFP optical port module
XFP module
Central
wavelength
Connector
Fiber
specification
Maximum
transmission
distance
10GBase-SR-XFP 850nm LC
9/125 µm
multi-mode
fiber
300m (984.2
ft)
10GBase-LR-XFP 1310 nm LC
9/125 µm
single-mode
fiber
10 km (6.2 mi)
10GBase-ER-XFP 1550 nm LC
9/125 µm
single-mode
fiber
40 km (24.9
mi)
 Note:
The switch does not support the 10GBase-ER-XFP module with -5.2 V power supply.
The type of 10 Gbps XFP module may be different from those listed above. For the
accurate information about the module type, please consult market personnel or
technical support personnel of Huawei.
