Installation Manual
Quidway S5600 Series Ethernet Switches Chapter 5
Loading Boot ROM and Host Software
Huawei Technologies Proprietary
5-6
If you want to exit, Press <Ctrl+X>.
Loading ...CCCCCCCCCC
Step 8: Select [Transfer/Send File] in the HyperTerminal’s window, and in the popup
dialog box similar to the following figure click <Browse>, select the software you need
to download, and set the protocol to XModem.

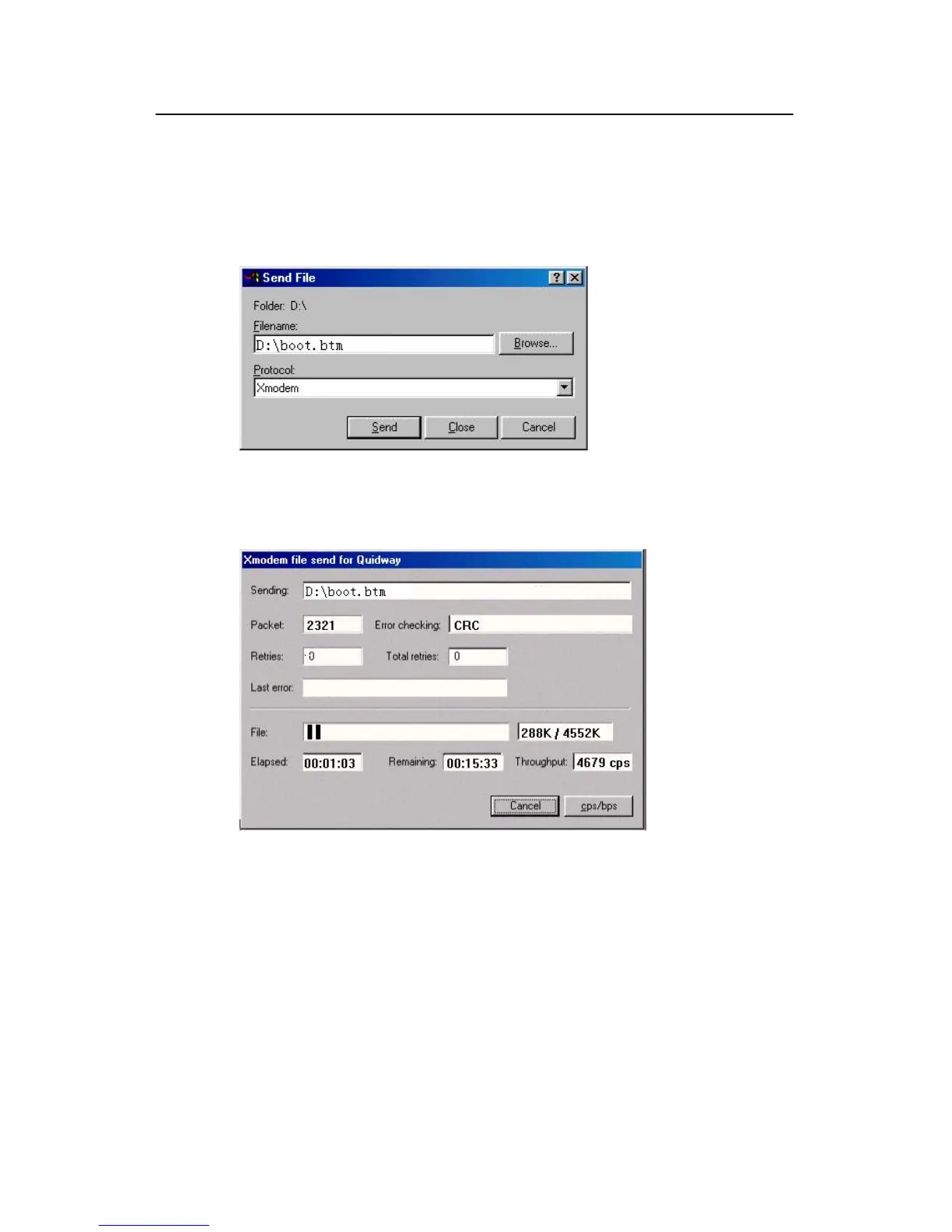

Figure 5-4 Send File dialog box
Step 9: Click <Send>. The system displays the following interface.
Figure 5-5 Sending File interface
Step 10: After completing loading, the system displays the following information:
Loading ...CCCCCCCCCC done!
## Total Size = 0x00055d40 = 351552 Bytes
Your baudrate should be set to 9600 bps again!
Press enter key when ready.
