6.1 Mounting Kits for an RRU
This section describes the bracket assembly and the attachment plate for an RRU.

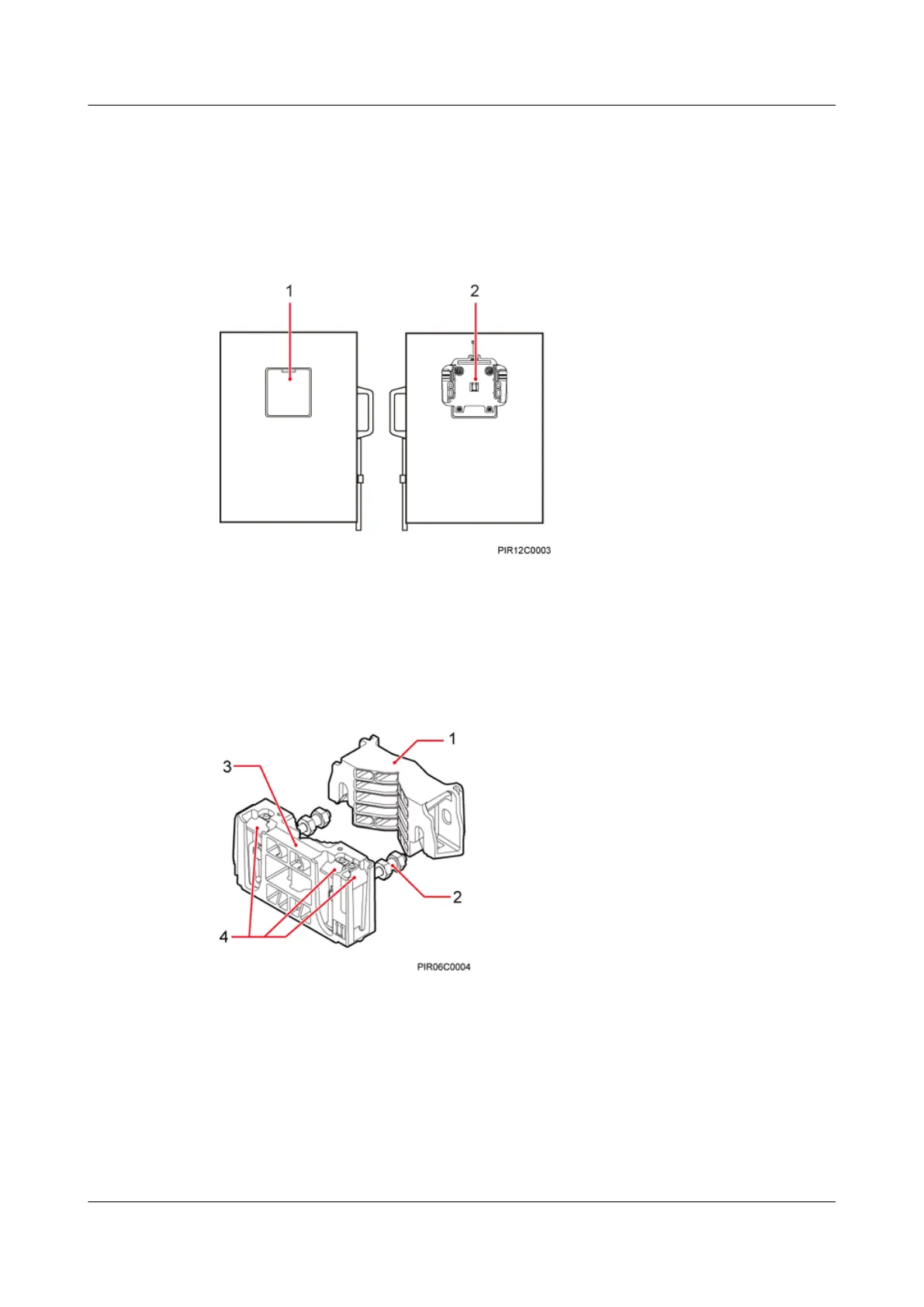

Figure 6-1 Front and rear view of an RRU
(1) Cover plate (2) Attachment plate
Figure 6-2 shows the bracket assembly for an RRU.
Figure 6-2 Bracket assembly for an RRU
(1) Auxiliary mounting
bracket
(2) Dual-nut bolt assembly (3) Main mounting bracket (4) Hoist clamp on the
main mounting bracket
6.2 Installing the RRU on a Pole
One or more RRUs can be installed on a pole.
