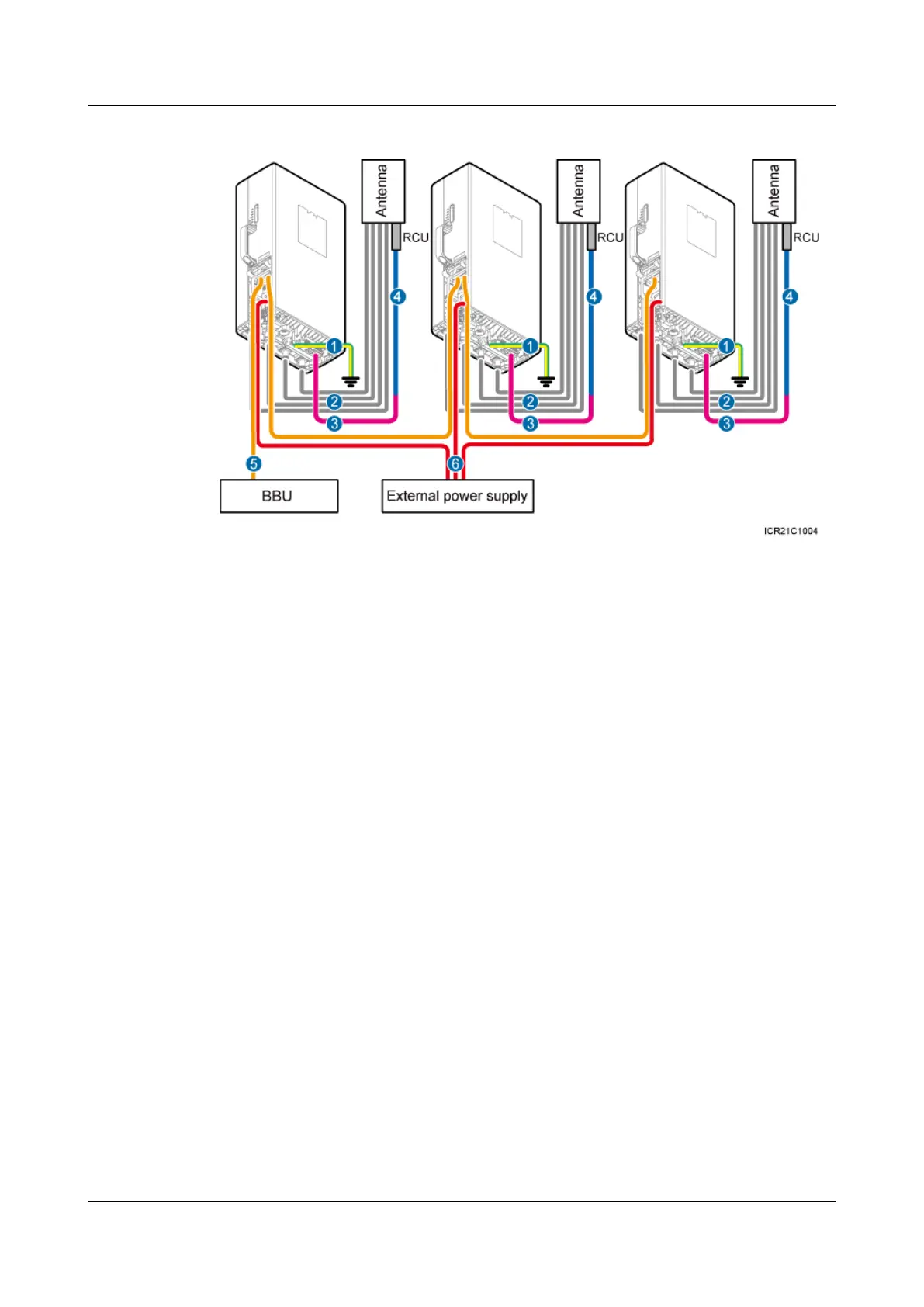

Figure 7-4 Cable connections for multiple RRUs
(1) PGND cable (2) RRU RF jumper (3) RRU AISG multi-wire cable
(4) RRU AISG extension cable (5) CPRI fiber optic cable/SFP high-speed
cable for cascaded RRUs
(6) RRU power cable
7.3 Installation Process
This section describes the process of installing RRU cables.
Figure 7-5 shows the process of installing RRU cables.
RRU3232
Installation Guide 7 Installing RRU Cables
Issue 05 (2011-10-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
63
