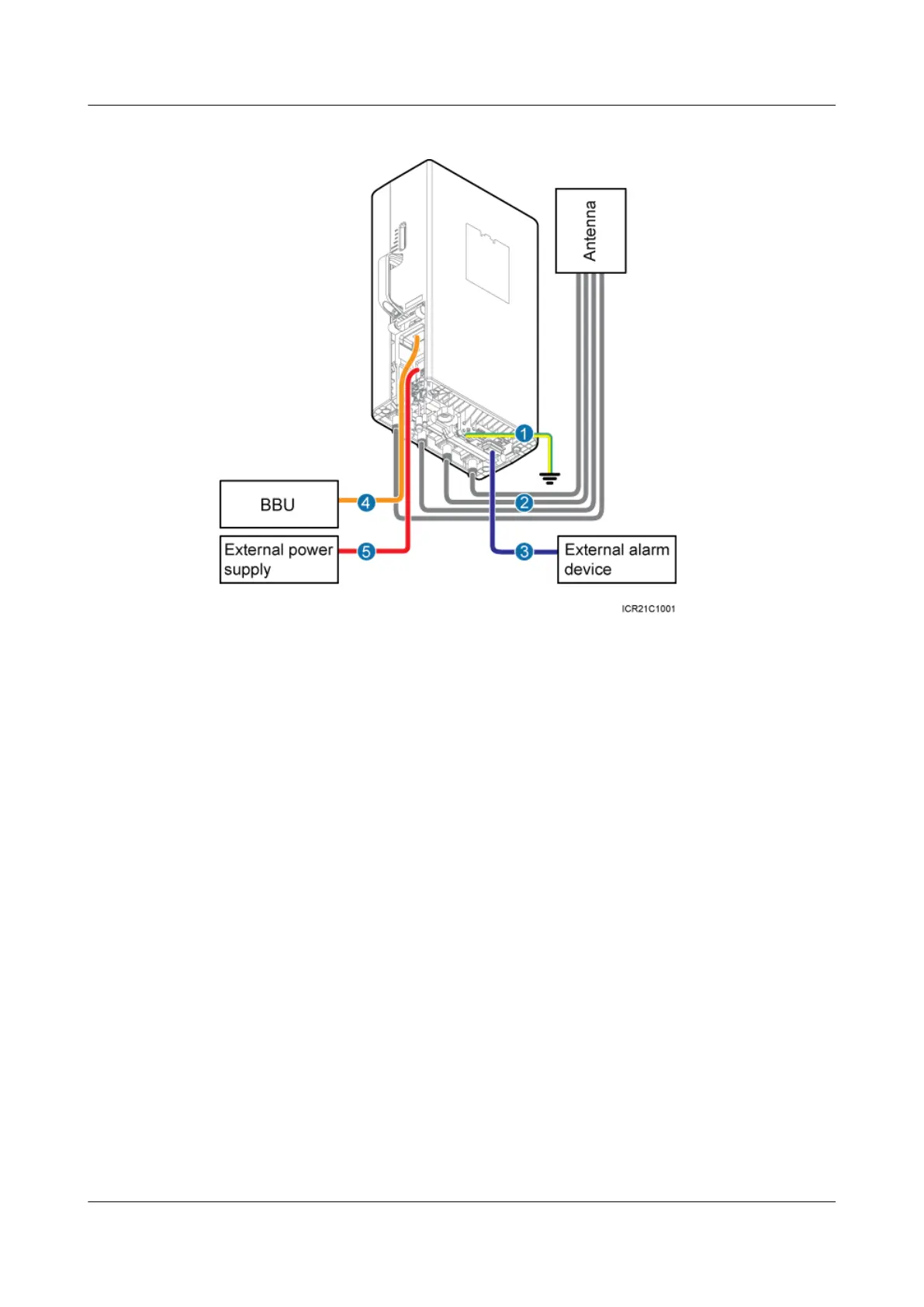

Figure 7-1 Cable connections for a single RRU (1)
(1) PGND cable (2) RRU RF jumper (3) RRU alarm cable
(4) CPRI fiber optic cable (5) RRU power cable -
Figure 7-2 shows the cable connections for a single RRU when the RET function is performed.
RRU3232
Installation Guide 7 Installing RRU Cables
Issue 05 (2011-10-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
60
