Huawei SUN2000-30KTL-M3 Quick Guide

5

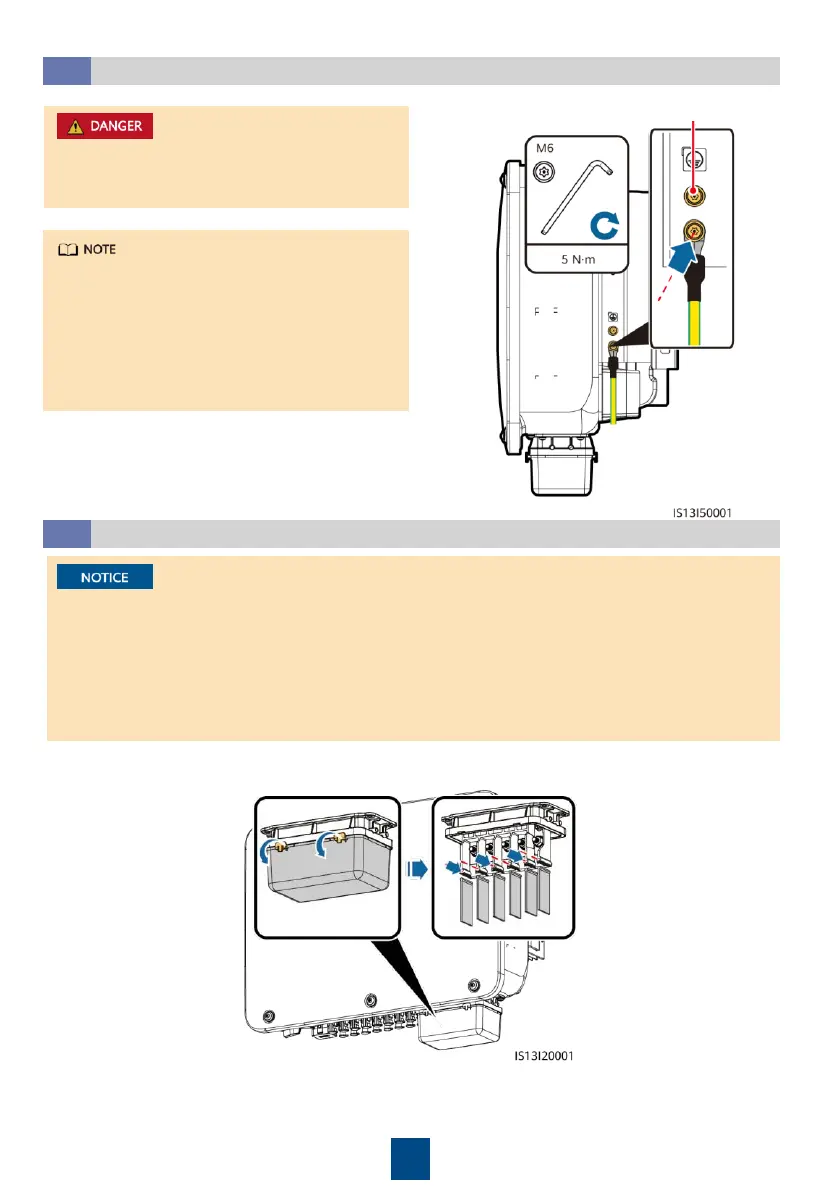

Connecting a PE Cable
4.2
•
The PE point at the AC output port is used
only as a PE equipotential point, not a
substitute for the PE point on the
enclosure.
•
It is recommended that silica gel or paint
be applied around the ground terminal
after the PE cable is connected.
Do not connect the neutral wire to the
enclosure as a PE cable. Otherwise, electric
shocks may occur.
Installing the AC Output Power Cable
4.3
•
Use a socket wrench and extension rod to connect the AC power cable. The extension rod
must be longer than 100 mm.
•
Sufficient slack should be provided in the PE cable to ensure that the last cable bearing the
force is the PE cable when the AC output power cable bears pulling force due to force
majeure.
•
Do not install third-party devices in the AC connection box.
•
You need to prepare M8 OT terminals by yourself.
1. Remove the AC terminal box and install partition boards.
Reserved PE point

Huawei SUN2000-30KTL-M3 Specifications

General

Model	SUN2000-30KTL-M3
Max. DC Input Voltage	1100 V
Number of MPPTs	3
Rated AC Output Power	30000 W
Max. Output Current	47.8 A
Frequency	50 Hz / 60 Hz
Adjustable Power Factor Range	0.8 leading - 0.8 lagging
Total Harmonic Distortion (THD)	< 3%
Max. Efficiency	98.7%
European Weighted Efficiency	98.4%
DC Connection	MC4
Protection Degree	IP66
Cooling Method	Natural convection
MPPT Voltage Range	200 V - 1000 V
Max. AC Output Power	33000 W
Rated AC Voltage	400 V
AC Voltage Range	320 V - 480 V
Display	LED Indicators
Communication	RS485, WLAN
Operating Temperature Range	-25°C to 60°C
Relative Humidity	0% - 100%
Operating Altitude	4000 m
Weight	43 kg
Dimensions	640 x 530 x 270 mm
Max. DC Input Power	45000 Wp
