SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
2 Overview
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
The nameplate figure is for reference only. The actual nameplate prevails.
Table 2-4 describes the compliance symbols.

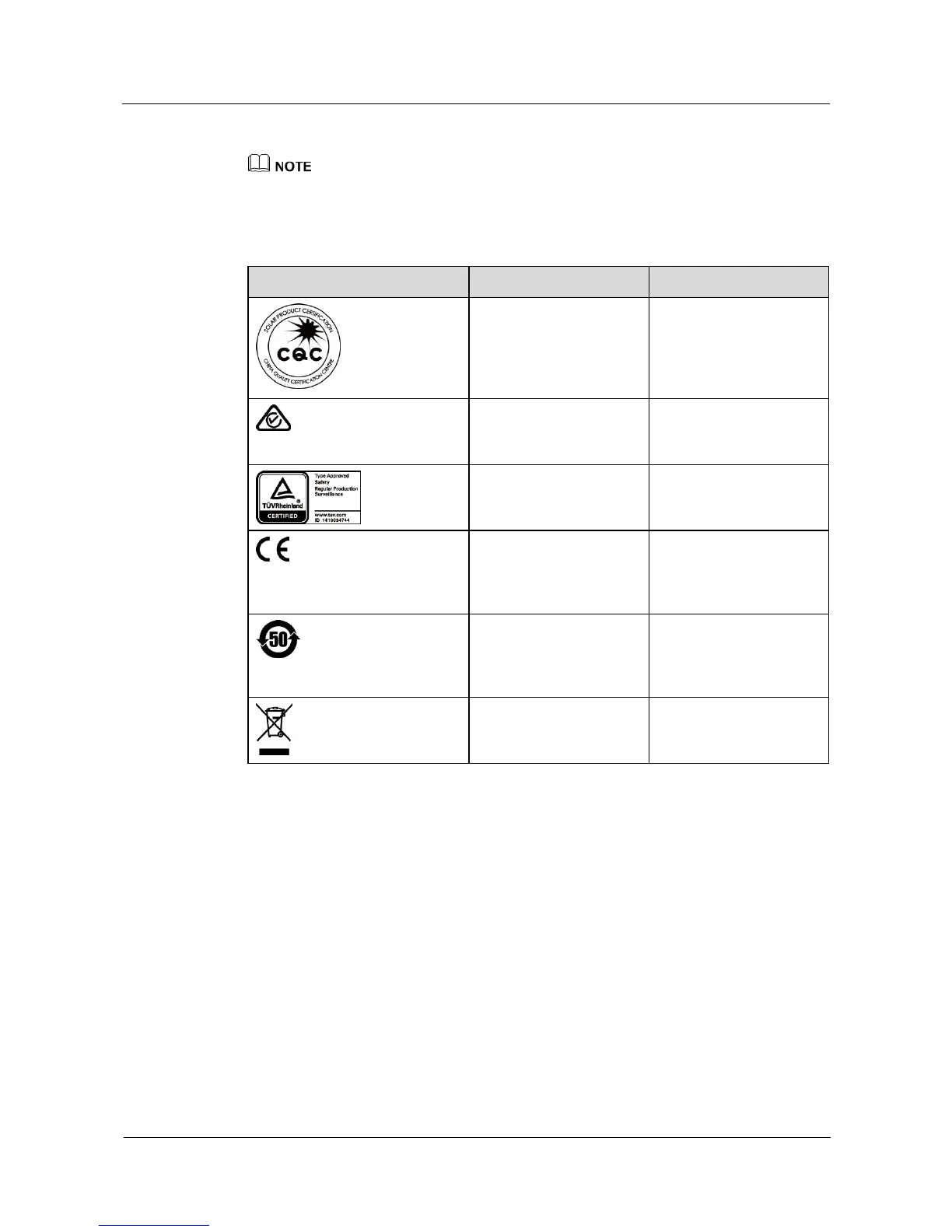

Table 2-4 Compliance symbols
Symbol
Name
Meaning
CQC certification mark
The SUN2000 has been
awarded the NB/T 32004
certification by China
Quality Certification
Center (CQC).
RCM certification mark
The SUN2000 complies
with RCM certification
standards.
TÜVRheinland
certification mark
The SUN2000 complies
with TÜVRheinland
certification standards.
CE certification mark
The SUN2000 complies
with Conformité
Européenne (CE)
certification standards.
Environmentally friendly
use period (EFUP) label
The SUN2000 does not
pollute the environment
during the specified
period.
EU waste electrical and
electronic equipment
(WEEE) label
Do not dispose of the
SUN2000 as household
garbage.
2.4 Working Principle
Conceptual Diagram
The SUN2000 receives inputs from eight PV strings. Then the inputs are grouped into four
MPPT routes inside the SUN2000 to track the maximum power point of the PV strings. The
DC power is then converted into three-phase AC power through an inverter circuit. Surge
protection is supported on both the DC and AC sides. Figure 2-10 shows the conceptual
diagram for the SUN2000-33KTL-A/36KTL. Figure 2-11 shows the conceptual diagram for
the SUN2000-42KTL.
