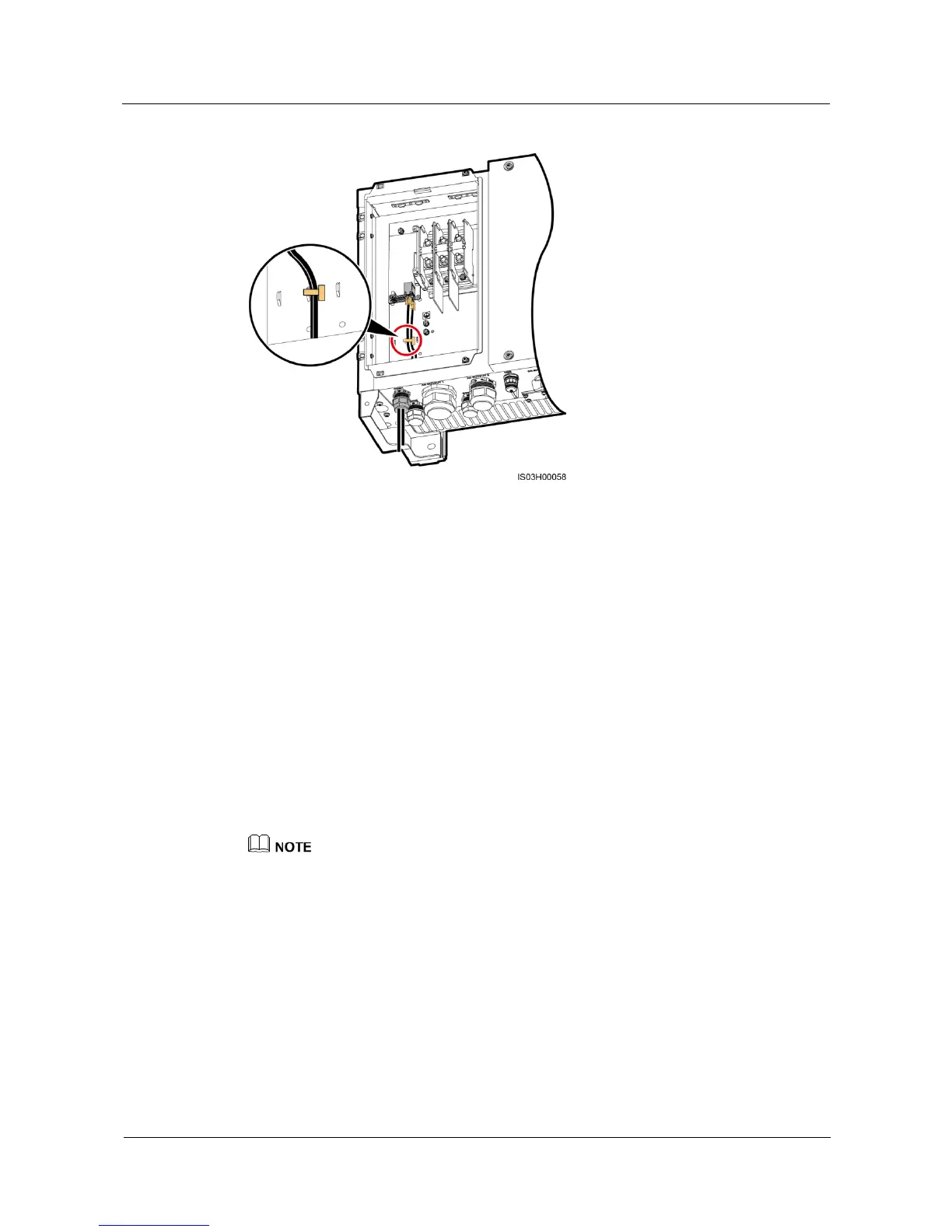

Figure 5-34 Binding communications cables
Step 7 Use a torque wrench with an open end of 33 mm to tighten the locking cap to a torque of 7.5
N•m.
----End
Follow-up Procedure
Check that the cables are connected correctly and securely. Then seal the connectors.
5.5.3 (Optional) Connecting FE Communications Cables
Description
FE communication is mainly used in distributed rooftop scenarios with a small number of
inverters. The inverter can directly connect to the PC over the Ethernet to implement
monitoring networking.
FE communication is optional for the SUN2000-36KTL. To use FE communication, contact local
technical support.

Figure 5-35 shows the communication mode for a single SUN2000.
