Huawei SUN2000-3KTL-M1 Quick Guide

8

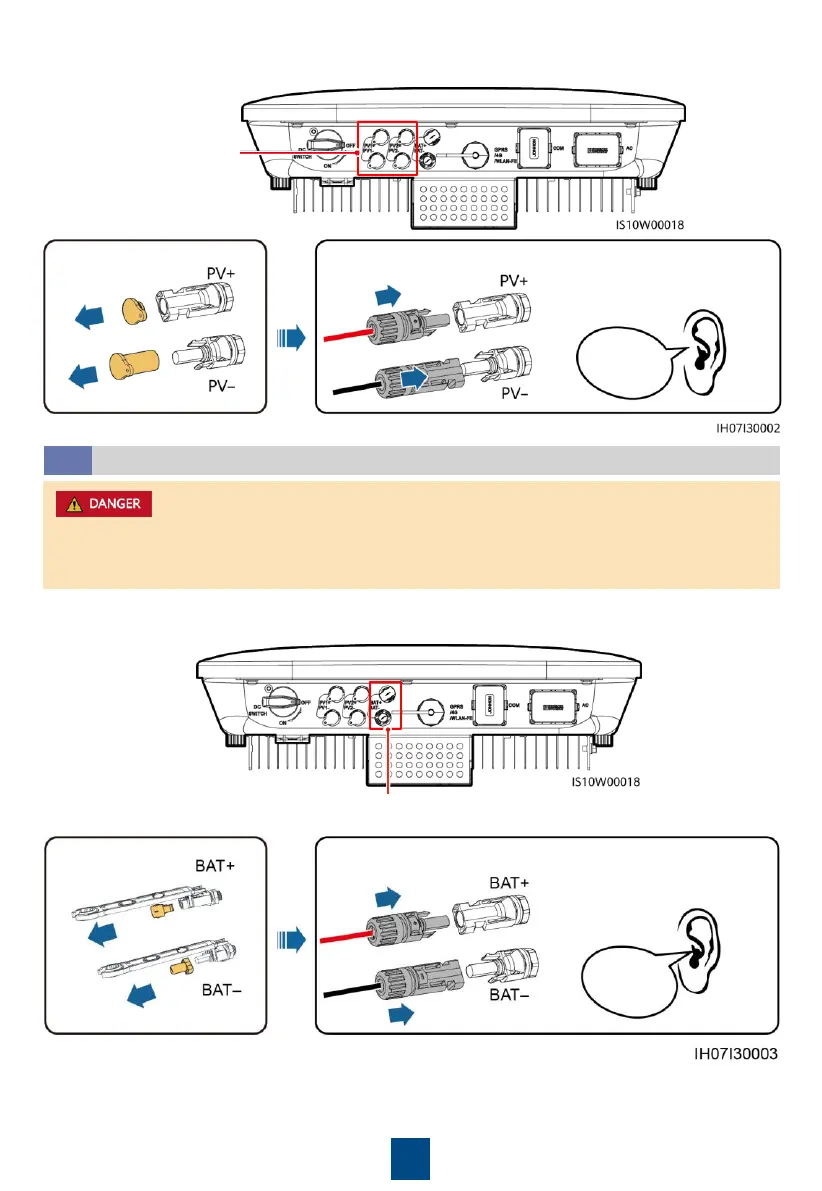

Click
Pull the DC input power cable
back to ensure that it is
connected securely.
DC input terminals
2. Connect DC input power cables.
(Optional) Installing Battery Cables
3.5
Properly keep the
watertight caps.
Pull the battery cable back to
ensure that it is connected
securely.
Battery terminals (BAT+/BAT–)
Assemble the positive and negative connectors by following the instructions in section 3.4
"Installing DC Input Power Cables."
•
Use insulated tools when connecting cables.
•
Connect battery cables with correct polarity. If battery cables are reversely connected, the
solar inverter may be damaged.
Click

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
