Load-Bearing
Structure
Screw Type Screw
Quantity
Screw
Appearance
Mounting
Holes
Solid brick
concrete wall
M6 expansion
bolt
3 PCS 1, 5, 11

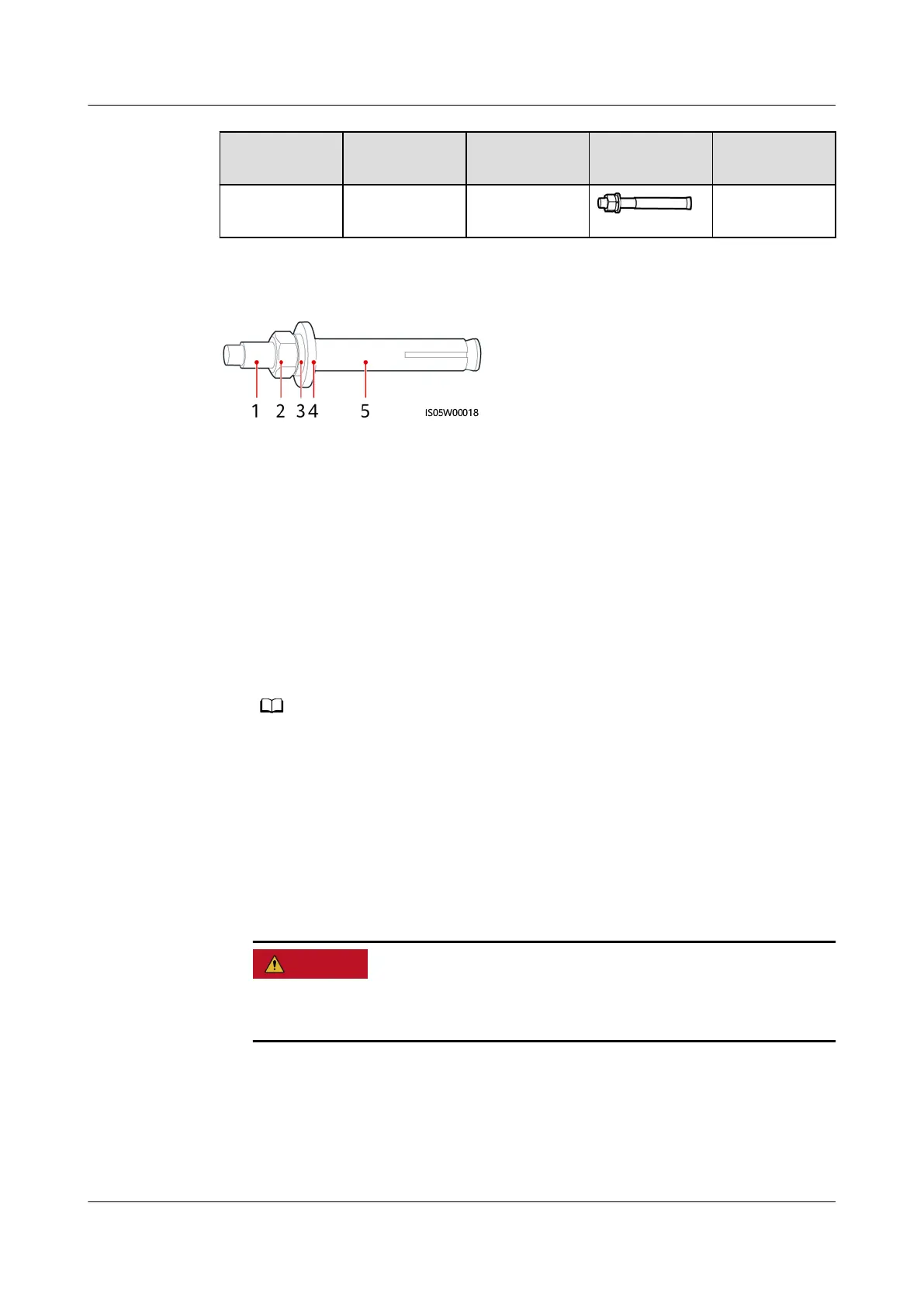

Figure 4-10 Expansion bolt composition
(1) Bolt (2) Nut (3) Spring washer
(4) Flat washer (5) Expansion sleeve
Step 3 Secure the mounting bracket.
1. Place the mounting bracket close to the wall, determine the positions for
drilling holes, level the hole positions using a level, and mark the hole
positions using a marker.
2. Drill holes within the size range of the U-shaped plug-in under the mounting
bracket using a drilling tool to facilitate cable routing through the wall.
3. Install the screws in the marked positions.
4. Secure the mounting bracket.
NO TE
– M6x60 expansion bolts and M6x80 tapping screws are delivered with the SUN2000.
If the length and quantity of the bolts do not meet installation requirements,
prepare M6 stainless steel expansion bolts by yourself.
– The delivered expansion bolts are intended for solid brick concrete walls and the
delivered tapping screws are intended for frame post and plywood walls. Ensure
that the wall meets the load bearing requirements of the SUN2000, and choose
the appropriate bolts or screws.
– If secured on a frame post, the mounting bracket should be at around two-thirds
of the width of the frame post to ensure that at least one-third of the cable hole is
not blocked by the frame post.
D ANGER
When drilling holes, avoid the water pipes and power cables buried in the
wall.
SUN2000-4.95KTL-JPL1
User Manual 4 Installation
Issue 05 (2023-02-17) Copyright © Huawei Technologies Co., Ltd. 32
