TE
Prepar
e bolt assemblies based on the hole diameter of the mounting br
acket.
Step 4

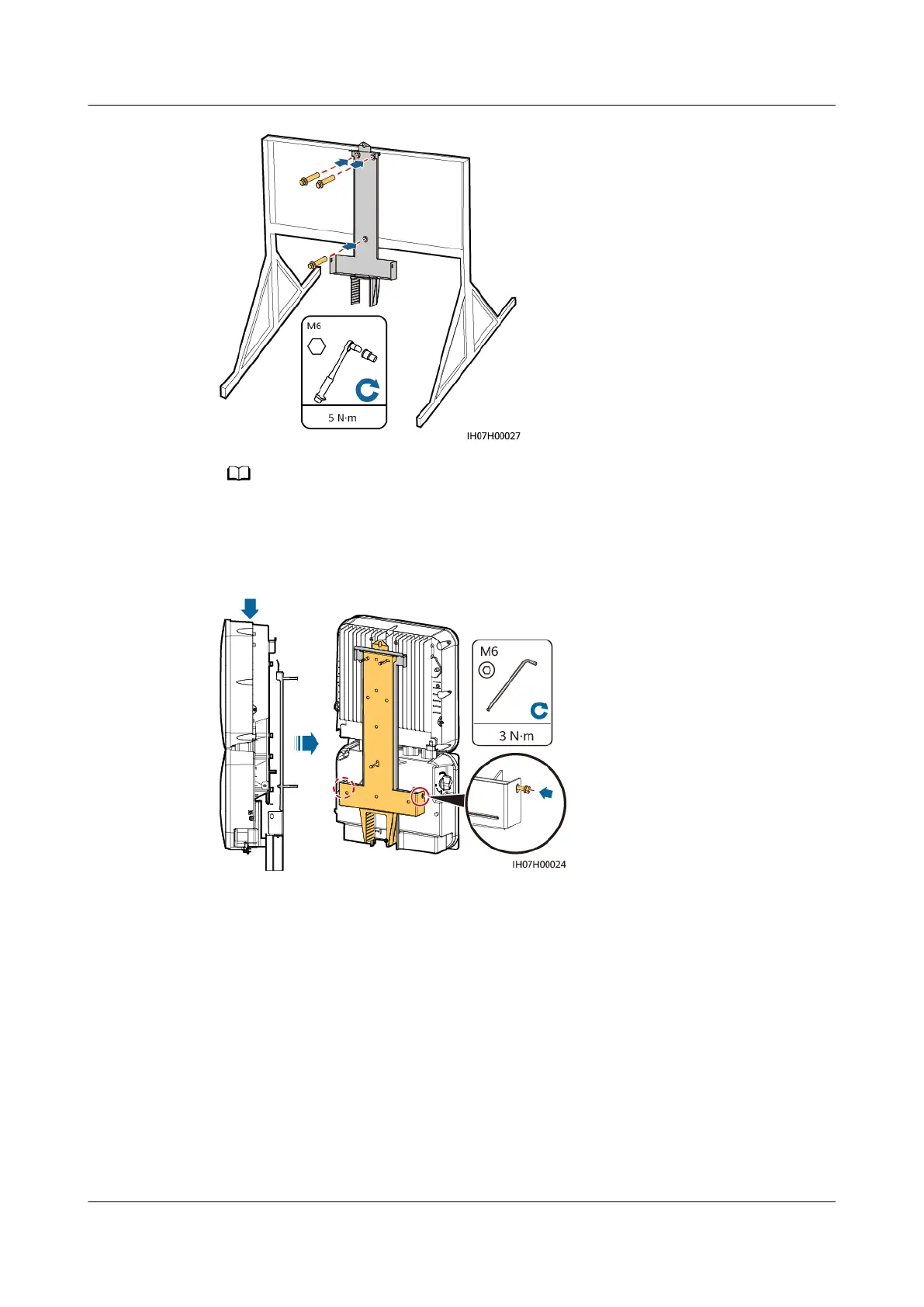

Install the SUN2000 on the rear panel and tighten the bolt assemblies.
Figure 4-17
Securing the SUN2000
Step 5
Install the SUN2000 protective cover
.
SUN2000-4.95KTL
-JPL1
User Manual
4 Installation
Issue 05 (2023-02-17)
Copyright © Huawei T
echnologies Co., Ltd.
36
41
43
