Huawei SUN2000-5KTL-L1 User Manual

(1) Bolt (2) Nut (3) Spring washer
(4) Flat washer (5) Expansion sleeve
NO TICE
● To prevent dust inhalation or contact with eyes, wear safety goggles and an
dust mask when drilling holes.
● Wipe away any dust in or around the holes and measure the hole distances. If
the holes are inaccurately positioned, drill holes again.
● Level the head of the expansion sleeve with the concrete wall after removing
the nut, spring washer, and
at washer. Otherwise, the mounting bracket will
not be securely installed on the wall.
● Loosen the nut, spring washer, and
at washer of the expansion bolt at the
bottom.

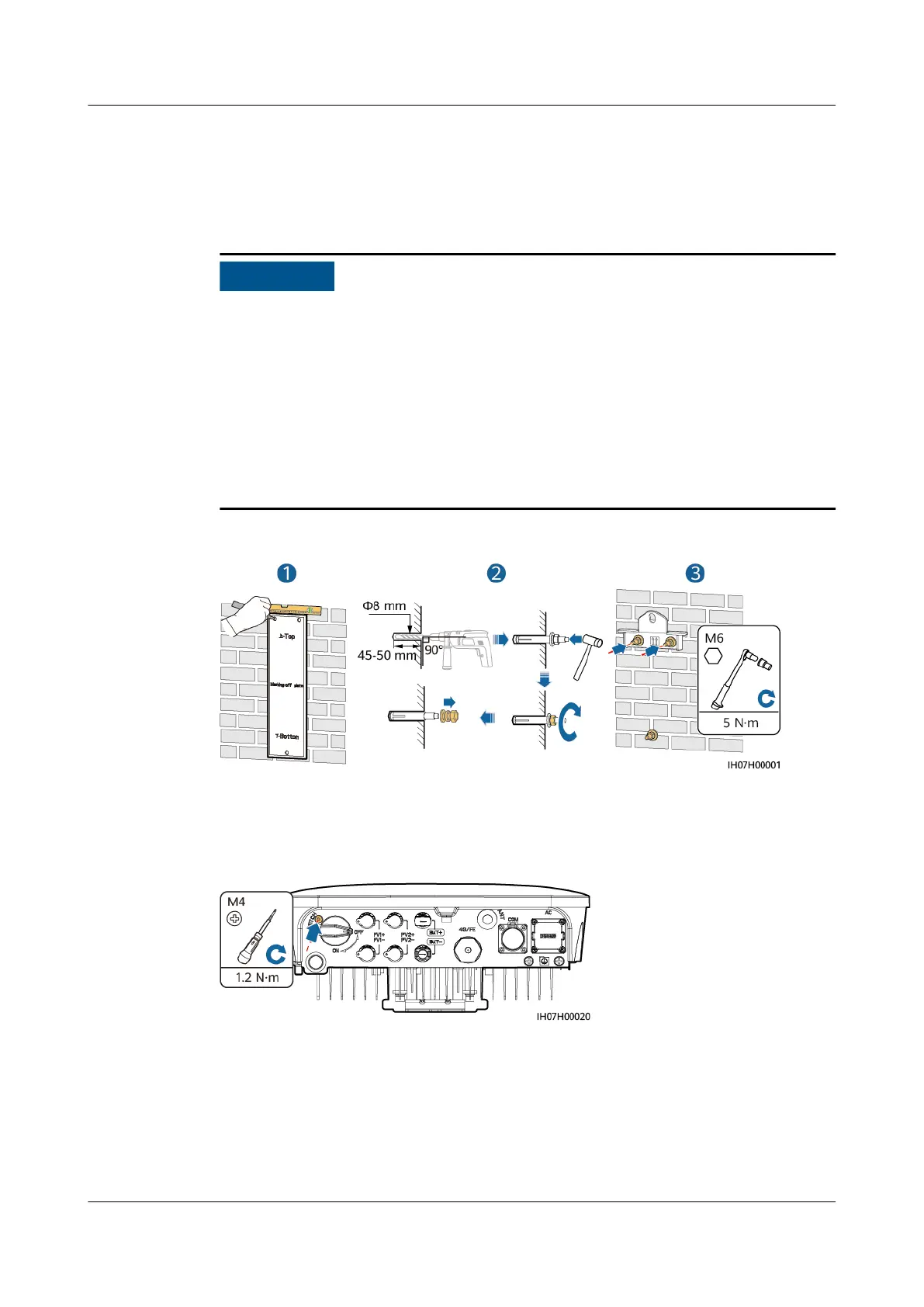

Figure 4-9 Installing expansion bolts
Step 3 (Optional) Install the locking screw for the DC switch.
Figure 4-10 Installing a locking screw for the DC switch
Step 4 Install the SUN2000 on the mounting bracket.
Step 5 Tighten the nuts.
SUN2000-(2KTL-6KTL)-L1
User Manual 4 System Installation
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 32

Huawei SUN2000-5KTL-L1 Specifications

General

Model	SUN2000-5KTL-L1
Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Operating Temperature Range	-25°C to +60°C
Topology	Transformerless
Max. apparent AC power	5500 VA
Max. input voltage	600 V
Number of MPPT trackers	2
Max. short-circuit current per MPPT	15 A
Protection degree	IP65
Max. Input Power	7500 W
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Nominal AC voltage	230 V
AC voltage range	180 V - 280 V
Rated Output Voltage	230 V
