CA UTION
Stay away from the equipment when preparing cables to prevent cable scraps
from entering the equipment. Cable scraps may cause sparks and result in
personal injury and equipment damage.
When routing PV cables, the positive and negative PV string cables should be
routed in
dierent pipes to prevent cable damage and short circuits caused by
improper operations during construction.
NO TE
The cable colors shown in the electrical connection diagrams provided in this chapter are
for reference only. Select cables in accordance with local cable specications (green-and-
yellow cables are only used for grounding).
5.2 Preparing Cables

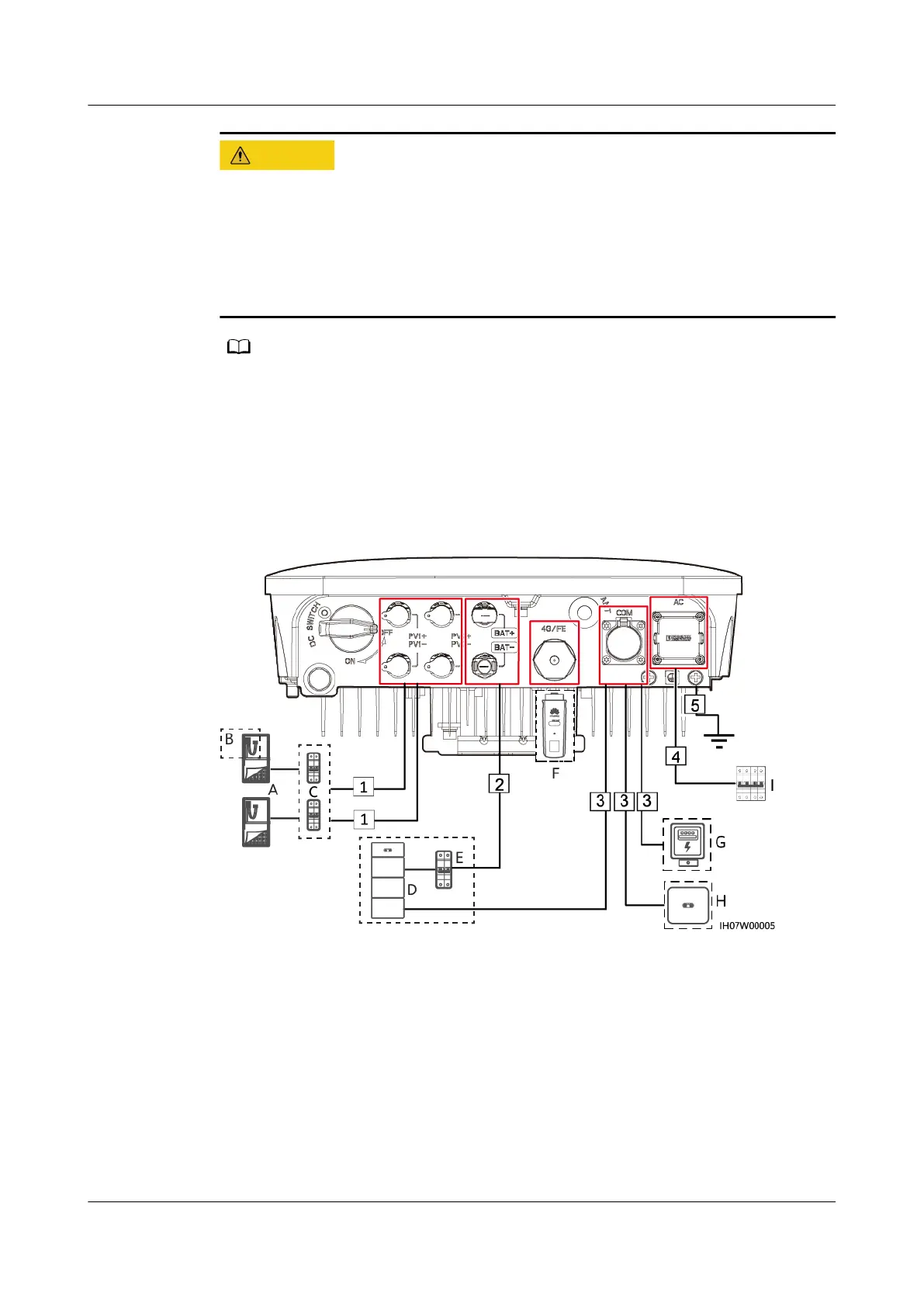

Figure 5-1 SUN2000 cable connections (dashed boxes indicate optional
conguration)
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 38

Table of Contents

Other manuals for Huawei SUN2000-5KTL-L1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei SUN2000-5KTL-L1 and is the answer not in the manual?

Huawei SUN2000-5KTL-L1 Specifications

General IconGeneral
ModelSUN2000-5KTL-L1
Max. Efficiency98.4%
Rated AC Output Power5000 W
Operating Temperature Range-25°C to +60°C
TopologyTransformerless
Max. apparent AC power5500 VA
Max. input voltage600 V
Number of MPPT trackers2
Max. short-circuit current per MPPT15 A
Protection degreeIP65
Max. Input Power7500 W
Output Frequency50 Hz / 60 Hz
Cooling MethodNatural Convection
Nominal AC voltage230 V
AC voltage range180 V - 280 V
Rated Output Voltage230 V
