Huawei SUN2000-5KTL-L1 User Manual

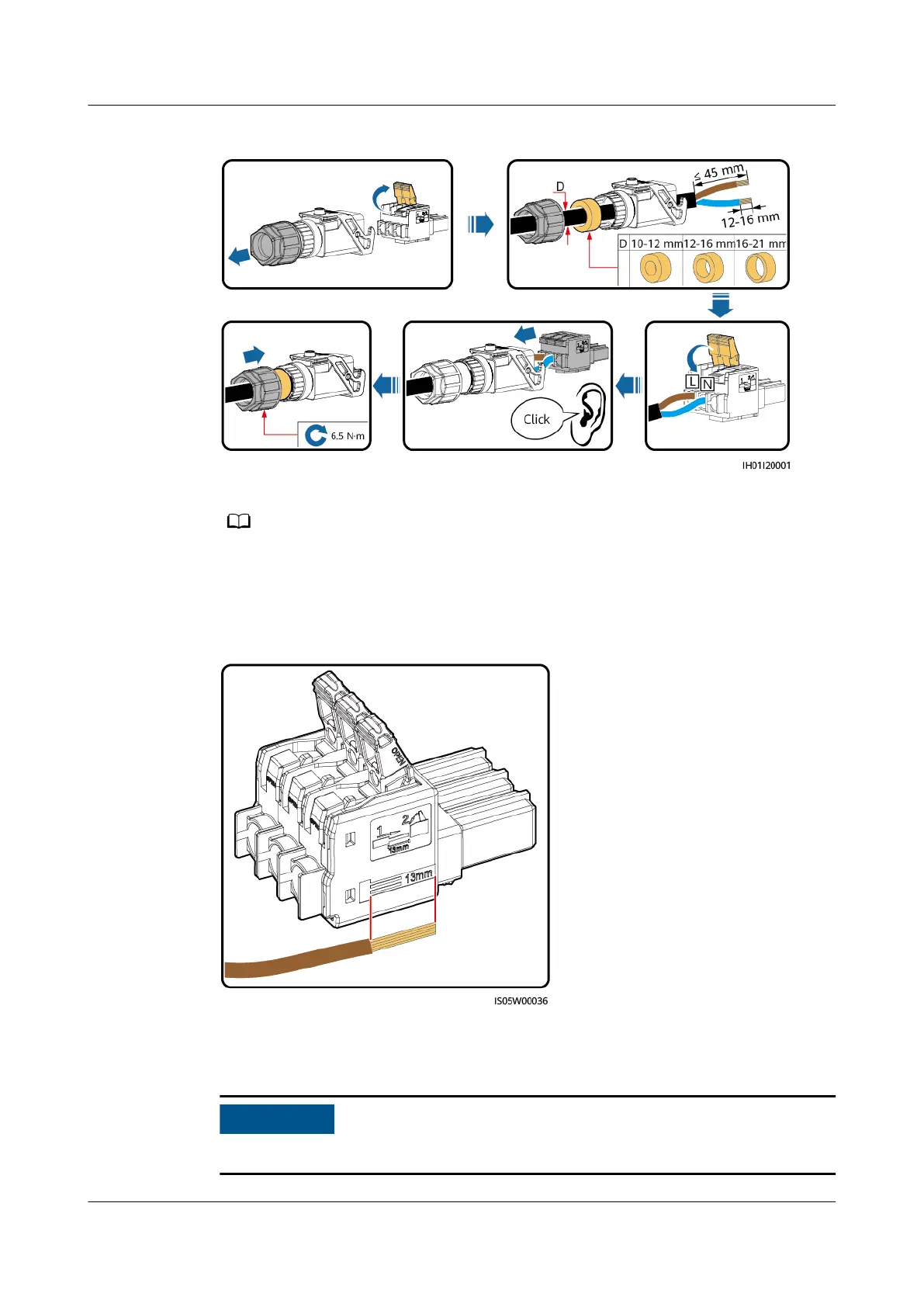

Figure 5-8 Assembling an AC connector (two-core wire)
NO TE
● The cable colors shown in the gures are for reference only. Select an appropriate cable
according to the local standards.
● For the core installation method and the length for cable stripping, see the instructions
on the side of the plug insert.
Figure 5-9 Length for cable stripping
Step 2 Connect the AC connector to the AC output port.
NO TICE
Ensure that the AC connector is connected securely.
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 50

Huawei SUN2000-5KTL-L1 Specifications

General

Model	SUN2000-5KTL-L1
Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Operating Temperature Range	-25°C to +60°C
Topology	Transformerless
Max. apparent AC power	5500 VA
Max. input voltage	600 V
Number of MPPT trackers	2
Max. short-circuit current per MPPT	15 A
Protection degree	IP65
Max. Input Power	7500 W
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Nominal AC voltage	230 V
AC voltage range	180 V - 280 V
Rated Output Voltage	230 V
