Huawei SUN2000-5KTL-L1 User Manual

NO TICE
● Since the output of the PV string connected to the SUN2000 cannot be
grounded, ensure that the PV module output is well insulated to ground.
● During the installation of PV strings and the SUN2000, the positive or negative
terminals of PV strings may be short-circuited to ground if the power cable is
not properly installed or routed. In this case, an AC or DC short circuit may
occur and damage the SUN2000. The caused device damage is not covered
under any warranty or service agreement.

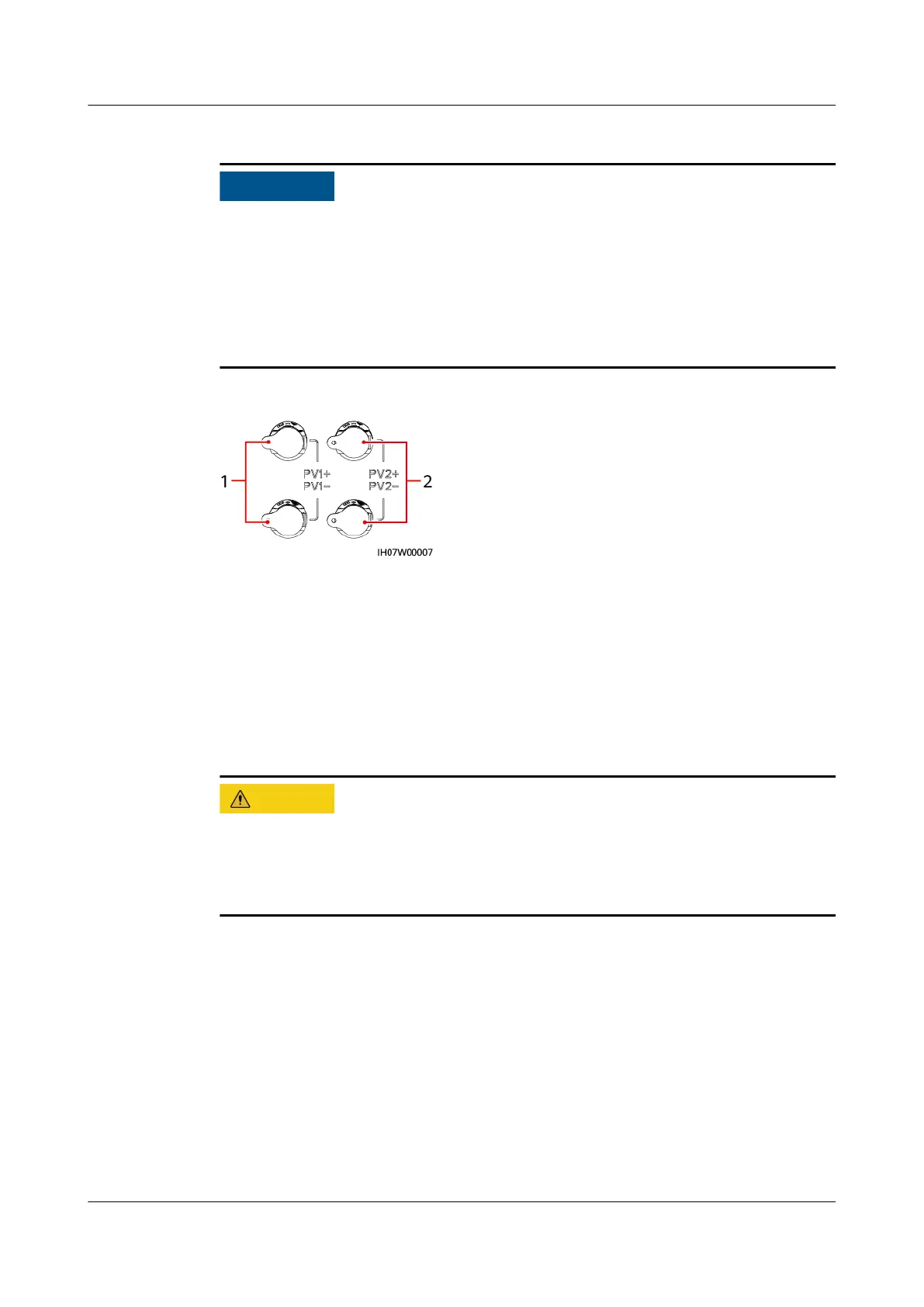

Figure 5-13 DC input terminals
(1) Terminals of DC input 1 (2) Terminals of DC input 2
Procedure
Step 1 Assemble a DC connector.
CA UTION
Use the Staubli MC4 positive and negative metal terminals and DC connectors
delivered with the SUN2000. Using incompatible positive and negative metal
terminals and DC connectors may result in serious consequences. The caused
device damage is not covered under any warranty or service agreement.
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 53

Huawei SUN2000-5KTL-L1 Specifications

General

Model	SUN2000-5KTL-L1
Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Operating Temperature Range	-25°C to +60°C
Topology	Transformerless
Max. apparent AC power	5500 VA
Max. input voltage	600 V
Number of MPPT trackers	2
Max. short-circuit current per MPPT	15 A
Protection degree	IP65
Max. Input Power	7500 W
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Nominal AC voltage	230 V
AC voltage range	180 V - 280 V
Rated Output Voltage	230 V
