Switch
Component
Description
The DC switch is ON but cannot automatically turn
o for protection.
OFF The DC switch is OFF.
RESET ● When the DC switch automatically turns o for protection,
the RESET button will be released.
● When the RESET button is not pressed, the DC switch can
only be turned to the unloaded position , and cannot
be set to the ON position.

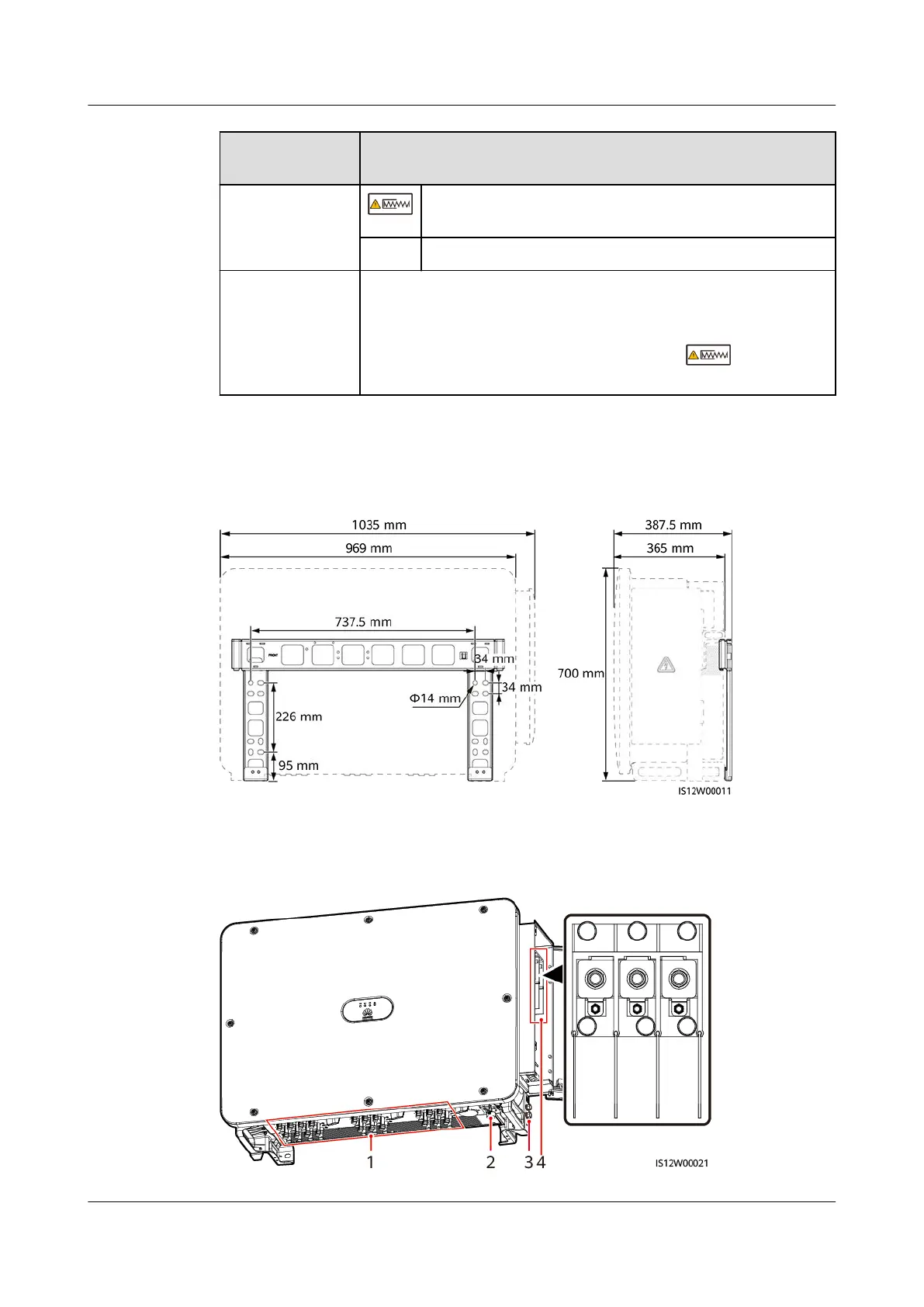

Dimensions
Figure 2-9 Dimensions
Wiring Area
Figure 2-10 Wiring port of a 3-pin model (SUN2000-125KTL-M0)
SUN2000-(75KTL, 100KTL, 110KTL, 125KTL) Series
User Manual 2 Overview
Issue 15 (2023-01-31) Copyright © Huawei Technologies Co., Ltd. 21
