Huawei SUN2000-8KTL Quick Installation Guide

SUN2000 (8KTL-28KTL)
Quick Installation Guide
Issue 04 (2013-12-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
20

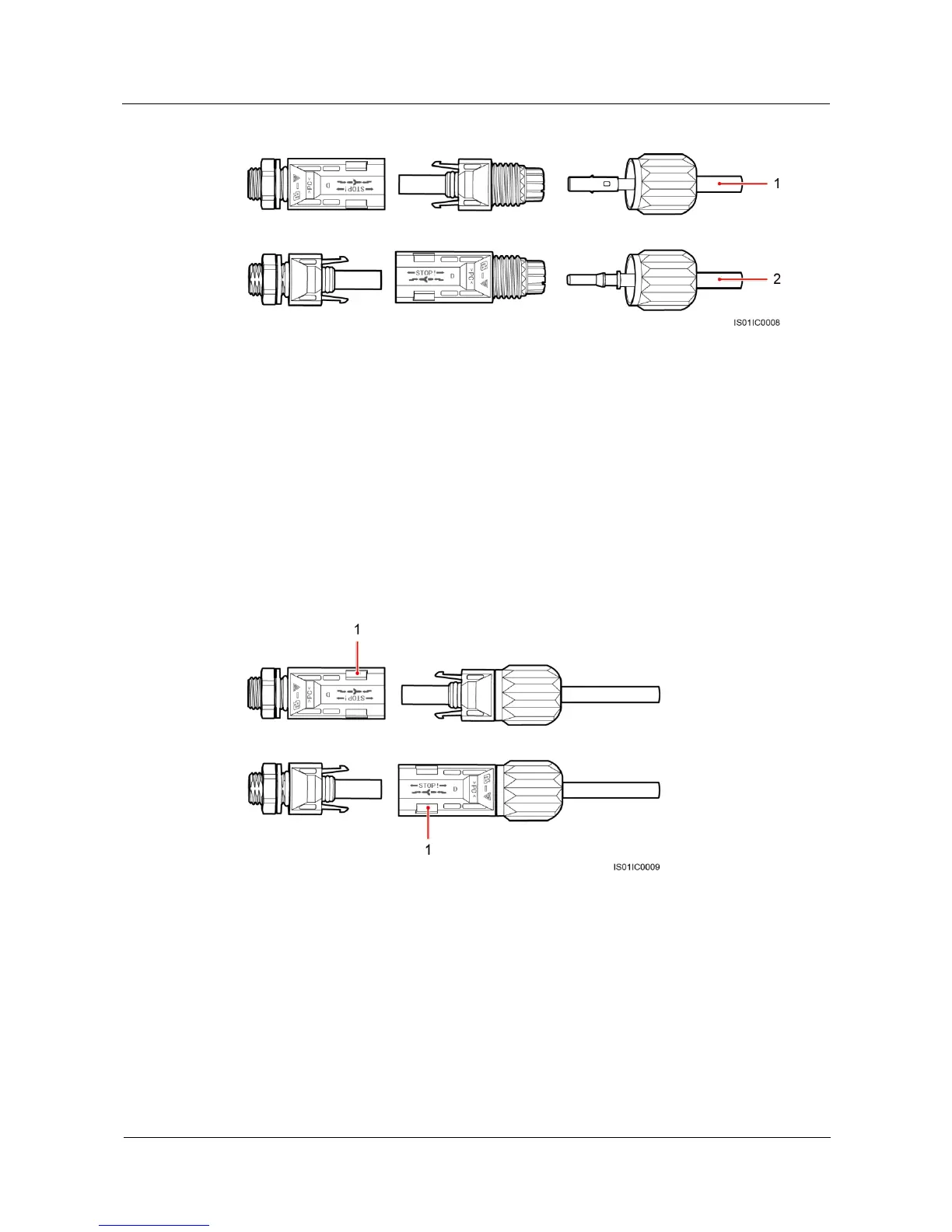

Figure 1-28 Connecting DC input power cables (2)
1. Positive power cable
2. Negative power cable
Step 5 Insert crimped power cables into corresponding housings until you hear a "click" sound. The
power cables snap into place.
Step 6 Reinstall cable glands on positive and negative connectors and rotate them against the
insulation covers.
Before performing step 7, the DC switch is OFF.
Step 7 Insert the positive and negative connectors into corresponding DC input terminals of the
SUN2000 until you hear a "click" sound, as shown in Figure 1-29.
Figure 1-29 Connecting DC input power cables (3)
1. Bayonet
----End
8. Connecting RS485 Communications Cables
Step 1 Remove the insulation layer of an appropriate length from the shielded network cable using a
wire stripper.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
