Huawei SUN2000-8KTL Quick Installation Guide

SUN2000 (8KTL-28KTL)
Quick Installation Guide
Issue 04 (2013-12-12)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
22

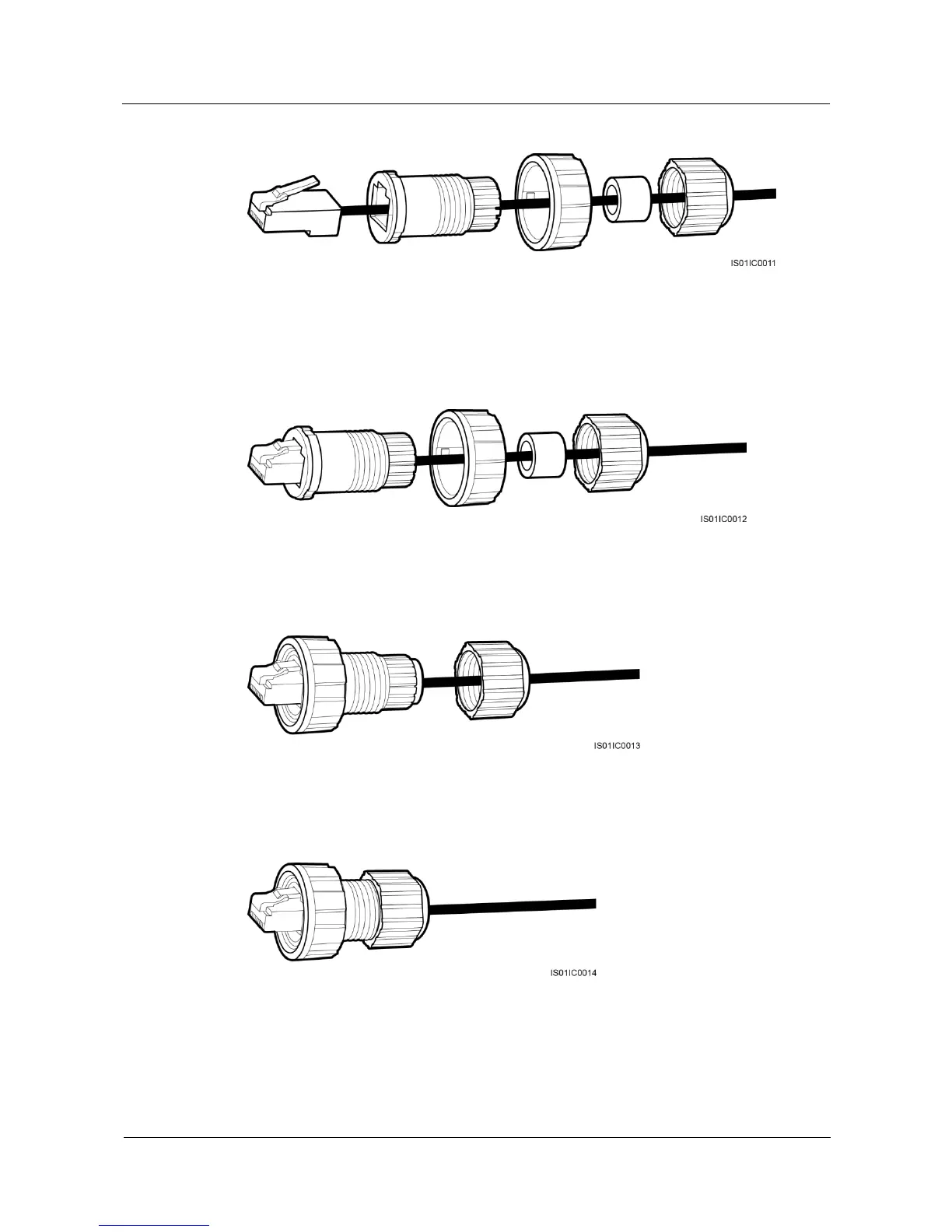

Figure 1-31 Connecting a communications cable (2)
Step 4 Crystal plug with RJ11 crimping tool.
Step 5 Secure the housing to the plug, as shown in Figure 1-32.
Figure 1-32 Connecting a communications cable (3)
Step 6 Insert the seals into and secure the screw nut to the housing, as shown in Figure 1-33.
Figure 1-33 Connecting a communications cable (4)
Step 7 Secure the sealing nut to the housing, as shown in Figure 1-34.
Figure 1-34 Connecting a communications cable (5)
Step 8 Insert the plug into the RS485 port on the SUN2000, and tighten the screw nut.
----End

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
