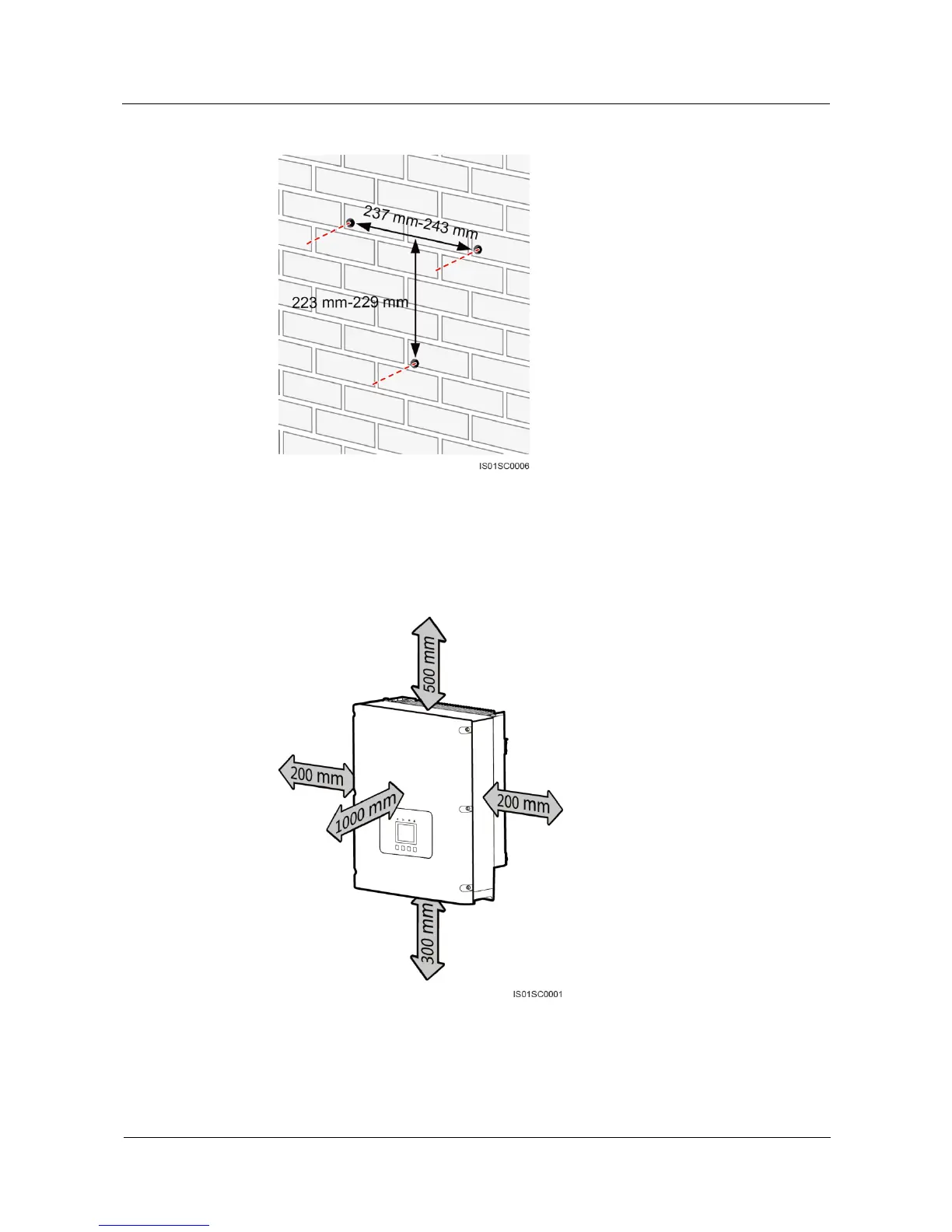

Figure 1-3 Hole positions and dimensions
To ensure good heat dissipation and reserve enough space for installing the SUN2000,
the SUN2000 is at least 200 mm, 500 mm, 300 mm, and 1000 mm away from objects on
its both sides, top, bottom, and front respectively, as shown in Figure 1-4.
Figure 1-4 Minimum installation clearance
When installing multiple SUN2000s, install them in the same line if sufficient space is
available and install them in triangle mode shown in Figure 1-5. If no sufficient space is

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
