TP48200A-DX12A1 Telecom Power
User Manual
3 Components
Copyright © Huawei Technologies Co., Ltd.
19

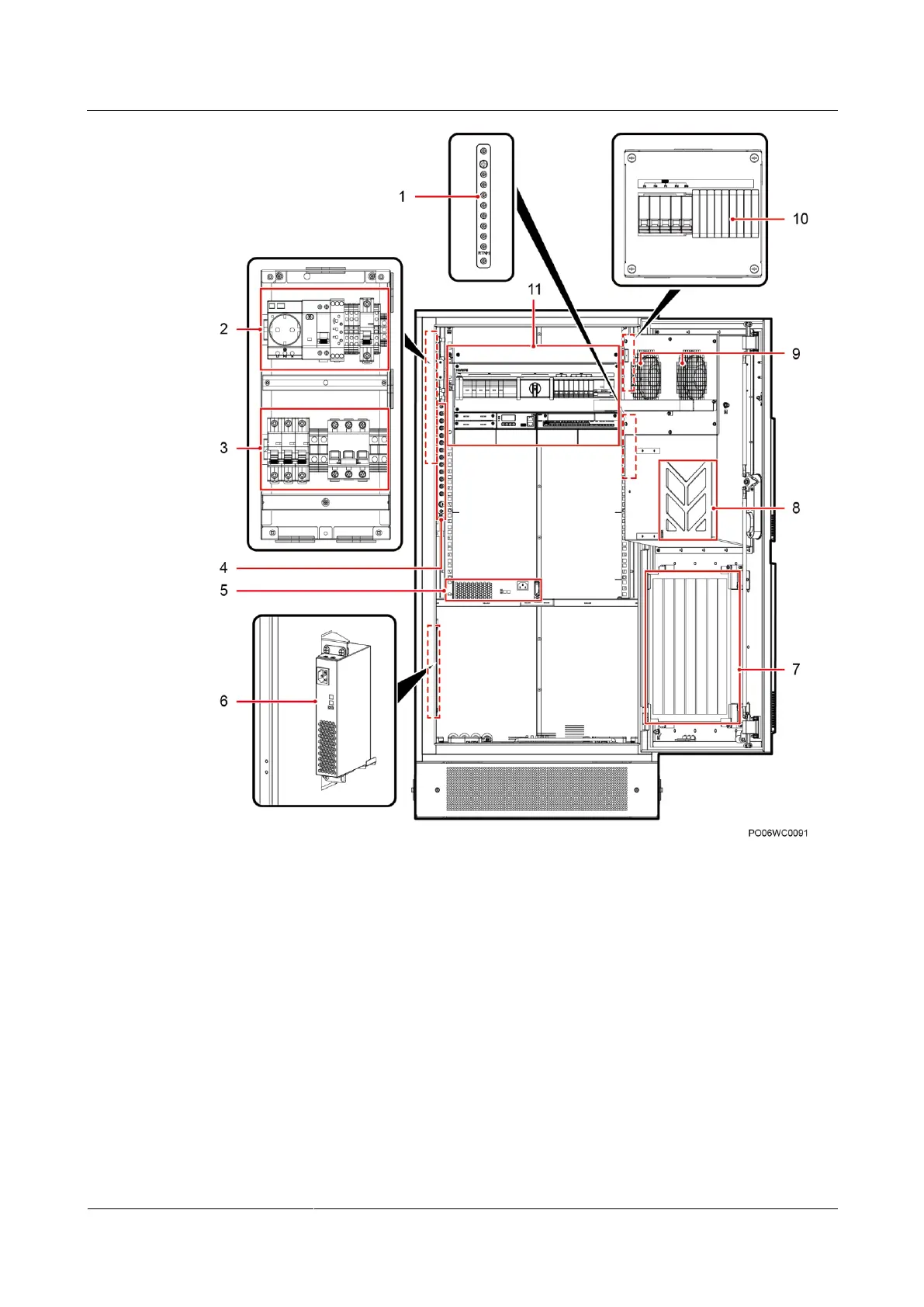

(1) RTN+ busbar
(2) AC output
unit
(3) AC input unit
(4) Cabinet ground bar
(5) Heater
(optional)
(6) Heater (standard)
(7) Air filter
(8) Folder
(9) Direct ventilation
fan
(10) Battery low voltage disconnection
(BLVD) output box
(11) Power
subrack
