TP48200A-DX12A1 Telecom Power
User Manual
3 Components
Copyright © Huawei Technologies Co., Ltd.
29
Pin
Signal
Description
5
TX-
6
PGND
Protective grounding.
3, 7, and 8
Reserved
N/A
Pins

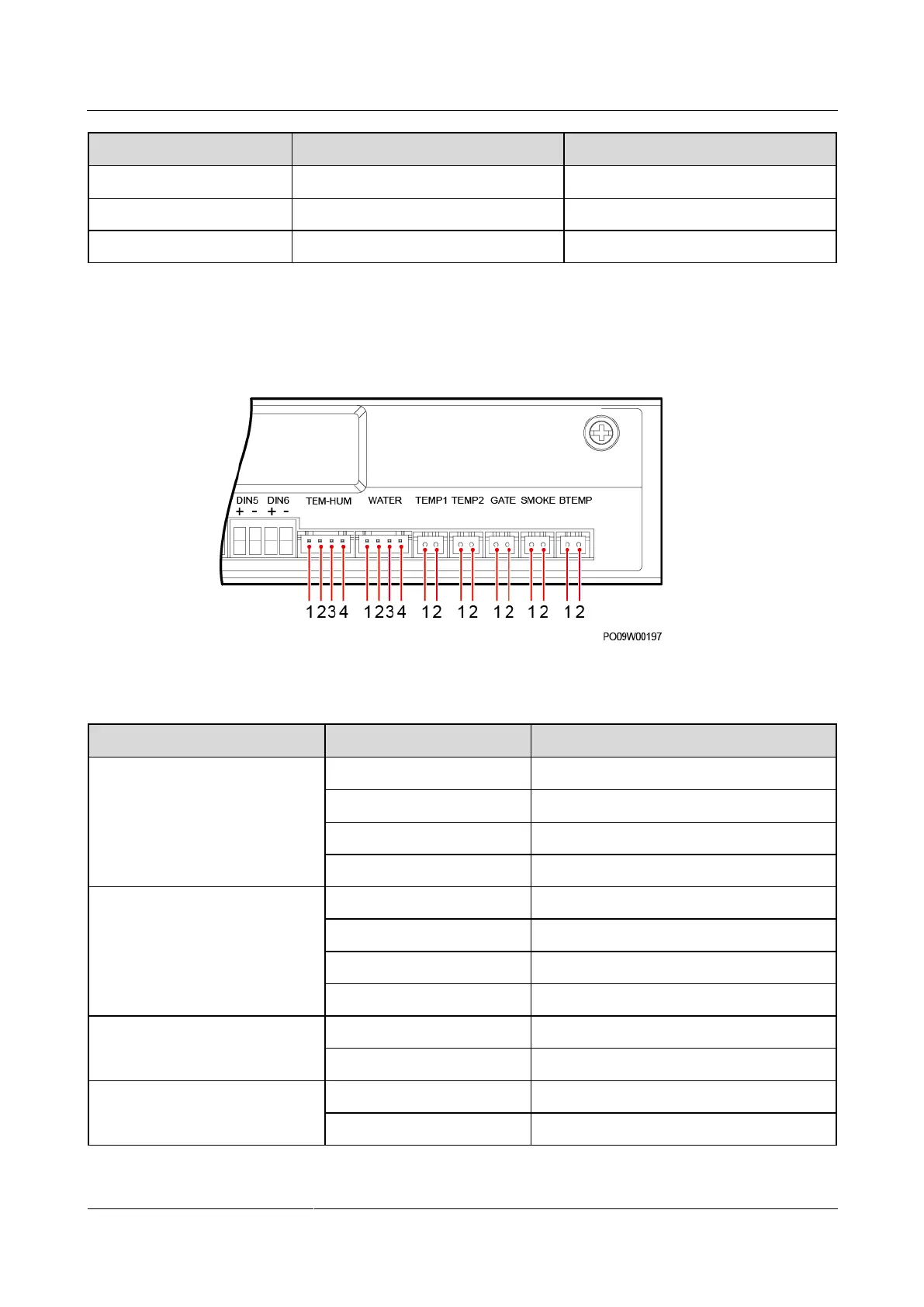

Figure 3-10 UIM02C pin numbers
Table 3-11 UIM02C pin definitions
Silk Screen
No.
Pin Definition
TEM-HUM
1
12 V
2
ENV_TEMP
3
12 V
4
ENV_HUM
WATER
1
12 V
2
WATER
3
GND
4
Not defined
TEMP1
1
GND
2
TEMP1
TEMP2
1
GND
2
TEMP2
