Step 9 Push the cabinet along the sliding plate to the installation position.
----End
4.2 Single UPS Installation
4.2.1 Single UPS Installation (30 kVA/40 kVA)
4.2.1.1 Installing the Chassis
Tower-mounted Installation
Step 1 Assemble support bases. When you assemble two modules, align the connecting
buckle with the hole.

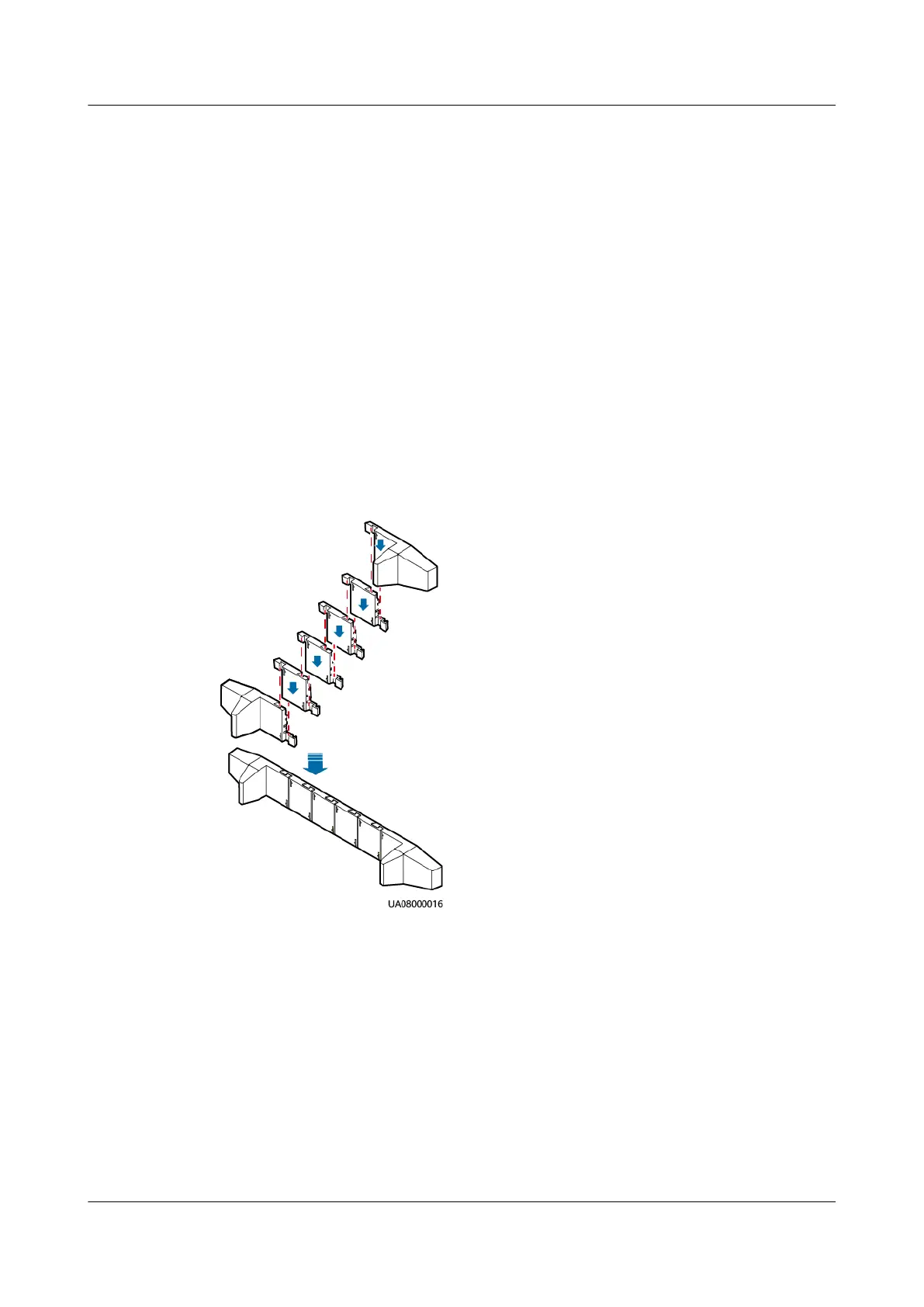

Figure 4-10 Assembling support bases
Step 2 Pull out the rear handle from the device.
1. Loosen the screws on the back-end handle anticlockwise.
2. Pull the handle out of the groove until the positioning kit is exposed.
UPS5000-A-(30 kVA-120 kVA)
User Manual 4 Installation and Cable Connection
Issue 17 (2024-02-21) Copyright © Huawei Digital Power Technologies Co., Ltd. 77
