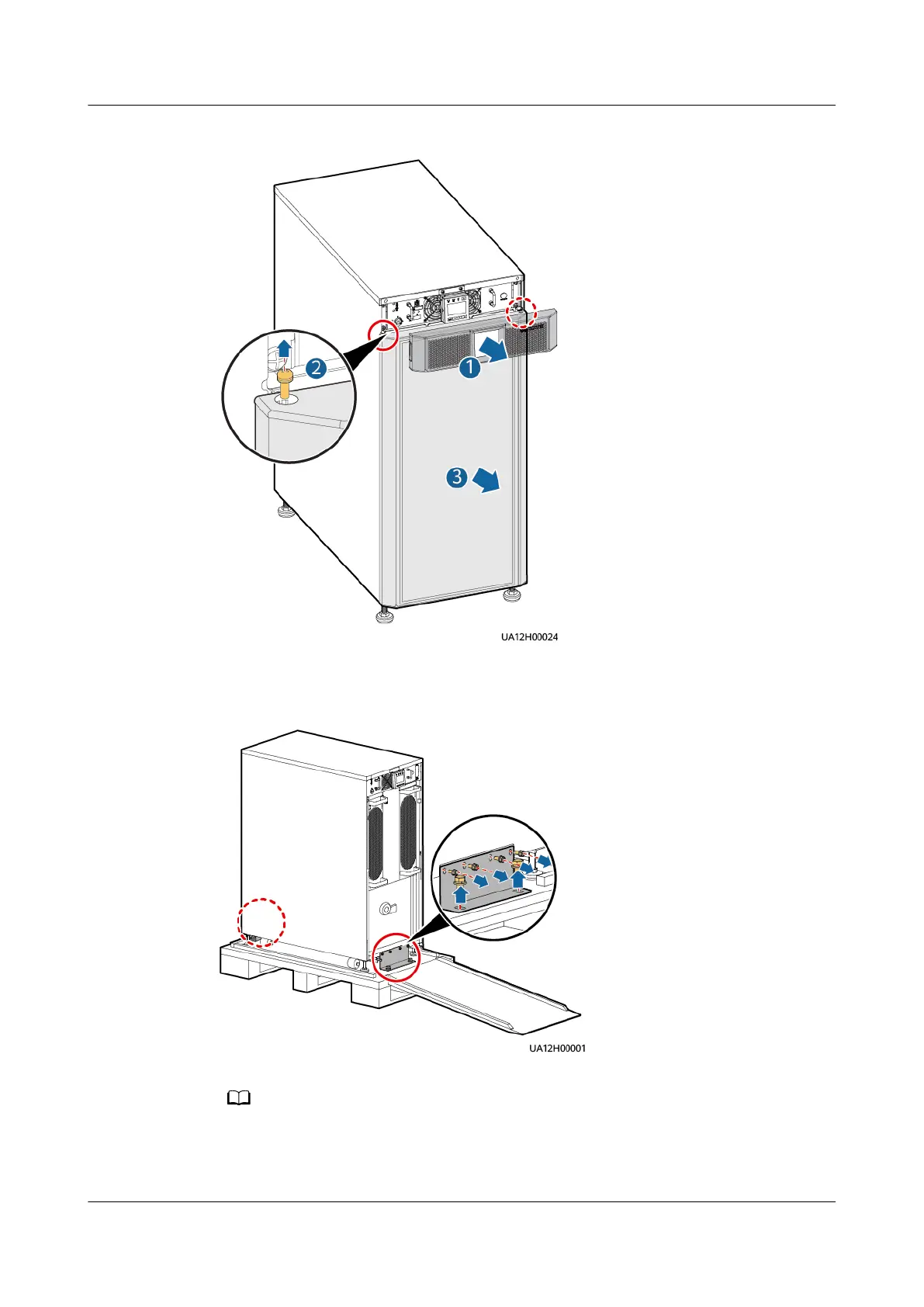

Figure 4-8 Removing UPS front panels
Step 8 Remove the L-shaped brackets that secure the chassis and pallet.
Figure 4-9 Removing the L-shaped brackets
Store the removed L-shaped brackets, which will be used to secure the UPS.
UPS5000-A-(30 kVA-120 kVA)
User Manual 4 Installation and Cable Connection
Issue 17 (2024-02-21) Copyright © Huawei Digital Power Technologies Co., Ltd. 76
