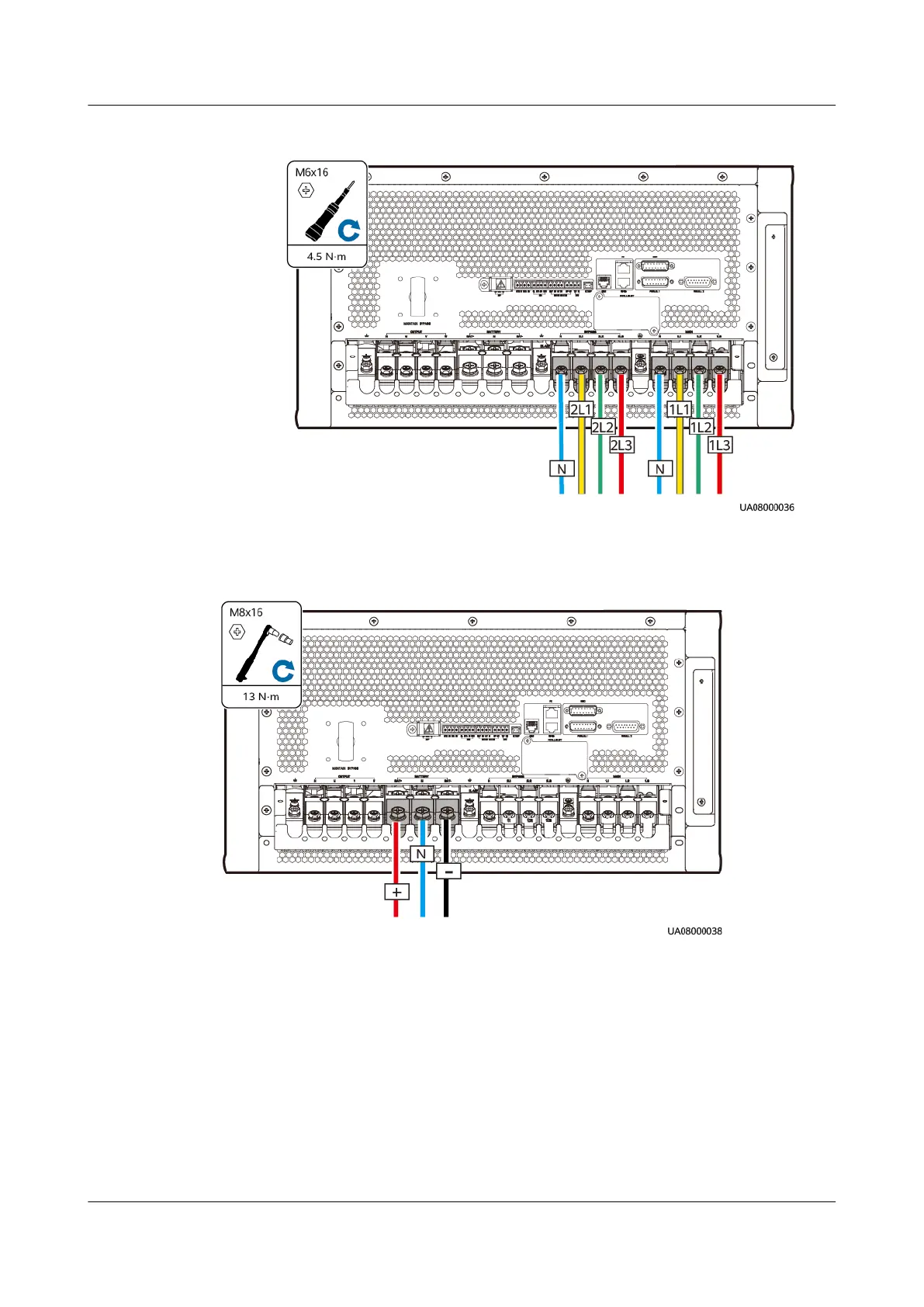

Figure 4-34 Connecting AC input power cables
Step 5 Install battery cables.
Figure 4-35 Connecting battery cables
Route a neutral wire from the middle of the positive and negative battery strings.
Take a battery string consisting of 40 batteries for example. The battery neutral
wire is routed from the middle of positive and negative battery strings, each
consisting of 20 batteries.
UPS5000-A-(30 kVA-120 kVA)
User Manual 4 Installation and Cable Connection
