UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
4 User Interface
Issue 02 (2017-02-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
197

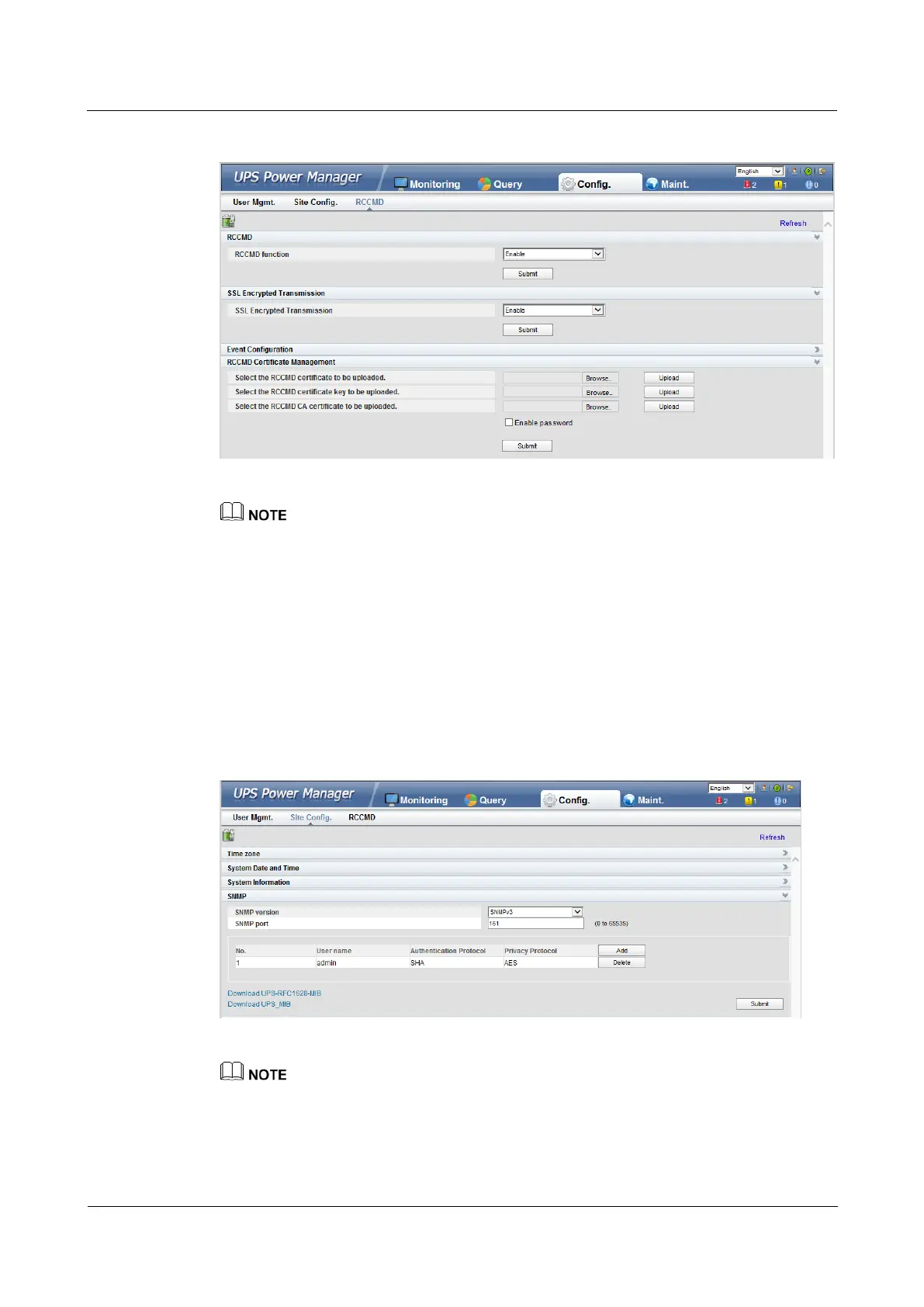

Figure 4-98 RCCMD certificate management
If the RCCMD certificate key has been encrypted, enable and enter the key password.
4.2.4.4 Managing the UPS by Using the NMS Complying with RFC1628
Standard
Installing the UPS MIB
The MIB is in the MDU. Click Download UPS-RFC1628-MIB on the page of the web
browser to download the MIB file which allows the third-party NMS of Generex to manage
the UPS remotely.
Figure 4-99 RCCMD certificate management
The UPS-RFC1628-MIB has more alarms than RFC1628. Download the UPS-RFC1628-MIB before
using.
