UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

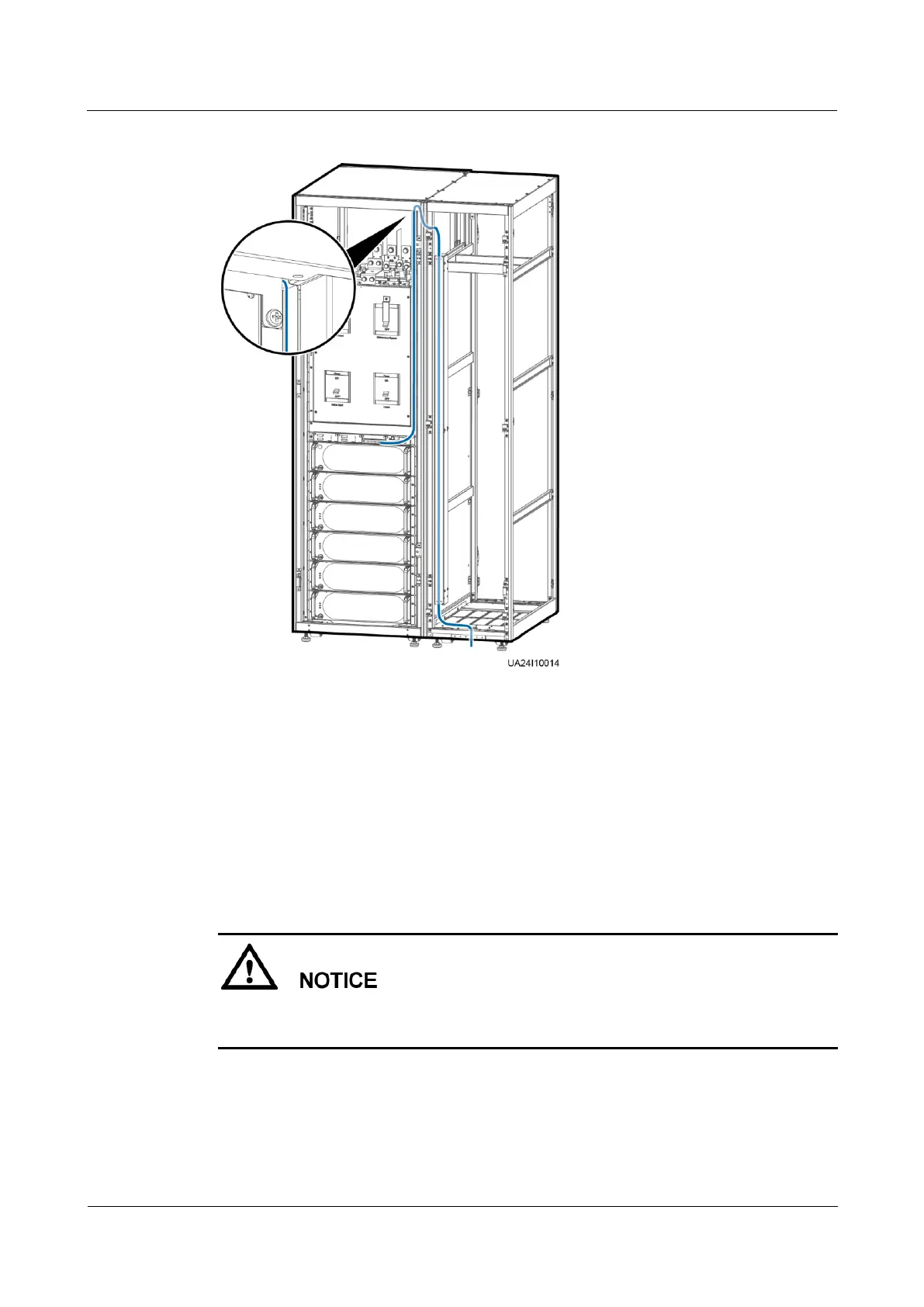

Figure 3-61 Signal cable
Step 14 Install the right cover of the UPS cabinet on the right of the cable entry cabinet, and install
other covers in the original positions.
----End
3.2.7 Routing Cables (UPS5000-E-300K-SM)
Context
Route cables for the UPS from inside out and from bottom up.
After routing cables, use firestop putty to fill in the gap between the cables and the cabinet.
Procedure
Step 1 Open the front door, and remove the cover from the power distribution subrack, as shown in
Figure 3-62. Figure 3-63 shows the positions of copper bars.
