UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

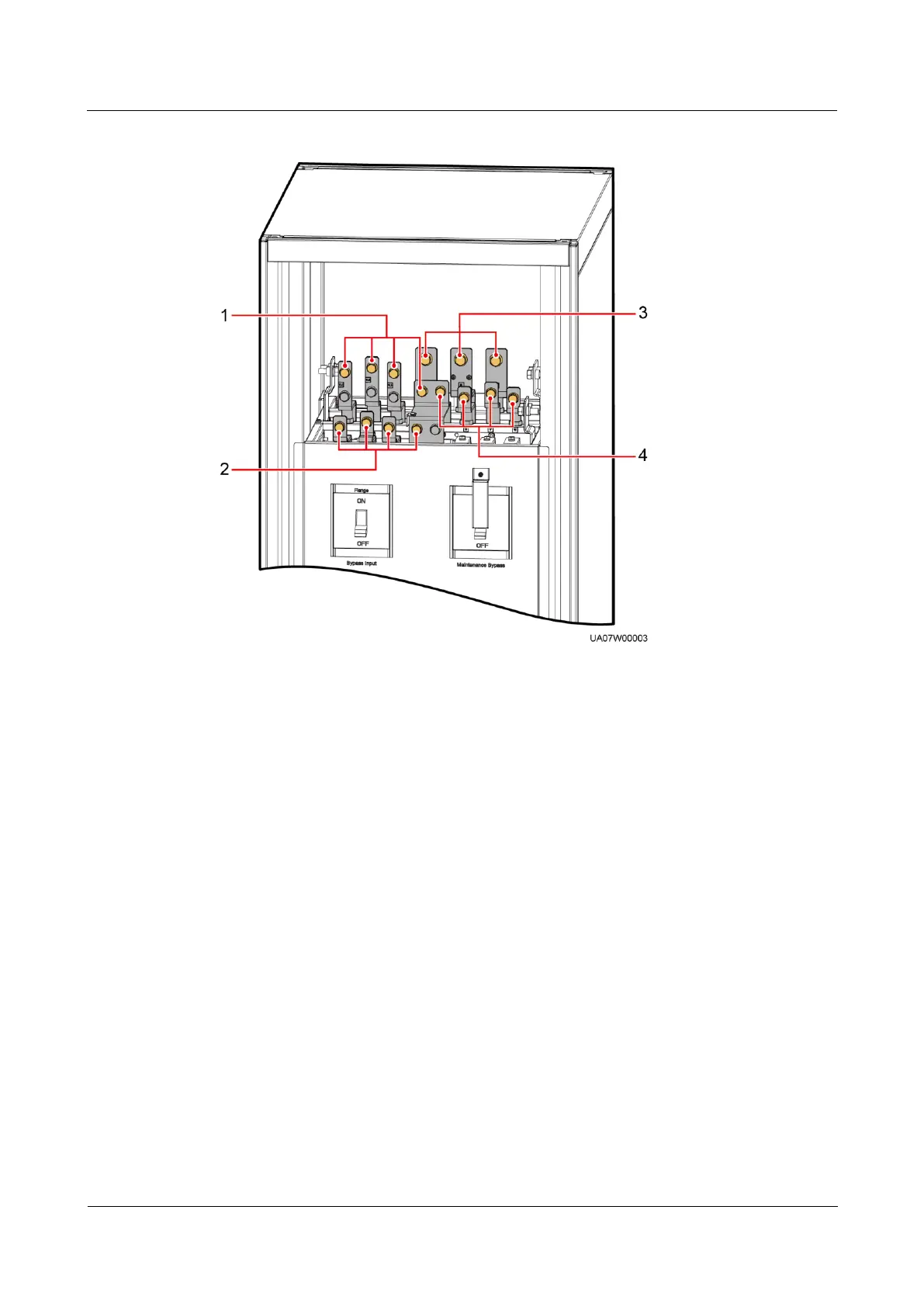

Figure 3-45 Copper bar positions
(1) Mains input terminals (1L1–1L3, N)
(2) Bypass input terminals (2L1–2L3, N)
(3) Battery input terminals (+, N, –)
(4) Output terminals (U, V, W, and N)
Step 2 Determine the cabling mode.
Remove small covers for routing cables.
Take out the cable cover for signal cables, and remove small covers from the top based
on site requirements, as shown in Figure 3-46.
