Human Humalyzer 2000 - Page 28

26 Rev. B
© OT , “©

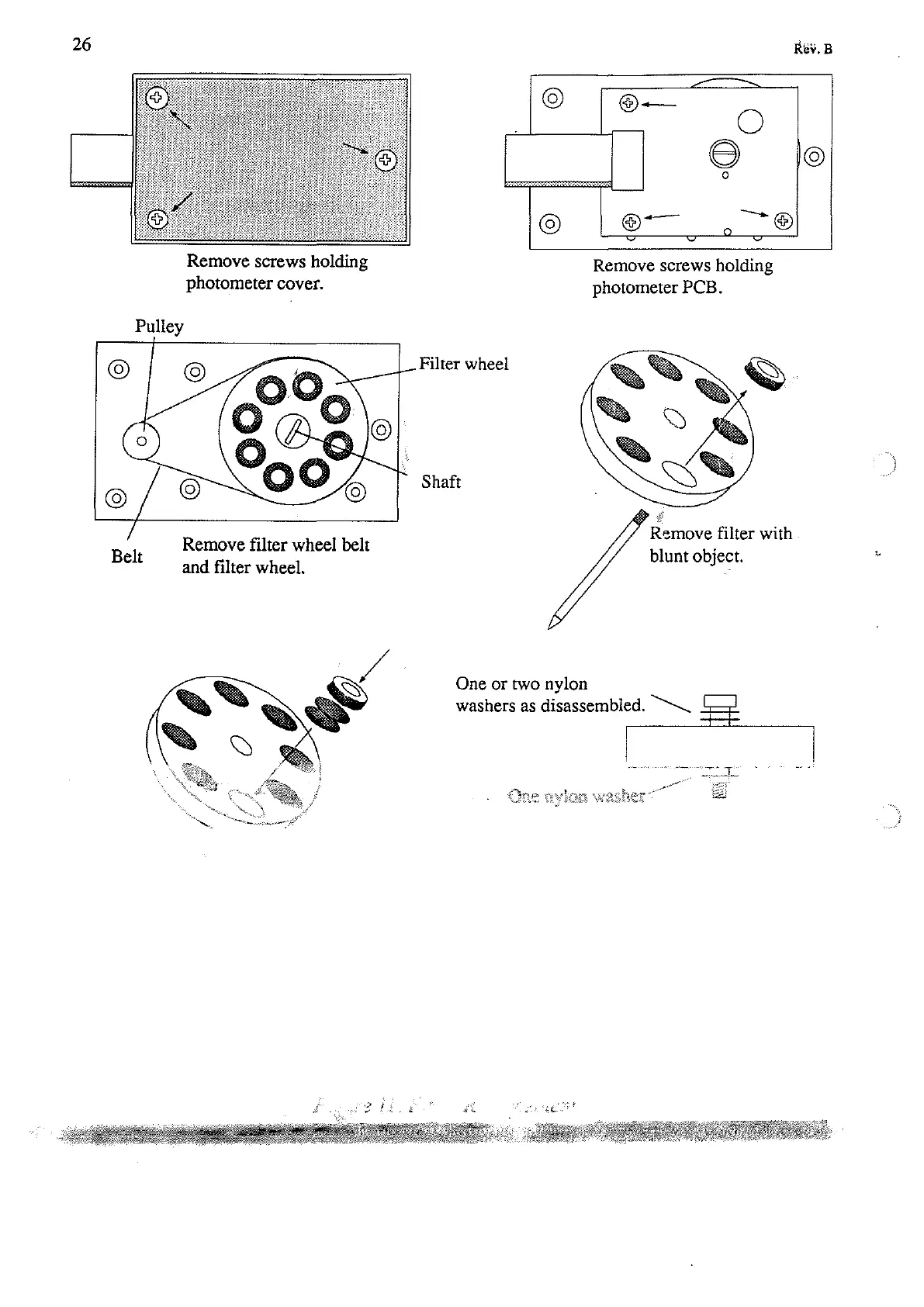

Remove screws holding Remove screws holding
photometer
cover.
photometer
PCB.
Pulley
| „Filter wheel
Г Shaft
É
/ Remove filter with
Remove filter wheel belt blunt object.
and filter wheel.
6
One or two nylon
washers as disassembled. —_
