Filter wheel position
Г Filter configuration
POS WAVELENGTH LOT# DATE
1 340 ЗУСЕ 58.8% 5/23/94
2 BLOCKED 5/23/94
3 BLOCKED 5/23/94
4 630/90D/115/170 4GDB 80.6% 5/23/94
3 580/90D/115/170 3ZCJ 65% 5/23/94
6 545/215 3WEF 74.4% 5/23/94
7 505/215/15D 4FLR 67.6% 5/23/94
8 405/115/90D 4HDL 83% 5/23/94
Interference filter lot number &
transmittance
Production date
Home hole
Index hole
Filter wheel positions

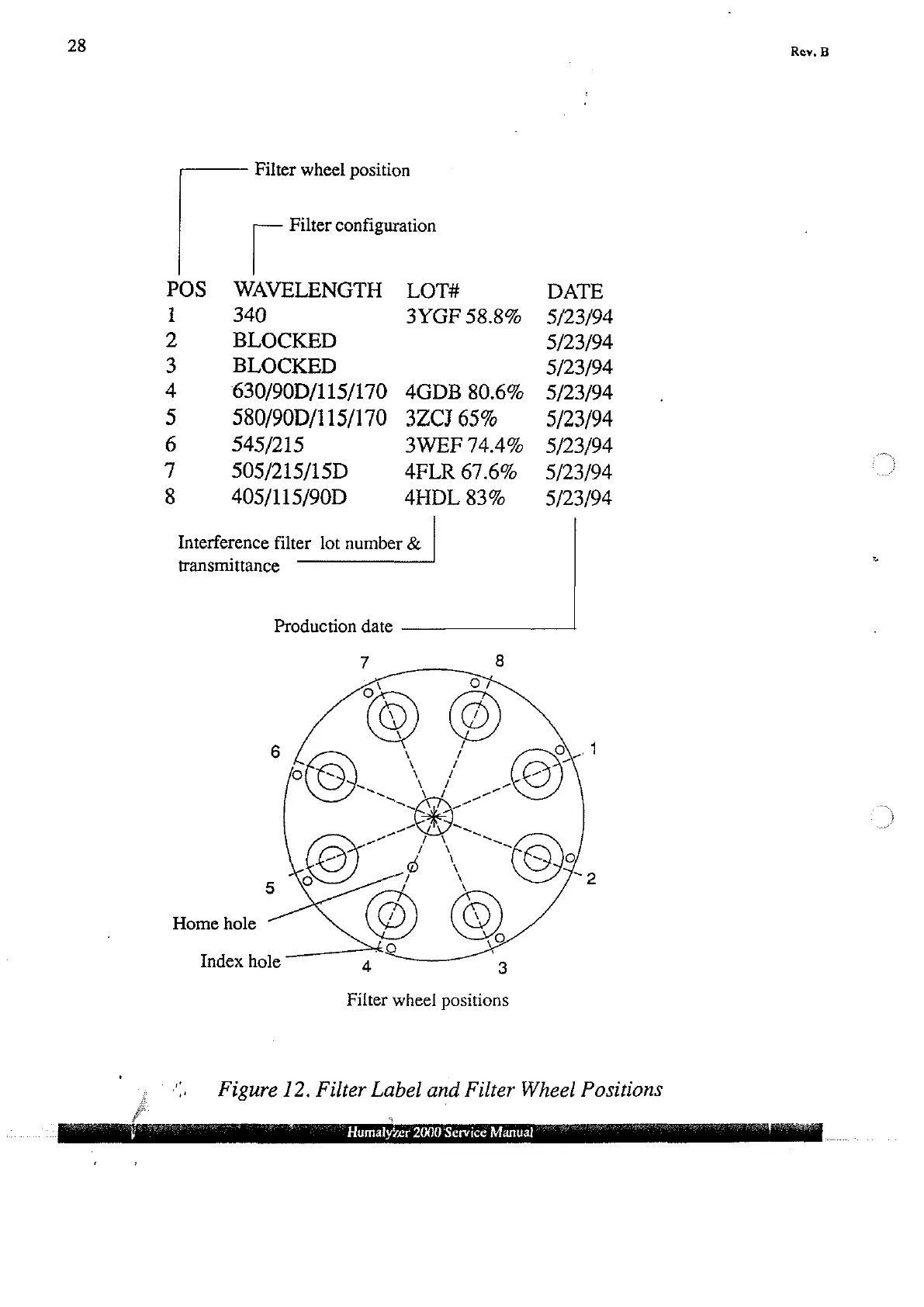

Figure 12. Filter Label and Filter Wheel Positions
