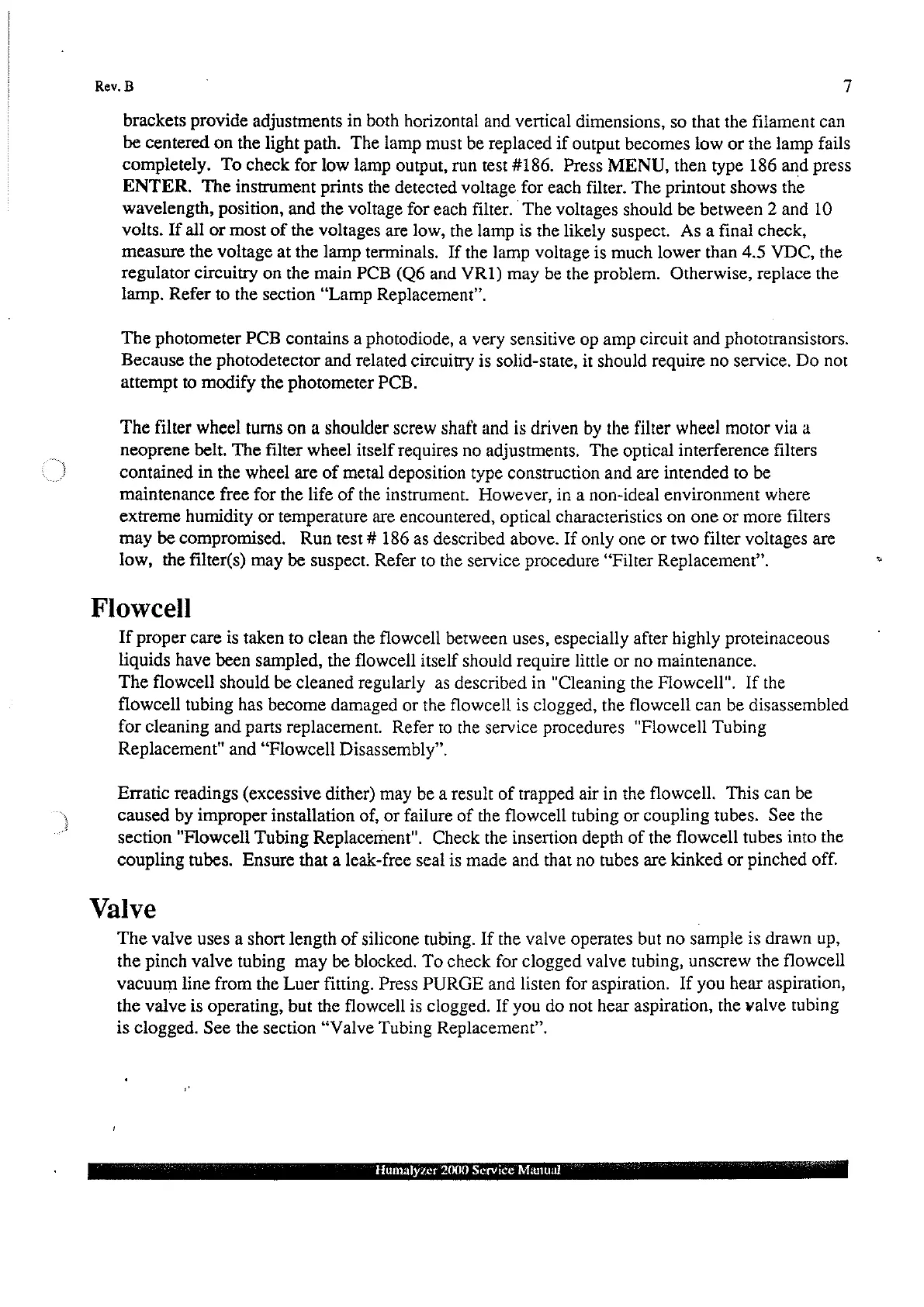

Rev.
B
'
7
brackets
provide
adjustments
in
both
horizontal
and
vertical
dimensions,
so
that the
filament
can
be
centered
on
the
light
path.
The
lamp
must
be
replaced
if
output
becomes
low
or
the
lamp
fails
completely.
To
check
for
low
lamp
output,
run
test
#186.
Press
MENU,
then
type
186
and
press
ENTER.
The
instrument
prints
the
detected
voltage
for
each
filter.
The
printout
shows
the
wavelength,
position,
and
the
voltage
for
each
filter.
The
voltages
should
be
between
2
and
10
volts.
If
all
or
most
of the
voltages
are
low,
the
lamp
is
the
likely
suspect.
As
a
final
check,
measure
the
voltage
at
the
lamp
terminals.
If
the
lamp
voltage
is
much
lower
than
4.5
VDC,
the
regulator
circuitry
on
the
main
PCB
(Q6
and
VR1)
may
be
the
problem.
Otherwise,
replace
the
lamp.
Refer
to
the
section
“Lamp
Replacement”.
The
photometer
PCB
contains
a
photodiode,
a
very sensitive
op
amp
circuit
and
phototransistors.
Because
the
photodetector
and
related
circuitry
is
solid-state,
it
should
require
no
service.
Do
not
attempt
to
modify
the
photometer
PCB.
The
filter
wheel
turns
on
a
shoulder
screw
shaft
and
is
driven
by
the
filter
wheel
motor
via
a
neoprene
belt.
The
filter
wheel
itself
requires
no
adjustments.
The
optical
interference
filters
contained
in
the
wheel
are
of
metal
deposition
type
construction
and
are
intended
to
be
maintenance
free
for the
life
of
the
instrument.
However,
in
a
non-ideal
environment
where
extreme
humidity
or
temperature
are
encountered,
optical
characteristics
on
one
or
more
filters
may
be
compromised.
Run
test
#
186
as
described
above.
If
only
one
or
two
filter
voltages
are
low,
the
filter(s)
may
be
suspect.
Refer
to
the
service
procedure
“Filter
Replacement”.
Flowcell
If
proper
care
is
taken
to
clean
the
flowcell
between
uses,
especially
after
highly
proteinaceous
liquids
have been
sampled,
the
flowcell
itself
should
require
little
or
no
maintenance.
The
flowcell
should
be
cleaned
regularly
as
described
in
"Cleaning
the
Flowcell".
If
the
flowcell
tubing
has
become
damaged
or
the
flowcell
is
clogged,
the
flowcell
can
be
disassembled
for
cleaning
and
parts
replacement.
Refer
to
the
service
procedures
“Flowcell
Tubing
Replacement"
and
“Flowcell
Disassembly”.
Erratic
readings
(excessive
dither)
may
be
a
result
of
trapped
air
in
the
flowcell.
This
can
be
caused
by
improper
installation
of,
or
failure
of
the
flowcell
tubing
or
coupling
tubes.
See
the
section
"Flowcell
Tubing
Replacement’.
Check
the
insertion
depth
of
the
flowcell
tubes
into
the
coupling
tubes.
Ensure
that
a
leak-free
seal
is
made
and
that
no
tubes
are
kinked
or
pinched
off.
Valve
|
The
valve
uses
a
short
length
of
silicone
tubing.
If
the
valve
operates
but
no
sample
is
drawn
up,
the
pinch
valve
tubing
may
be
blocked.
To
check
for
clogged
valve
tubing,
unscrew
the
flowcell
vacuum
line
from
the
Luer
fitting.
Press
PURGE
and
listen
for
aspiration.
If
you
hear
aspiration,
the
valve
is
operating,
but
the
flowcell
is
clogged.
If
you
do
not
hear
aspiration,
the
valve
tubing
is
clogged.
See
the
section
“Valve
Tubing
Replacement”.
Humalyzer
2000
Service
Manual
