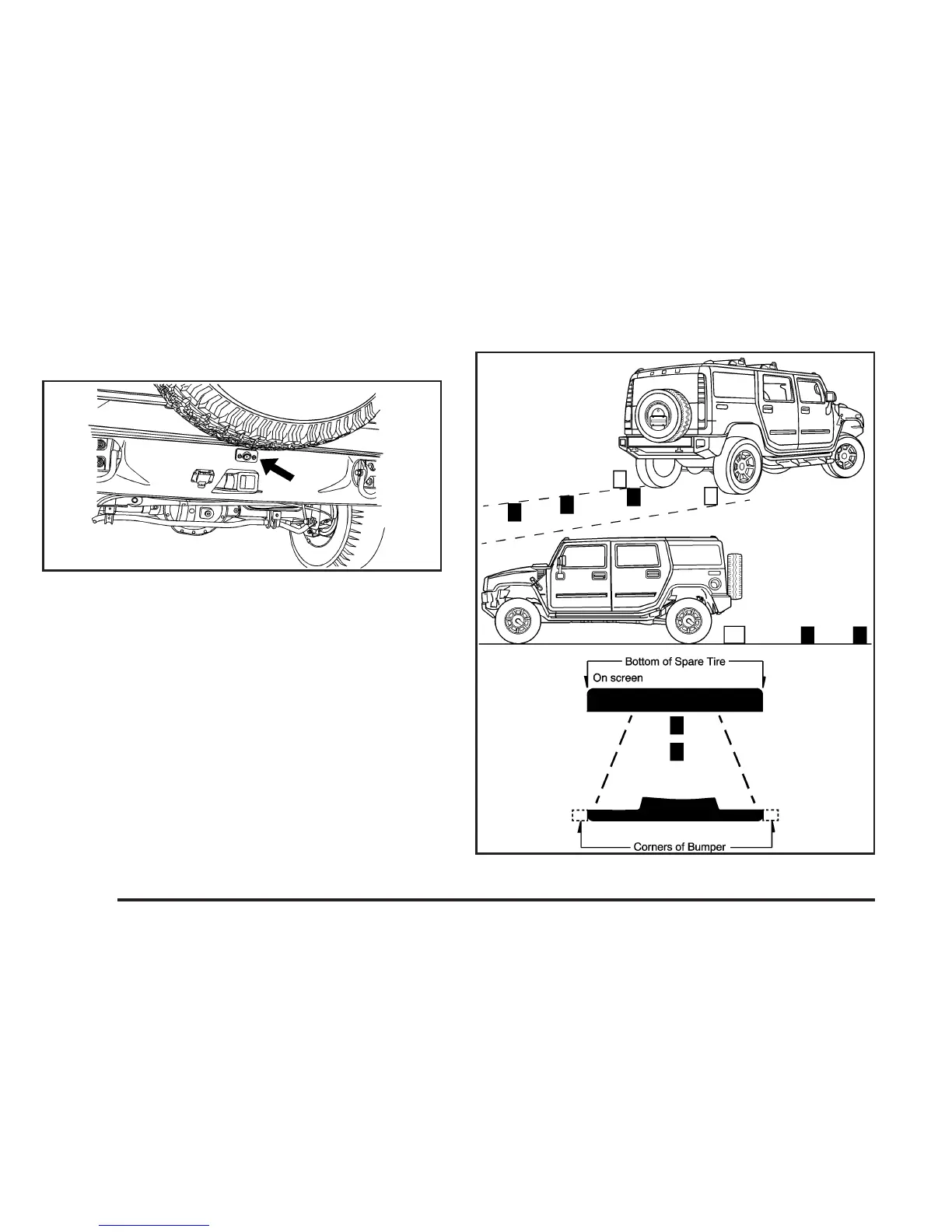

Rear Vision Camera Location
The image is provided by the camera located on the
rear bumper.
The camera uses a special lens. The distance of the
image that appears on the screen differs from the actual
distance. The area displayed by the camera is limited.
The camera does not display objects which are close
to either corner of the bumper or under the bumper.
The spare tire and carrier extends rearward of the rear
bumper. The area displayed on the screen may vary
according to vehicle orientation or road conditions.
The following illustration shows the field of view that
the camera provides.
2-52
