Trailer Wiring Harness
Heavy-Duty Trailer Wiring Harness
Package

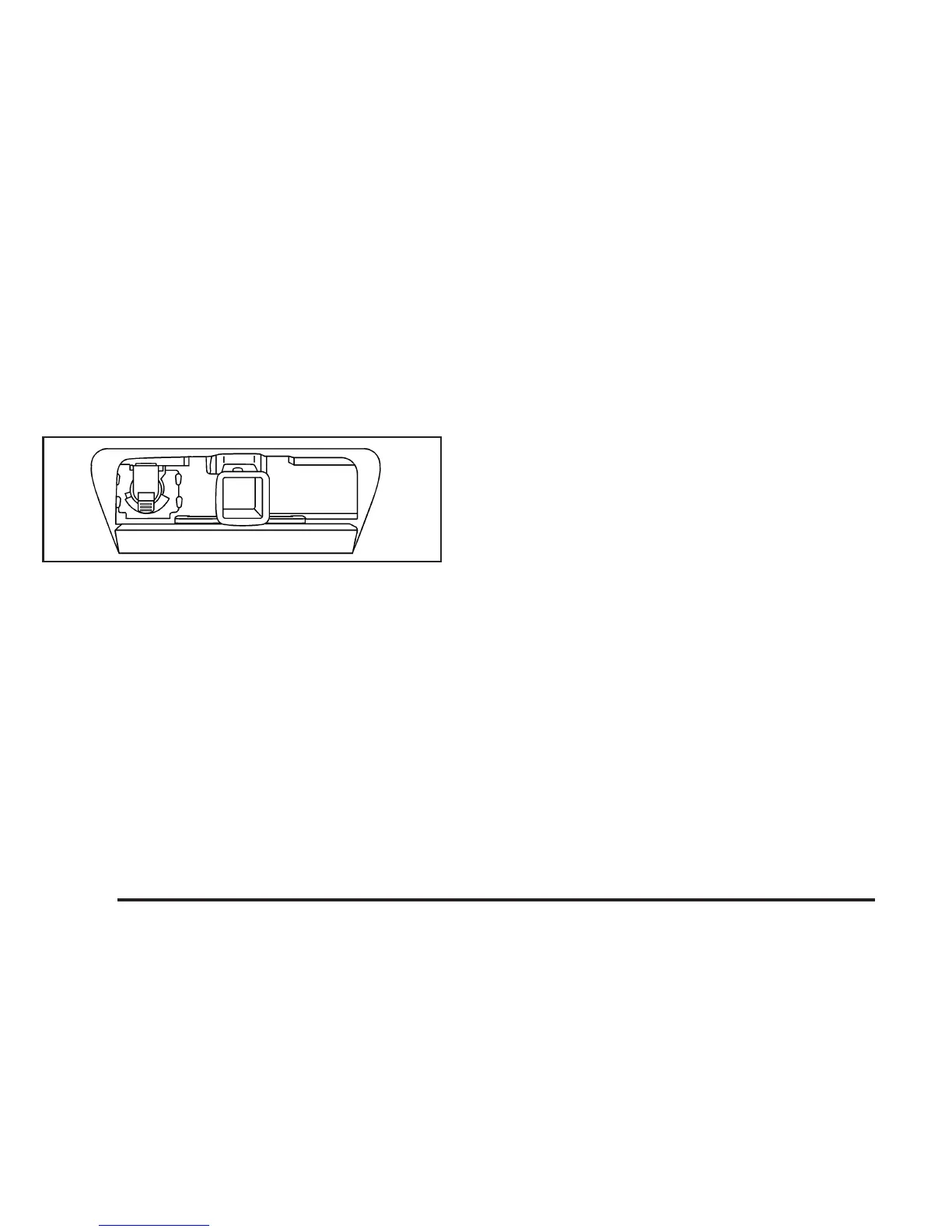

Your vehicle is equipped with the seven-wire trailer
towing harness. This harness with a seven-pin universal
trailer connector is attached to a bracket on the hitch
platform.
The seven-wire harness contains the following trailer
circuits:
• Yellow: Left Stop/Turn Signal
• Dark Green: Right Stop/Turn Signal
• Brown: Taillamps
• White: Ground
• Light Green: Back-up Lamps
• Red/Black: Battery Feed*
• Dark Blue: Trailer Brake*
*There is a location in the Underhood Fuse Block for
these circuits, but they are not connected. They should
be connected, and proper fuses installed, by your
dealer/retailer or a qualified service center.
If you are charging a remote (non-vehicle) battery, press
the Tow/Haul mode button located at the end of the shift
lever. This will boost the vehicle system voltage and
properly charge the battery.
4-66
