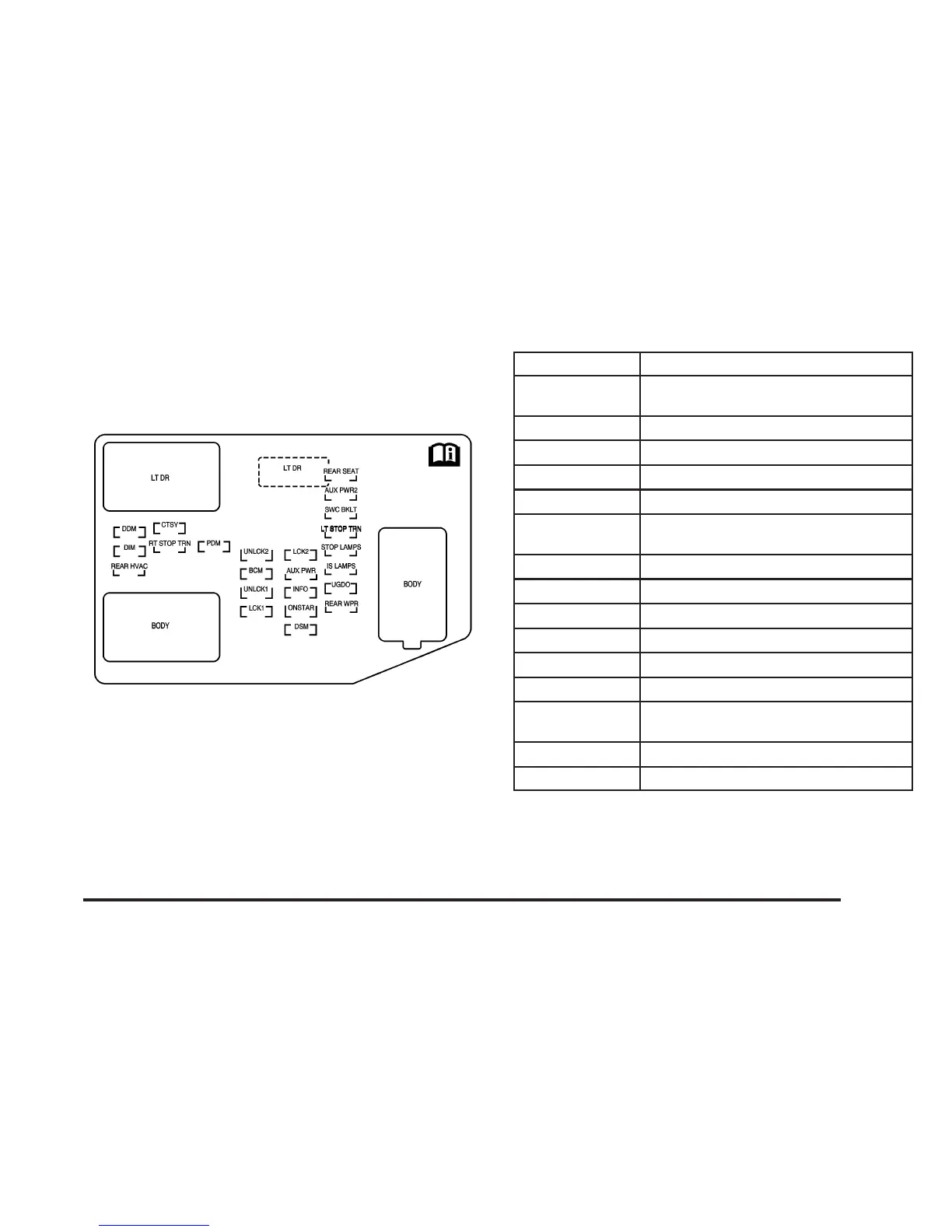

Instrument Panel Fuse Block
The instrument panel fuse block access door is located
on the driver side edge of the instrument panel.
Fuses Usage
LT DR
Driver Side Power Window Circuit
Breaker
REAR SEAT Rear Seats
AUX PWR2 Floor Console Power Outlets
SWC BKLT Steering Wheel Controls Backlight
DDM Driver Door Module
CTSY
Dome Lamps, Front Passenger Side
Turn Signal
LT STOP TRN Driver Side Turn Signal, Stoplamp
DIM Instrument Panel Back Lighting
RT STOP TRN Passenger Side Turn Signal
PDM Passenger Door Module
UNLCK2 Power Door Lock 2 (Unlock Feature)
LCK2 Power Door Lock 2 (Lock Feature)
STOP LAMPS
Stoplamps, Center-High Mounted
Stoplamp
REAR HVAC Rear Climate Controls
BCM Body Control Module
5-111
To Next Page
