Harness
Connector
Usage
BODY 2 Body Harness Connector 2
BODY 1 Body Harness Connector 1
BODY 3 Body Harness Connector 3
HEADLINER 3 Headliner Harness Connector 3
HEADLINER 2 Headliner Harness Connector 2
HEADLINER 1 Headliner Harness Connector 1
SEO/UPFITTER
Special Equipment Option Upfitter
Harness Connector
Circuit Breaker Usage
CB1
Passenger Side Power Window
Circuit Breaker
CB2 Passenger Seat Circuit Breaker
CB3 Driver Seat Circuit Breaker
CB4 Rear Sliding Window

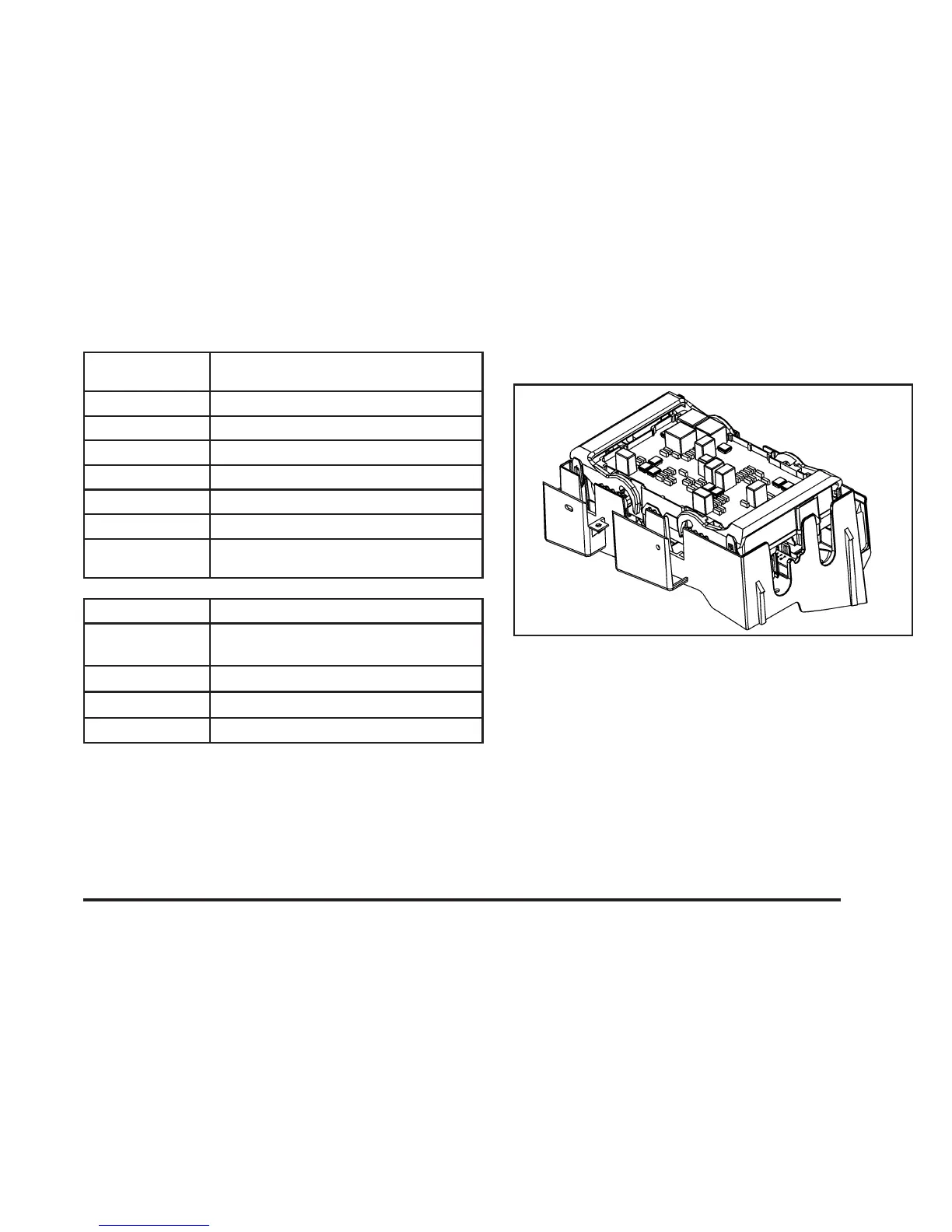

Underhood Fuse Block
The underhood fuse block in the engine compartment
is located on the driver side of the vehicle near the
battery. Lift the cover for access to the fuse/relay block.
Notice: Spilling liquid on any electrical components
on your vehicle may damage it. Always keep the
covers on any electrical component.
To remove fuses if you don’t have a fuse extractor,
hold the end of the fuse between your thumb and index
finger and pull straight out.
See Engine Compartment Overview on page 5-12 for
more information on its location.
5-113
