Fuses Usage
AUX PWR
Rear Cargo Accessory Power
Outlets
IS LPS Interior Lamps
UNLCK1 Power Door Lock 1 (Unlock Feature)
INFO
Infotainment System, Remote
Keyless Entry System
UGDO Universal Home Remote System
LCK1 Power Door Lock 1 (Lock Feature)
ONSTAR OnStar
®
REAR WPR Rear Wiper
DSM Driver Seat Module
Harness
Connector
Usage
LT DR Driver Door Harness Connection
BODY Harness Connector
BODY Harness Connector

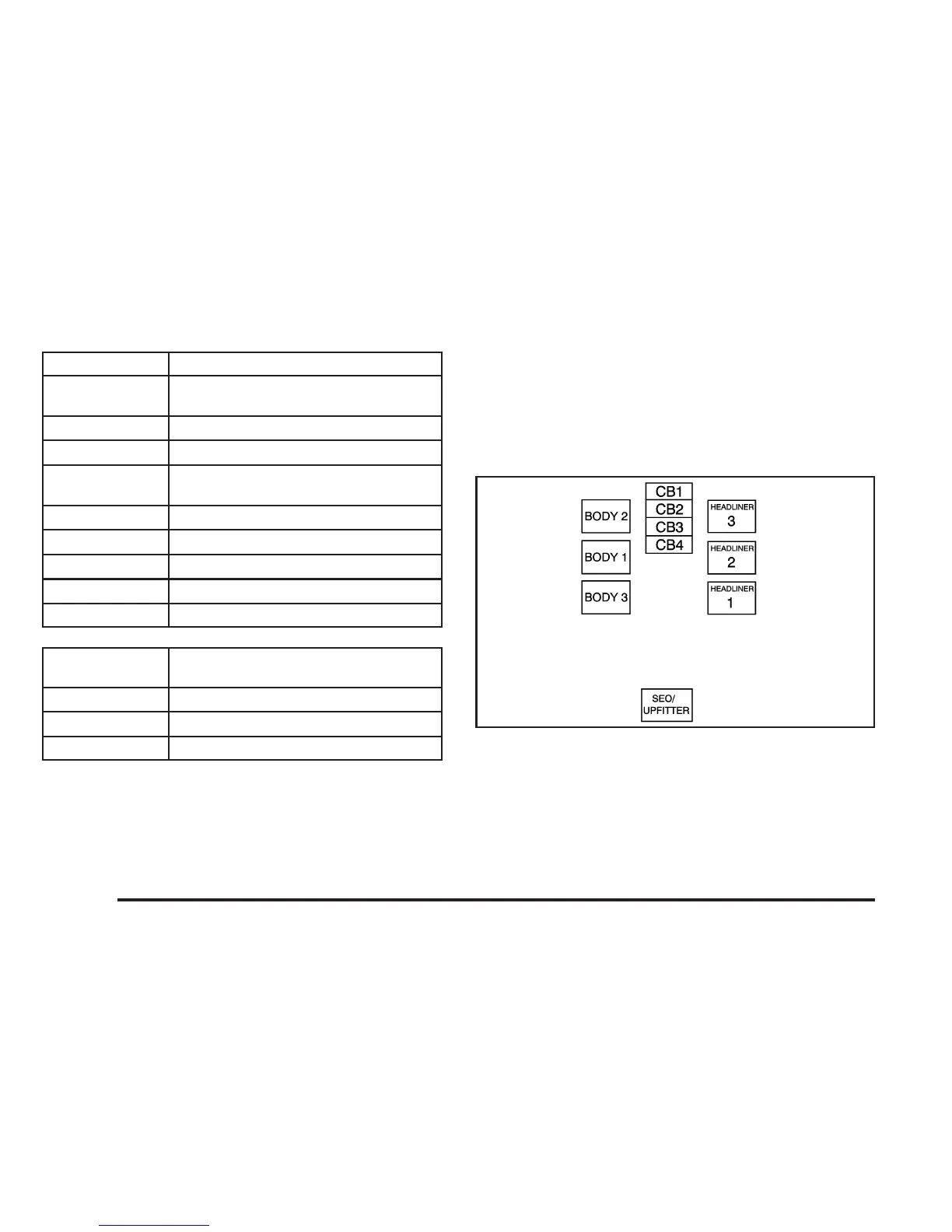

Center Instrument Panel Fuse Block
The center instrument panel fuse block is located
underneath the instrument panel, to the left of the
steering column.
Top View
5-112
