Removing the Seat
To remove the seat, do the following:
1. Open the liftgate.
Notice: Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.

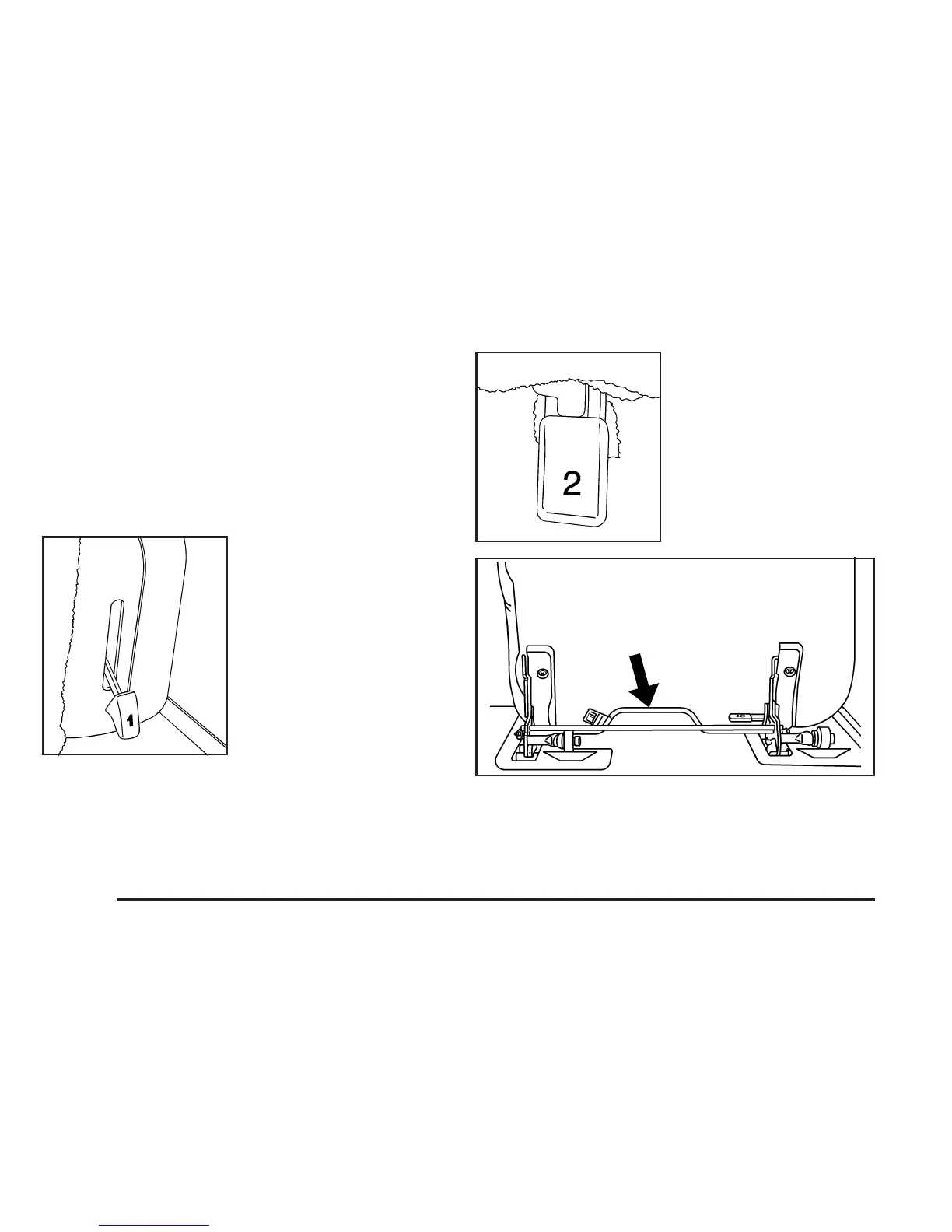

2. Fold the seatback
forward onto the seat
cushion by using
the lever labeled 1.
The seat cannot be
removed unless
the seatback is folded.
3. To unlatch the rear of
the seat from the floor,
pull up on the release
lever labeled 2, at
the rear of the seat,
and lift the rear of
the seat up from
the floor.
4. Squeeze the release handle while pulling the seat
out of the slots on the floor.
5. While holding the rear of the seat up, roll the seat
out of the vehicle.
1-14
