Humminbird 787C2 - Side Beam View - Classic Layout

28

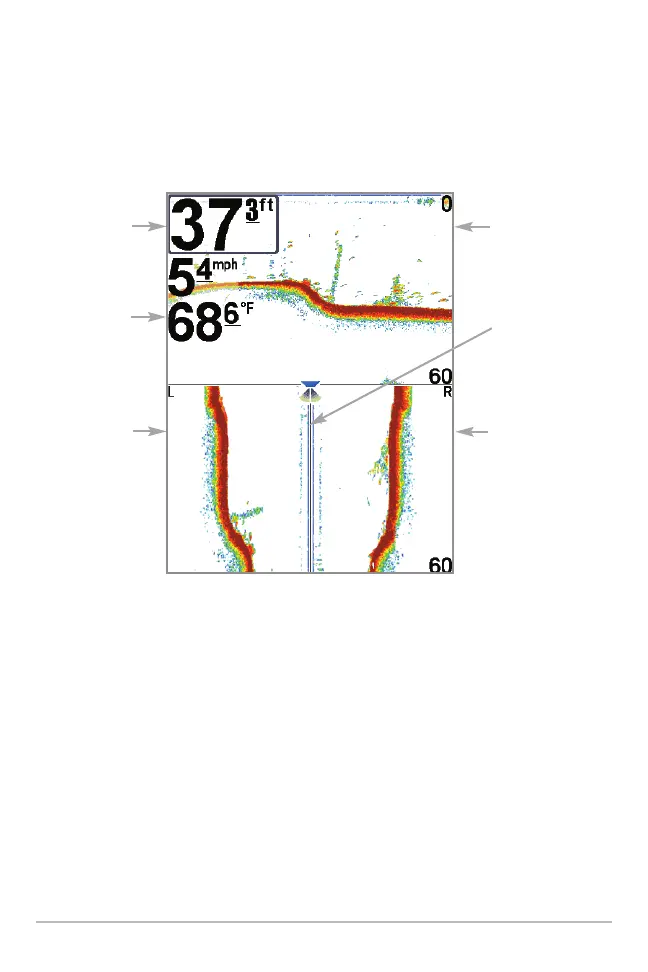

Classic layout: The top portion of the display presents a historical log of sonar
returns from the 200 kHz down-looking sonar beam. New information in the
down beam panel scrolls from right to left. The bottom portion of the display
presents a historical log of sonar returns from the 455 kHz right- and left-looking
sonar beams. New information appears at the top, and scrolls down the display.
Side Beam View, Classic Layout
Depth
Temperature
Left Side 455
kHz Sonar
History Window
Right Side
455 kHz
Sonar
History
Window
200 kHz
Sonar
History
Window
Water Surface Line
for 455 kHz
Sonar History
Windows
