Sonar Menu Tab

Press the MENU key twice to access the Main Menu System and

then press the RIGHT Cursor key to select the Sonar tab.

NOTE: Menu choices will vary depending on system settings such as

whether the unit is set for Advanced User mode or what transducer

is currently selected.

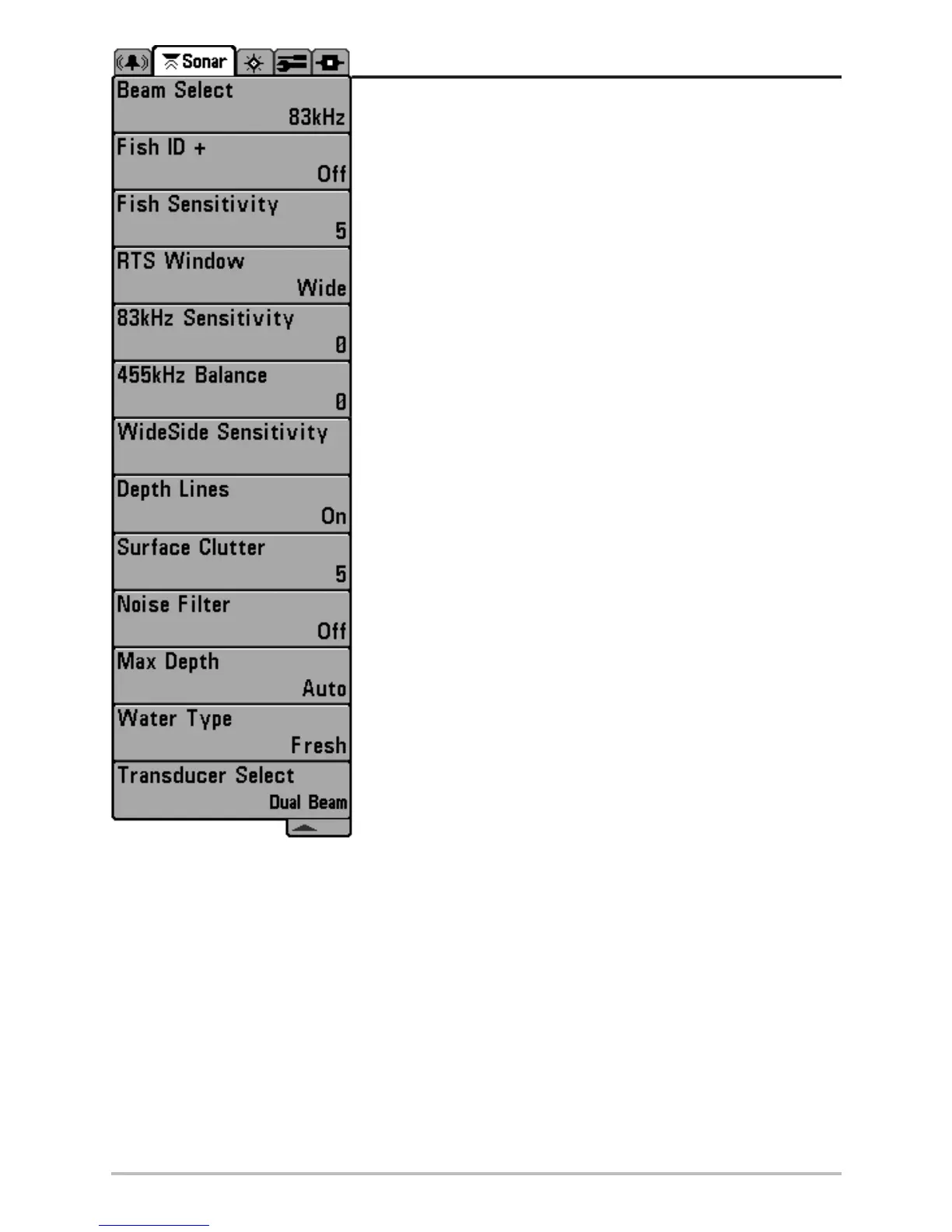

Sonar Menu
