Hunter GSP9200 Series - Laser Weight Locators

4.11 BDC Laser Adhesive Weight Locator
Servo-Activated Laser automatically locates BDC to aid in fast adhesive weight
positioning.

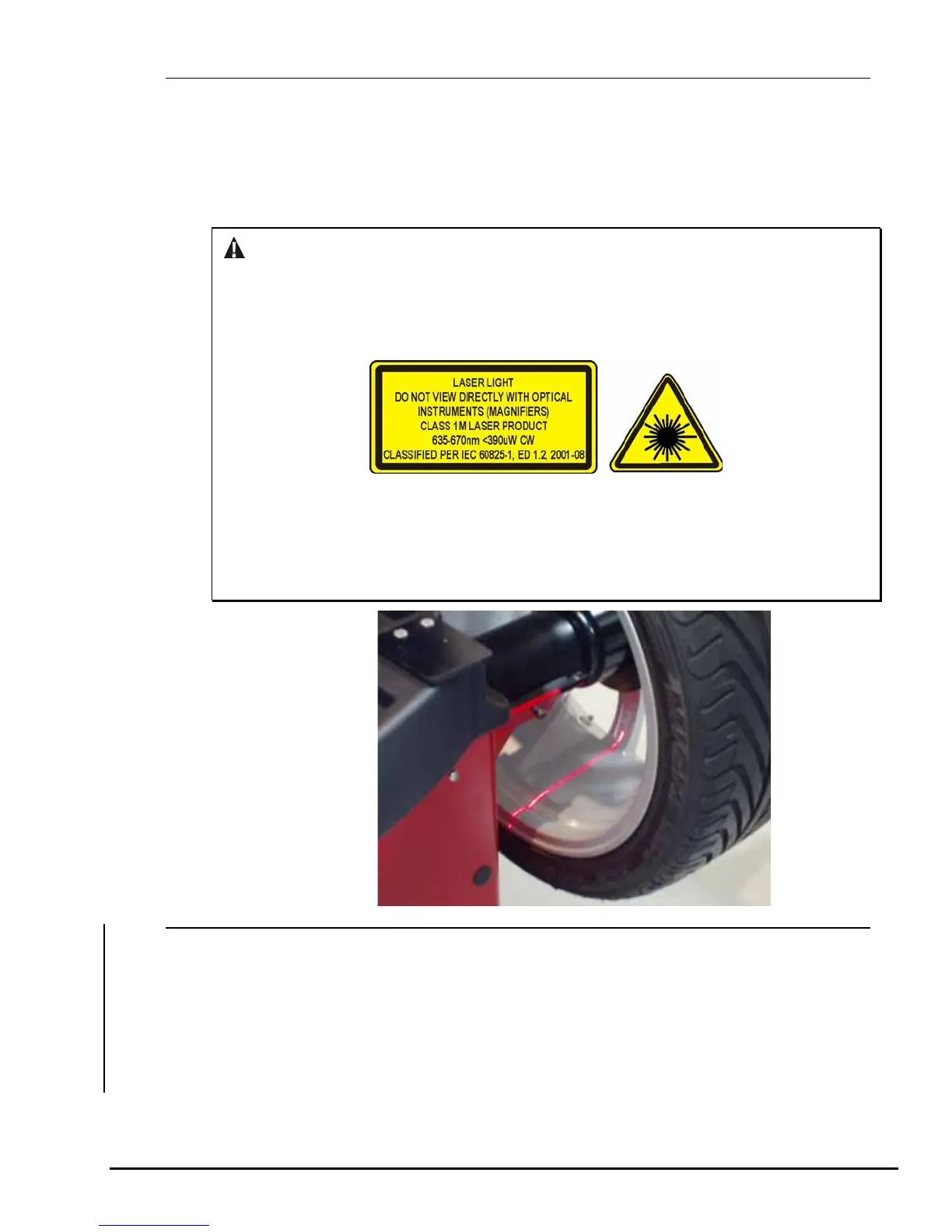

The BDC laser locator automatically displays a vivid line at bottom dead center after
a wheel has been spun. The laser turns off when the wheel is spun again.
CAUTION: Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
This Laser Product is designated as Class 1M during all procedures of
operation.
Never look directly into the laser. Doing so may cause serious injury.
Operation accessible radiation fields:
Wavelength 635-660nm
Laser Power for Classification <390uW via 7mm aperture
Beam Diameter <5mm at aperture
Divergence <1.5mrad x <2rad
Transverse Beam Mode TEM00
4.12 Optional HammerHead
™
TDC Laser Adhesive Weight Locator
The balancer will find the TDC for the left or right weight plane if “Servo-Stop” is
enabled. “Servo-Stop” will hold the wheel in the TDC position while the servo-
activated laser automatically locates TDC to aid in fast clip-on weight positioning.
The HammerHead™ TDC Laser System automatically displays a vivid line at top
dead center after a wheel has been spun. The laser turns “off” when the wheel is
spun again.
GSP9200 Series Wheel Balancer Operation Instructions 4. Balancing Features and Options
