20 – English
SAFETY EQUIPMENT
Assembly 334T, 338XPT

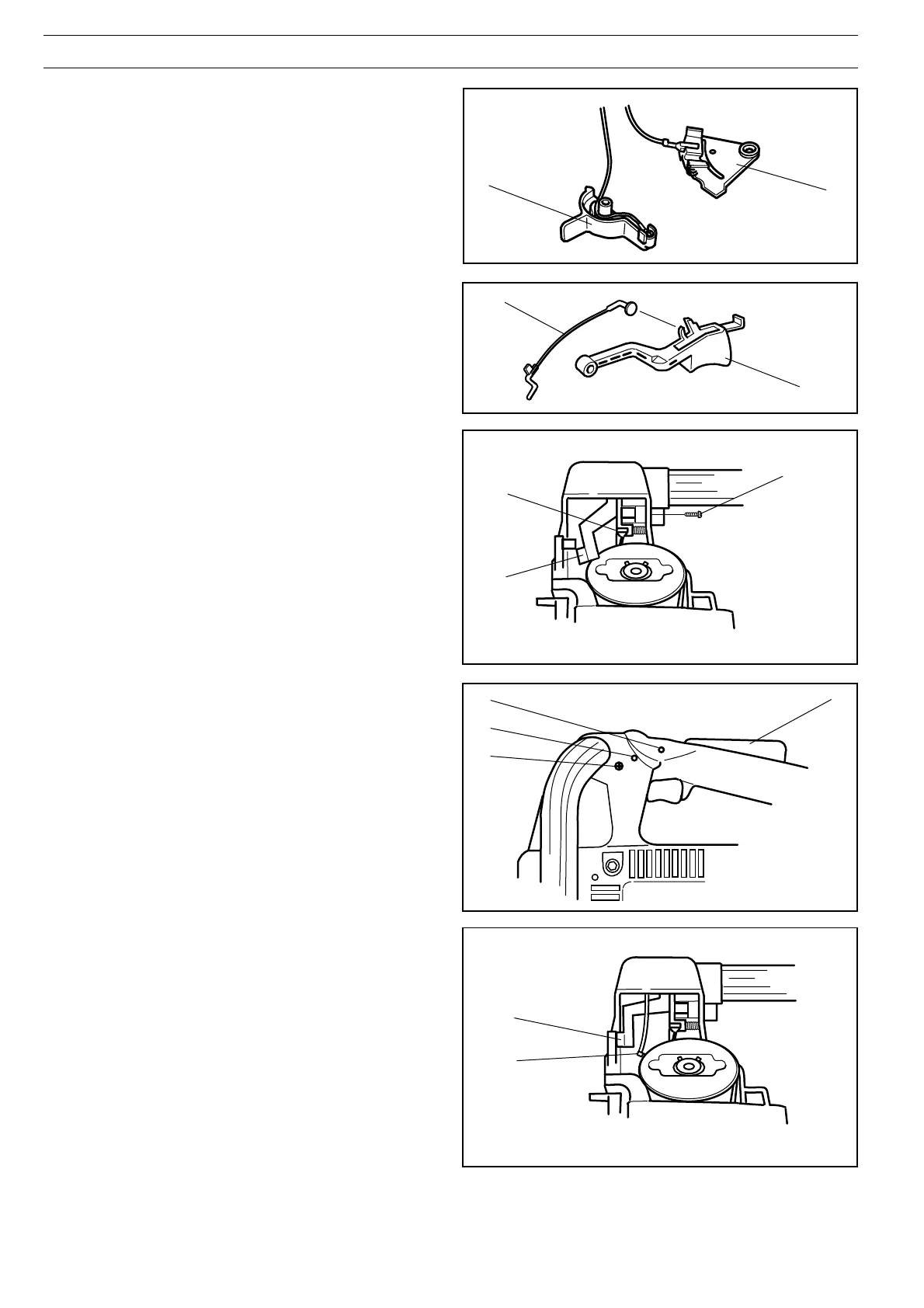

Assemble the components as follows:
1. Assemble the electrical leads to the lock plate (E) and
choke lever/start control (J).
I
H
J
E
F
G
D
E
F
6. Hook on the throttle’s bearing (F). Use a screwdriver to fit
the choke rod (G) on the carburettor.
7. Fit the clutch cover and carburettor cover. Adjust the chain
tension, see the Operator Guide. Tighten the nuts on the
clutch cover to 15 Nm.
8. Check the stop function by starting the chain saw and
establishing that it stops when the stop button is moved to
the stop position. See the Operator Guide.
5. Fit the pin from the right (C). Now press down the throttle
lock (A). Check that the lock’s locking arm enters the cut-
out in the throttle and fit the pin (B).
3. Using long-nose pliers assemble the lock plate (E). Bolt in
position using bolt (D).
4. Slide up the choke lever/start control (J).
2. Slide in the throttle (H). At the same time, fit the throttle rod
(I) on the throttle. Do not hook on the bearing (F) yet.
