8. Lift off the drive belt (1). Now pull out the
split pin (2).
9. Pull the frame forwards and refit the pin.
10. Grasp the cutting unit’s front edge, pull
out and lift up into the service position.
If the cylindrical bolt, which is now
holding the cutting unit is removed, the
cutting unit can be lifted off.
Releasing the Service Position
To leave the service position, reverse the
procedures set out in “Placing in the service
position”. Make sure that the cutting unit’s
tongue (3) enters the loop correctly on the
underside of the machine.
2
1

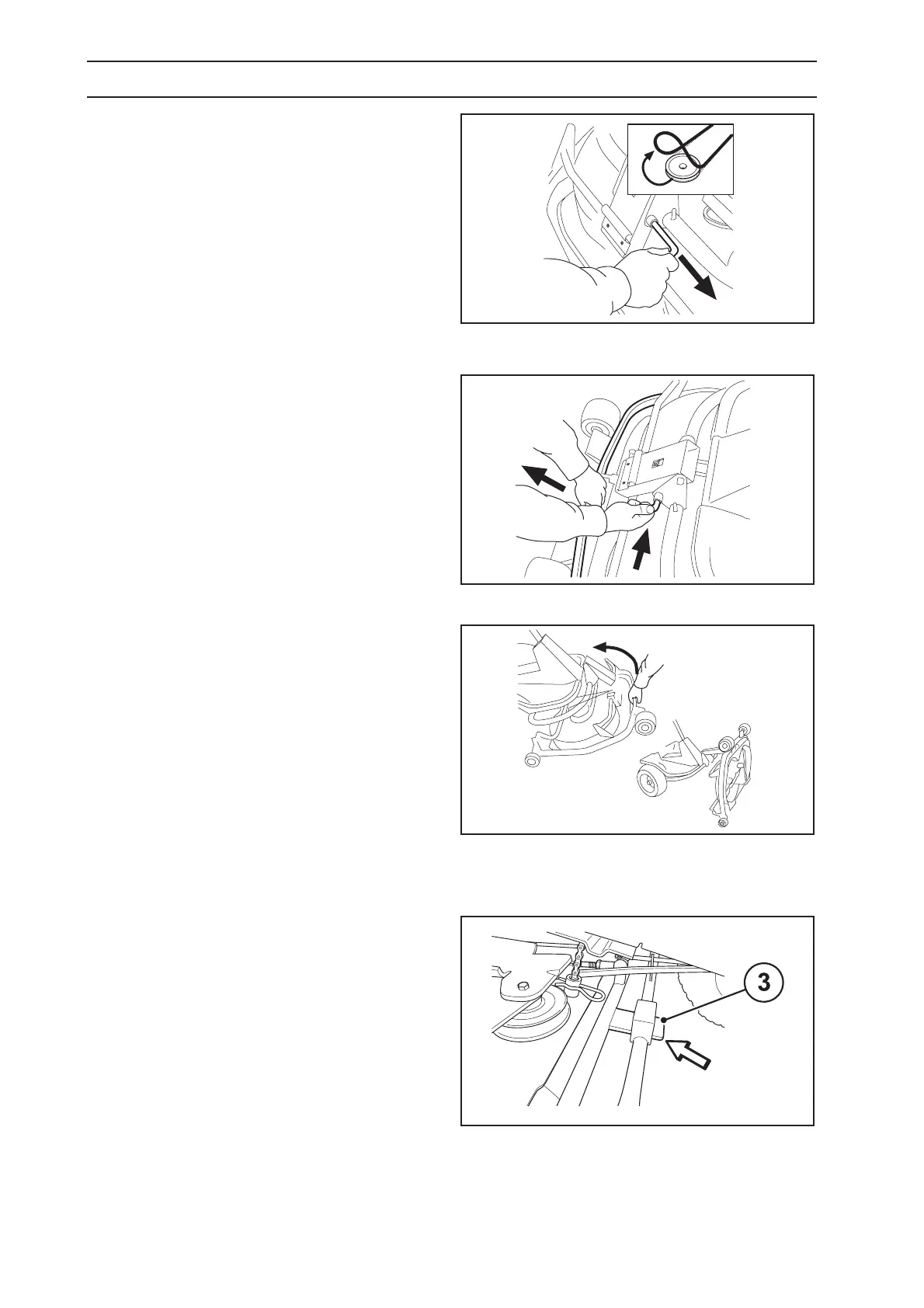

6017-225
Drive belt and split pin
6017-226
Refit the split pin
6017-227
Service position
8009-595
Tongue in the loop
