REPAIR INSTRUCTIONS

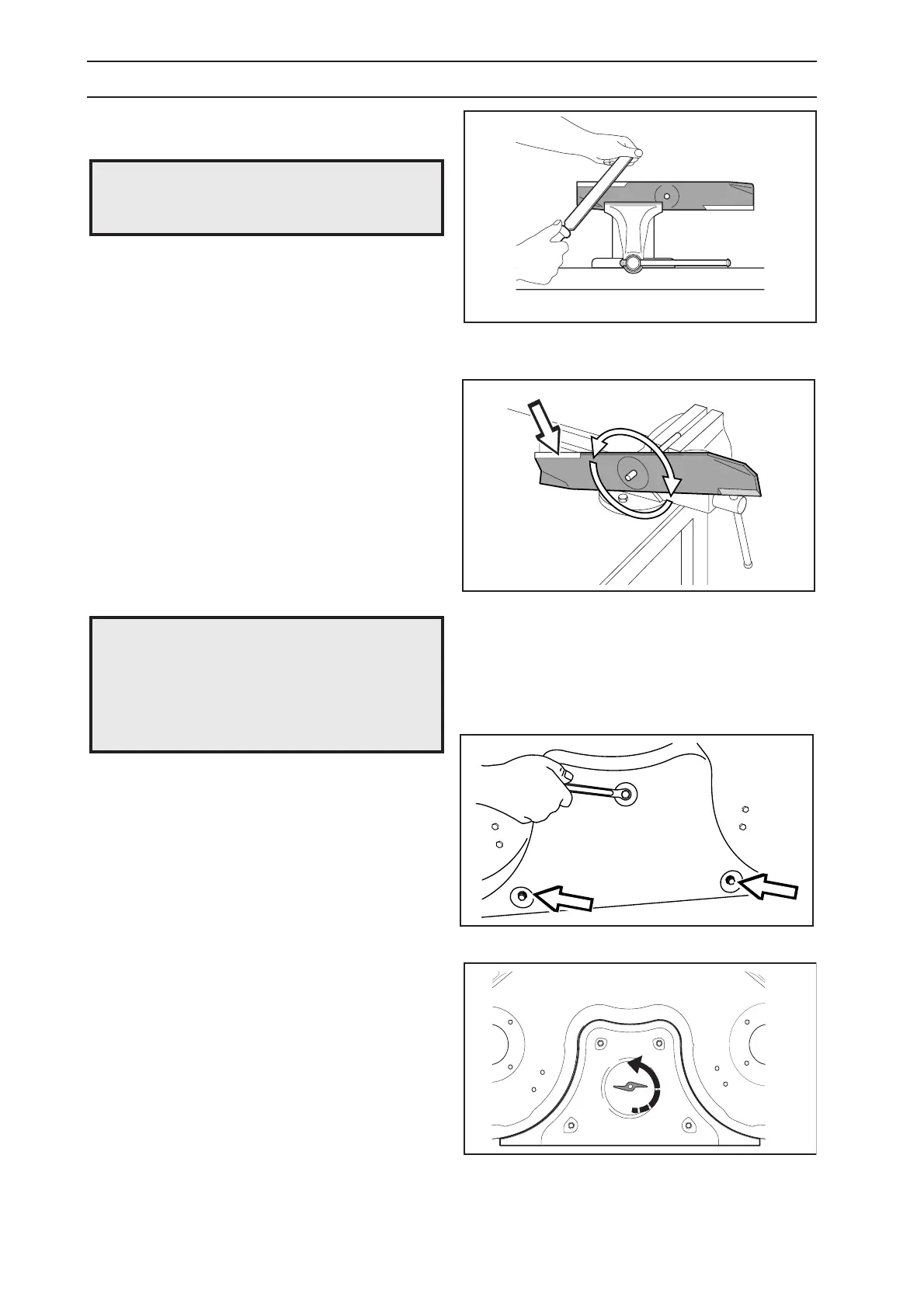

Sharpening and Balancing Blades
1. Remove the blades as described in the
previous section.
2. Fix the blade in a vice and sharpen it
with a sharpening file.
3. Balance the blade by:
• Attaching a punch, e.g. horizontally in
the vice as shown.
• Thread the hole in the centre of the
blade over the punch and make sure that
the blade is equally weighted. The
illustration shows a blade that needs to
be adjusted, it must be filed more so as
to attain the right balance (at the arrow).
• Fit in the reverse order.
Removing the BioClip plug (Combi)
To change a Combi unit from the BioClip
function to a cutting unit with rear ejection,
remove the BioClip plug, which is located
under the unit, attached with three screws.
1. Put the unit in service position, see
page 106.
2. Combi 103, 112
Remove the three screws holding the
BioClip plug, and remove the plug.
3. Combi 103, 112
Tip: Fit three full-thread screws M8 x 15 mm
in the screw holes to protect the threads.
4. Combi 94
Remove the wing nut and BioClip-plug.
5. Return the unit to the normal position.
Fit the BioClip plug in the reverse order.
6012-088
Sharpening blades
WARNING!
Protect your hands with gloves
when working with the blades.
!
6012-089
Balancing blades
WARNING!
If the blades are cracked, whether
caused by poor repair or other
damage, they could break while
being used. The risk increases if
the blades are poorly balanced.
!
8009-289
Removing the BioClip Plug Combi 103, Combi 112
6021-023
Removing the BioClip Plug Combi 94
